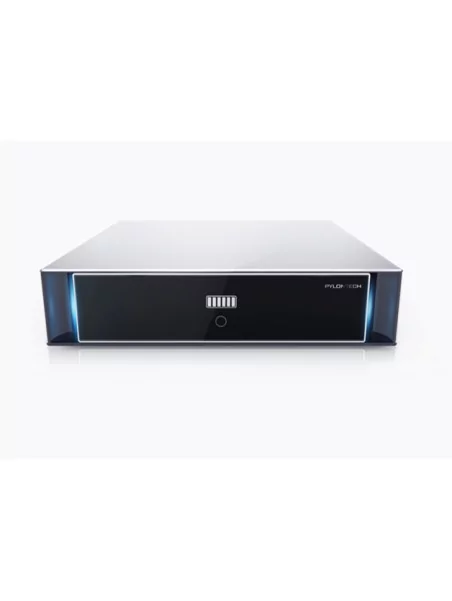

Battery Lithium Pylontech Phantom-S

Pylontech

2 375,30 € tax incl.

More than 4,500 90% of discharge cycles
Delivers up to 10Kw
Modular design to easily increase capacity

Check the current on stock Pylontech + 50

More details

More info

 No maintenance and easy use

Latest model of battery HESS of Pylontech

This Lithium battery model already supplies more than 5,000 homes. An exceptional life, quality energy. The design facilitates the installation and expansion of your system. This battery reflects all the real requirements of end users and the highest technical capabilities of Pylontech.


Benefits



  • More than 6,000 cycles to 80% of discharge
  • Delivers more 5Kw per module
  • Modular design to easily increase capacity
  • Compatible with most of the converters
  • Compact and easy storage
  • Safety Cert.tuv, UN38.3, TLC












SuperLock connectors for easy, secure and reliable connection


Service life depending on the depth of discharge






Specifications

                         PARAMETERSPYLONTECH PHANTOM-S
NominalNominal Voltage (V)48
PhysicalNominal Capacity (Ah)50
ElectricalDimensions (mm)440 * 410 * 89
OthersWeight (Kg)24
 Discharge Voltage (V)45 ~ 54
 Charge Voltage (V)52.5 ~ 54
 Peak Discharge Power (kW)5kW@1Min
 Peak load Power (kW)5kW@1Min
 CommunicationRS232, RS485, CAN
 Temperature0℃ ~ 50℃
-10℃ ~ 50℃
 Shelf Temperature-20℃ ~ 60℃
 CertificationTÜV / THIS / UN38.3 / TLC
 Life10 + Years (25℃/77℉)
 Number of charging cycles> 6000 (25℃, 80% DoD)

Specifications

TechnologyLithium
Battery capacity2,4Kwh
Weight21.2 kg
