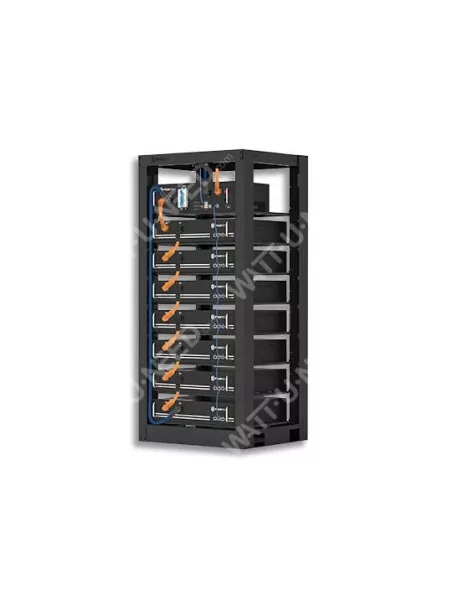

Pylontech lithium battery high voltage Powercube - X 1 series

5 143,50 € tax incl.

Options

Pylontech lithium battery high voltage Powercube - X 1 power series 7.2 Kwh 14, 4V to 16.8 336V Kwh with rack option.

You have the possibility to adapt your system in the options to the right.

PowerCube - X 1 is a system of battery storage high voltage based on a battery lithium iron phosphate. It is one of the new energy storage products developed and produced by Pylontech, it can be used for support a reliable power supply for various types of equipment and systems.

PowerCube - X 1 is especially suitable for scenes of application of high power, space installation limited and long life cycle.



More details

More info

Pylontech lithium battery high voltage. Ability to 7.2 Kwh to 16.8 Kwh 336V 144V

You have the possibility to adapt your system in the options to the right.

The Powercube series with its modular design concept products, offer the most flexibility for rack-mounted constructions (as an option).

Supporting services such as emergency power, new energy, energy transfer, adaptation of reduced load stabilizer, stabilizer of network and frequency (in development) response.
With the great experience of Pylontech in the BESS (battery power system), you will have a reliable system in all self-service applications.



PowerCube - X 1 is a system of storage of battery high voltage based on a battery lithium iron phosphate. It is one of the new energy storage products developed and produced by Pylontech.
It can be used to support a reliable power supply for various types of equipment and systems. It is especially suitable for application of high power scenes, an installation space limited, a limited load capacity and long life cycle.



The PowerCube - X 1 has 2 levels of GBS (battery management system), which can manage and monitor information on cells, including voltage, current and temperature.
In addition, BMS can balance cells that is loading and unloading to extend the life of the cycle. Several batteries can be connected in parallel to increase the capacity and power at the same time to get more capacity and power requirements longer support.


Features



  • The whole of the module is non-toxic, non polluting and environmentally friendly;
  • The cathode material is made from LiFePO4 with safety performance and a long life.
  • The management system (BMS) has the functions of protection, including excessive discharge battery, overload, the over-current and high temperatures / low;
  • The system can automatically manage the current and voltage of load and discharge of each cell;
  • Flexible configuration, multiple battery modules can be in series to increase the voltage and capacity.
  • The mode adopted self-cooling quickly reduces the total noise of the system;
  • No memory effect, excellent charge and discharge performance shallow;
  • The range of working temperature is 10 ℃ to 40 ℃, with an excellent performance of discharge and a cyclic life;
  • Minimum quantity battery lithium Pylontech H48050: 3 pcs.

Ability of the module

Battery quantity34567
Nominal capacity (kWh)7.29.61214.416.8
Voltage range (V)132.7/162177/216221.2/270265.5/324309.7/378
Dimension (L * P * H * H)60 * 38 * 7060 * 38 * 8760 * 38 * 10460 * 38 * 12160 * 38 * 138
Depth of discharge90.00%
Load / discharge14.8 (recommended)
Current (A)25 (Max.)
CommunicationCAN, RS485
Protection classIP 55
Operating temperature (° C)0-50
Storage temperature (° C)-20-60
Nominal service life15 + years (25 C/77F °)
Authentication levelIEC 62619/CE/UN38.3

 Pylontech H48050 lithium battery

Features



• Chain of vertical integration;
• Modular design with different densities, suitable for all scenarios;
• Flexible voltage range 150VDC to 1000VDC;
• Design of three-layer management system offers the highest reliability;
• System configuration to rack or in container;
• Minimum quantity battery lithium Pylontech H48050: 3 pcs.



ModelH48050
Capacity (kWh)2.40
Rated voltage (Vdc)48
Rated capacity (AH)50
Voltage range (Vdc)45 ~ 54
Depth of discharge80 %(10~90%)
Dimension(L*P*H,mm)442 * 390 * 100
CommunicationRS485/CAN
Protection classIP20
Weight24
Life expectancy of the device10 + years
Life cycle of the operation4000
Operating temperature0 ~ 50℃
Storage temperature-20 ~ 60℃
Product certificateTUV (IEC62619)





SC0500 - 100S battery management system



ModelSC0500 - 100S
Related productX 1
Operating voltage of the controller100/430Vdc
The system VOltage operation100/430Vdc
Load (Max.) current (A)100
Discharge voltage (Vdc)100/430
Discharge (Max.) current (A)100
Auto - Power consumption (W)8
Dimensions (W x D x H, mm)442 * 390 * 132
CommunicationRS485/CAN
Protection classIP20
Weight (Kg)8.2
Life expectancy of the device15 years
Operating temperature -20 / 65 ° C
Storage temperature-40 / 80 ° C
Product certificateTÜV, CE

Rack 19 "for Pylontech with shelf Cabinet



Product option (select it in the options).

Cabinet storage up to 8 Pylontech batteries.

Specifications

TechnologyLithium
