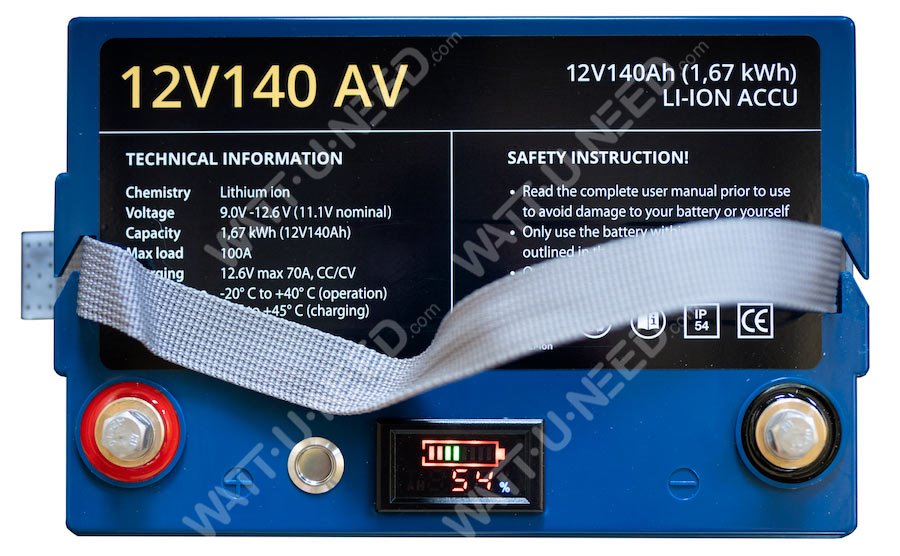

RebelCell Lithium 12V 140Ah battery

Wattuneed

1 649,56 € tax incl.

Solar batteries Lithium LiFePO4 12V 140Ah



More details

More info

Solar batteries Lithium LiFePO4 12V 140Ah



Description



Battery Li - ion 12V140 Ah with digital indicator of the State of the charger, for use in the following applications:

  • Angling : 12 V electric motor, sounder, energy water needs.
  • Electric boat: propulsion of an electric motor 12 V up to 55 lbs (for example, power barges, dinghies, etc.).
  • Leisure : battery service for yachts, boats, motor, mobile homes and caravans.






Key benefits



  • Compact and lightweight: the battery weighs only 12.5 kg
  • Maximum performance: thrust constant even when the battery is almost empty, discharge (up to 100%) without negative effects on performance or life cycle
  • Friendly: Lightweight and compact, LED charge status indicator, can be used with «standard» AC - DC converters
  • Easy loading: reloaded quickly and between charges (full charge in 4-5 hours). Can also be loaded with solar panels (special solar charge controller required).
  • Reliable with a long service life: built-in protection against abuses (against deep discharge, surge, high temperatures, etc.) via BMS and service life up to 10 years.
  • 2 years warranty



Technical specifications



Technical specifications12V140 Ah
ChemistryLithium ion
Voltage12, 6V
Capacity (C1 - C20)140Ah
EqPb (equivalent lead-acid)until 260Ah
Nominal power1.67 kWh
Maximum discharge continues100A
Maximum discharge (10 sec)120A
Life cycle (#charges) (@ 80% DoD)~ 1500
Life cycle (#charges) (@ 100% DoD)~ 1000
Dimensions262 x 175 x 220 mm
Weight~ 12.5 kG
Energy density~ 104 Wh / kG

Electronics & BMS
Voltage of bandwidth9.0V ~ 12.6V
Temperature load0 ~ 45 ° C
Discharge temperature-20 ~ 60 ° C
Storage temperature-20 ~ 45 ° C
Load profileCC / CV
Maximum charge current70A
Integrated cell balancingYes
Temperature protectionYes
Maximum discharge current protectionYes
Protection high voltageYes
Protection low voltageYes

Protection and certification
Standards (IEC 529)IP54
Certificate CEYes
warranty2 years

Specifications

Voltage12V
TechnologyLithium
Battery capacity140AV
