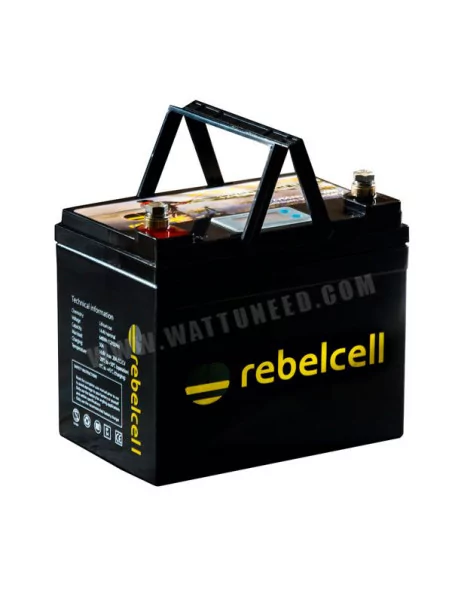

RebelCell 12V 100Ah Lithium battery

Wattuneed

1 249,00 € tax incl.

Solar batteries Lithium LiFePO4 12V 100Ah



More details

More info

Solar batteries Lithium LiFePO4 12V 100Ah



Description



Battery Li - ion 12V100 (without charger). Replace a battery in the lead up to 12V 200Ah in practice. Standard with digital charge level indicator and double USB port.








Key benefits



  • Compact and lightweight: the battery weighs only 10 kg.
  • Best performance: more power and thrust even when the battery is almost empty, deep discharge (up to 100%) without negative effect on the performance or the duration of the cycle life
  • Ease of use: Lightweight and compact, reloaded quickly and between charges (full charge in 5 hours, with use of the charger 16V25A), digital state of charge indicator.
  • Reliable and long life span: protection against abuse built (against deep discharge, high voltages, temperatures, etc.) via the battery management system and a life expectancy ranging up to ~ 10 seasons 2 year warranty



Technical specifications



Technical specifications12V100 on line
ChemistryLithium ion
Voltage14.4V
Capacity (C1 - C20)100Ah
EqPb (equivalent lead-acid)up to 2 x 105Ah
Nominal power1.29 kWh
Maximum discharge continues50A
Maximum discharge (10 sec)75A
Life cycle (#charges) (@ 80% DoD)~ 1500
Life cycle (#charges) (@ 100% DoD)~ 1000
Dimensions259 x 167 x 212 mm
Weight~ 10.0 kG
Energy density~ 104 Wh / kG

Electronics & BMS
Voltage of bandwidth12.0V ~ 16.8V
Temperature load0 ~ 45 ° C
Discharge temperature-20 ~ 60 ° C
Storage temperature-20 ~ 45 ° C
Load profileCC / CV
Maximum charge current25A
Integrated cell balancingYes
Temperature protectionYes
Maximum discharge current protectionYes
Protection high voltageYes
Protection low voltageYes

Protection and certification
Standards (IEC 529)IP54
Certificate CEYes
warranty2 years

Specifications

Voltage12V
TechnologyLithium
Battery capacity100Ah
Width259 mm
Height212 mm
Thickness167 mm
