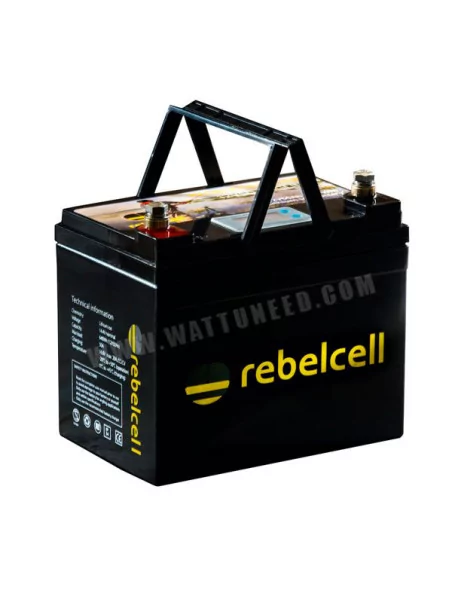

RebelCell Battery Lithium 12V 50Ah

Wattuneed

639,00 € tax incl.

Solar batteries Lithium LiFePO4 12V50Ah



More details

More info

Solar batteries Lithium LiFePO4 12V 50Ah









Description



Battery 12V50 li-on (without charger) with a numerical indicator of the condition of the charger.
Replacement drop for a lead-acid battery of 12V105Ah.















The main advantages



  • Compact and light: Battery weighs only 5.0 kg
  • Best performance: more power and thrust even when the battery is almost empty, full discharge (up to 100%) no negative effect on cycle performance or life
  • Easy to use: lightweight and compact, recharged quickly and between refills (full recharging in less than 6 hours), integrated abuse protection
  • Long life cycle: up to about 10 angling seasons
  • 2-year warranty















Technical specifications



Technical specifications

12V50 angling

ChemistryLithium Ion
Voltage14.4V
Capacity (C1-C20)50Ah
EqPb (lead-acid equivalent)up to 105Ah
Nominal energy648 Wh
Continuous maximum discharge50A
Maximum discharge (10 sec)75A
Life Cycle (#charges) (up 80% DoD)1500 pounds
Life Cycle (#charges) (up 100% DoD)1000
Size195x130x155 mm
Weight5.0 kG
Energy density104 Wh/kG

Electronics - BMS
Bandwidth voltage12.0V - 16.8V
Charge temperature0 - 45 C
Discharge temperature-20 - 60 C
Storage temperature-20 - 45 C
Load profileCC/CV
Maximum charge current10A
Built-in cellular balanceYes
Temperature protectionYes
Maximum discharge current protectionYes
High voltage protectionYes
Low voltage protectionYes

Protection and certification
Standards (CEI 529)IP54
CE CertificateYes
Warranty2 years
