Epever PWM LS2024EU 12V / 24V - 20A with USB output

Epever

43,54 € tax incl.

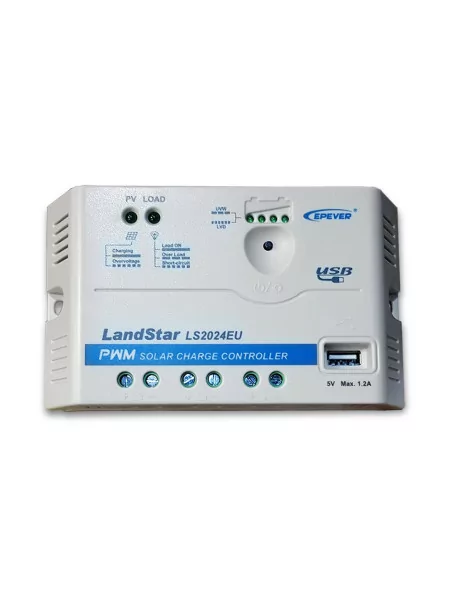

20A LandStar Serie Epever controller 12V/ 24V.

New generation programmable solar charge controller. Ideal for small solar system such as home system.

PWM solar controllers protect your batteries from discharges and overcharging, ensuring optimum service life.

USB Output : 1,2A /5V

Epever



stock quantity : 28

More details

More info

" Solar regulator LS2024EU - 20A with USB output"



Epever's new generation programmable solar charge controller 10A. Adopt aluminum heat sink which enables the reliability in high temperature enviroments.


DESCRIPTION



  • Capacity: 20A
  • Operating voltage: 12V or 24V
  • Temperature compensation
  • Warranty: 2 years
  • Technology: PWM
  • USB output 1,2A / 5V

The theoretical charging of a lead acid battery operates in three phases

graphique fonctionnement batterie plomb





- Phase 1: the current is limited to a rate of about 1/5 of the rated capacity. The voltage increases gradually until it reaches its maximum regulated threshold to 2.35 V / element.


- Phase 2 : the charging voltage is regulated to 2.35 V / element, the charging current then decreases to less than C/100. This phase should last up to 20 hours, the voltage must not stay above 2.26 V longer. The battery is chargedat the end of this phase


- Phase 3: once the battery is charged (after about 20 hours of charging) it switches to trickle charge (Floating) to keep it at 100% load. Then the voltage applied to the battery is around 2.26 V / element.


Applications



  • Solar home systempwm 10A avec sortie USB
  • Solar lighting system
  • Solar road signals
  • Solar surveillance
  • Solar RVs and boats
  • Small solar power station

Features



  • Three system voltage configuration : 12V, 24V or 12V/24V auto work
  • High efficiency PWM charging with temperature compensation
  • 3 LEDs shows PV charging, battery and load status
  • External temperature sensor interface
  • RS-485 bus communication
  • Open standard Modbus communication protocol
  • Software update function
  • USB output 1,2A / 5V

Electronic protections



  • PV array short circuit
  • Overcharge
  • Load short circuit
  • PV reverse polarity
  • High voltage transients
  • Over discharge
  • Load overload
  • Battery reverse polarity
  • Overheating

Specifications



ModelLS2024EU
Nominal system voltage12/24VDC
Rated battery current20A
Maximum PV input voltage50V
Self-consumption≤7mA
Temp. compensation-5mV/℃/2V (ref)
Equalize charging voltageGel : / , Sealed: 14.6V,  Flooded: 14.8V
Boost charging voltageGel: 14.2V,  Sealed: 14.4V,  Flooded: 14.6V
Float charging voltageGel /Sealed /Flooded: 13.8V
Low voltage reconnect voltageGel /Sealed /Flooded: 12.6V
Low voltage disconnect voltageGel /Sealed /Flooded: 11.1V
Dimension148x85.6x34.8mm
Mounting dimensions / Mounting holes138mm / 4.5mm2
Terminal10AWG/6mm²
Weight0.18kg
Working temperature-35°C~+55°C
Storage temperature-35°C~+80°C
Humidity≤95% (NC)
EnclosureIP20



 LS1024EU schema


Monitor software



Please, download the last version of the monitor software here

Specifications

Charge power10A
Voltage12V / 24V
MPPT/PWMPWM
Maximum PV input voltage50 V
Max. current10 A
