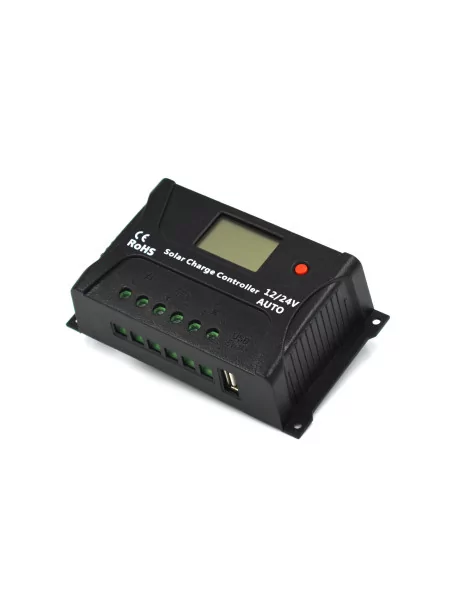

Solar Controller SRNE PWM HP 24V 10A

SRNE

16,13 € tax incl.

The new SRNE range offers PWM solar controllers with automatic system voltage detection (12 / 24V), adequate protections for your photovoltaic system and an efficient algorithm for proper balance of your batteries.

PWM solar controllers protect your batteries from discharges and overcharging, ensuring optimum service life.

stock quantity : 16

More details

More info

SRNE PWM HP 10 & 20AIts assets



12V/ 24 V system voltages are automatically recognized.

An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life.

With temperature compensation employed, charging parameters can be automatically adjusted.

A wide range of load working modes facilitate the product's application to different types of load.

The product provides overcharge, over-discharge, overload protection, as well as short-circuit protection.

By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.

The product provides a dot matrix graphic LCD screen and a human-machine interface with a key.

The user-friendly design of browser and dynamic interfaces ensure convenient and intuitive operations.

Boasting an industrial grade design, the product can function well in various tough conditions.

TVS lighting protection is adopted.


Characteristics



ModelHP2410
Rated current10A
current display functionNo
System voltageAutomatic recognition of 12 V/ 24 V
No-load loss< 10mA/12V;< 12mA/24V
Max. Solar energy input voltage<55V
Max. voltage at the battery end<35V
Overvoltage protection17.0V;×2/24V;
Equalizing charging voltage14.6V;×2/24V;
Boost charging voltage14.4V;×2/24V;
Floating charging voltage13.8V;×2/24V;
Charging recovery voltage13.2V;×2/24V;
Over-discharge recovery voltage12.6V;×2/24V;
Over-discharge voltageLight-control open 5V; light-control close 6V
Equalizing charging interval30days
Equalizing charging time1H
Boost charging time2H
Temperature compensation-3.0mV/℃/2V
Light control voltageLight control on 5V, ×2/24V;
light control off 6V, ×2/24V;
Light control judgment time1minute
Operating temperature-25℃ to +55℃;
IP protection degreeIP30
Net weight100g
Protection functionsSolar panel short circuit and reverse-connection protection

Product Reviews
  • Number of Reviews : 1
  • Average Grade : 5 /5
  • D. Jean Claude
  •  the 25/10/2019
  • 5/5
super très bon produit

Specifications

Charge power10A
MPPT/PWMPWM
