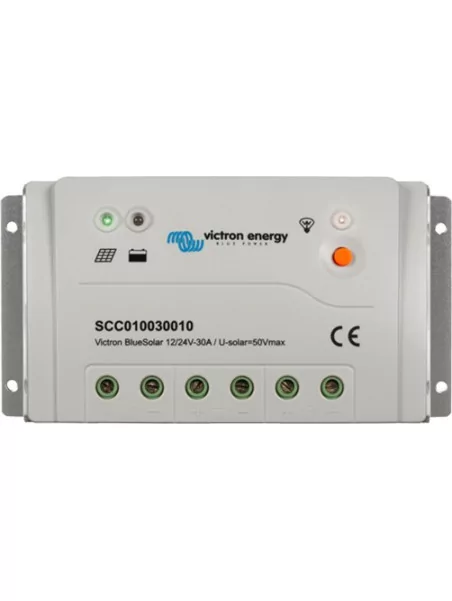

Solar controller Victron BlueSolar PWM 12/24V 5A-10A-20A-30A View full size

Solar controller Victron BlueSolar PWM 12/24V 5A-10A-20A-30A

Victron energy

48,45 € tax incl.

Options

The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable : with help of a computer and software and with the dedicated BlueSolar Pro Remote Panel.

PWM solar controllers protect your batteries from discharges and overcharging, ensuring optimum service life.

logo victron energy

More details

More info

Programmable

The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:
- With help of a computer and software (available free of charge from Victron's website)
- With the dedicated BlueSolar Pro Remote Panel (see features below).

Features

- Lighting control function, fully programmable.
- Three stage battery charging (bulk, absorption, float), fully programmable.
- Integrated battery monitor function (Remote Panel needed to display state of charge).
- Load output with low voltage disconnect and manual control (default setting).
- Optional external temperature sensor.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.

Technical specifications

Specifications

Charge power10A, 20A, 30A
