    Enphase Envoy-S communication gateway
    Enphase Envoy-S communication gateway

    Enphase Envoy-S Metered communication gateway

    €531.19
    Tax included
    ENV-S-WM-230
    0712971138803

    With its production and consumption measurement options, the Enphase Envoy-S is an intelligent platform for comprehensive management of your energy production.

    100% secure payments

    Customers who bought this product also bought:

    • Floor-standing mounting kit
    • Floor-standing mounting kit
    • Floor-standing mounting kit
    • Floor-standing mounting kit
    • 11 more images
      Floor-standing mounting kit
    10

    Floor-standing mounting kit

    Price €172.10
      • mounting system for tile roofs
      • mounting system for tile roofs
      • Tile roof mounting kit
      • Tile roof mounting kit
      • 6 more images
        mounting system for tile roofs
      11

      Tile roof mounting kit

      Price €68.50

        Enphase Envoy-S Metered...

        €531.19

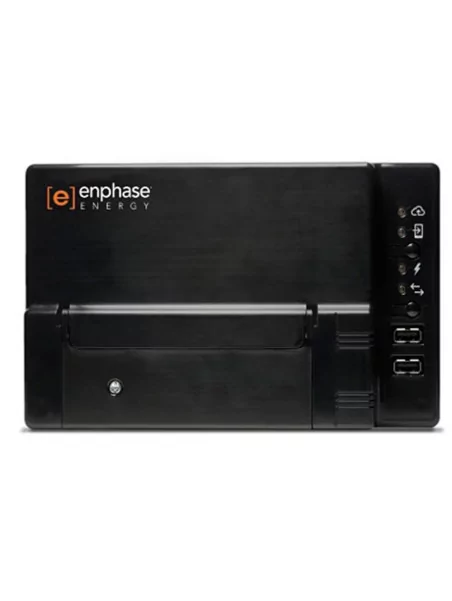

        The Enphase Envoy-S Metered™ communication gateway transmits photovoltaic production and energy consumption data to Enlighten™, Enphase's monitoring and analysis software for fully remote maintenance and management of an Enphase system.

        With production and consumption measurement options, the Envoy-S is an intelligent platform for comprehensive energy management and works in conjunction with the Enphase™ AC battery.

        Intelligence

        • Offers web-based control and monitoring
        • Two-way communications for remote upgrading

        Simplicity

        • Simple system configuration with the Installer Toolkit mobile app
        • Flexible network connection: Wi-Fi, Ethernet or cellular

        Reliability

        • Designed for indoor or outdoor installation, in an enclosure
        • 5-year warranty

        Features

        MODEL REFERENCE
        ENV-S-WM-230 (three-phase)Enphase Envoy-S communication gateway offering integrated measurement of photovoltaic production and energy consumption

        C

        ONFIGURATION REQUIRED FOR POWER SUPPLY
        Wired230 V AC or 400Y/230 V AC, 50 Hz
        Max. 20 A overcurrent protection.
        required
        CAPACITY
        Number of devices detectedUp to 600 microinverters
        MECHANICAL
        Dimensions (W x H x D)213 x 126 x 45 mm
        Weight
        ,5 kg
        Ambient temperature range
        40 °C to 65 °C
        40 °C to 46 °C if installed in an enclosure
        Environmental classificationIP30 for indoor installation or in an IP54 (or higher) enclosure

        A

        ltitude
        ,000 meters max.
        USB portsTwo USB 2.0 ports, auto-detect, auto-negotiate
        INTERNET CONNECTION OPTIONS
        Integrated Wi-Fi802.11b/g/n (2.4 GHz, 5 GHz)
        EthernetOptional, 802.

        3

        , Ethernet Cat5E (or Cat 6) UTP cable (not included)
        MobileOptional, CELLMODEM-02 (not included)
        CONFORMITY
        ConformityIEC/EN 61010-1:2010, EN50065-1, EN61000-4-5, EN61000-6-1, EN61000-6-2
        ENV-S-WM-230
        8 Items

        Specific References

        UPC
        712971138803
        EAN13
        0712971138803
        New

        Download

        Datasheet Enphase Envoy-S

        Download (215.05KB)

        Manuel install. Enphase - Envoy

        Download (2MB)
