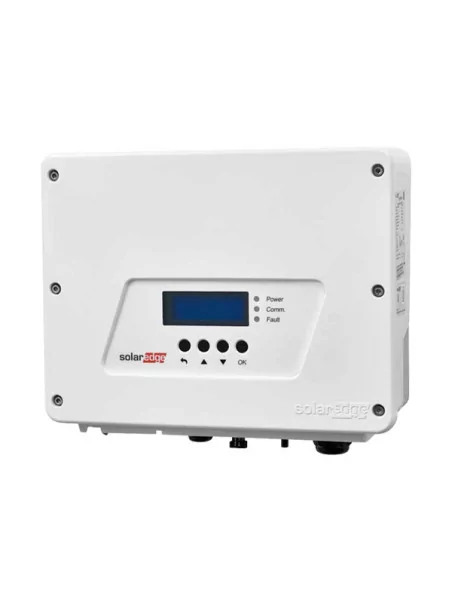

SolarEdge Inverter SE3500H HD-Wave View full size

SolarEdge Inverter SE3500H HD-Wave

SolarEdge

1 130,62 € tax incl.

Small, lightweight and easy to install indoors or outdoors, the SolarEdge inverter with HD-Wave technology has been specifically designed to facilitate power optimizers. It is highly efficient, highly reliable, without electrolytic capacitors, and has built-in module-level monitoring. The HD-Wave inverter is compatible with the StorEdge interface for StorEdge Smart Energy Management applications.Small, lightweight and easy to install indoors or outdoors, the SolarEdge inverter with HD-Wave technology has been specifically designed to facilitate power optimizers. It is highly efficient, highly reliable, without electrolytic capacitors, and has built-in module-level monitoring. The HD-Wave inverter is compatible with the StorEdge interface for StorEdge Smart Energy Management applications.



This product is no longer available for sale.
You will find its equivalent by clicking here.

More details

More info

Small, lightweight and easy to install indoors or outdoors, the SolarEdge inverter with HD-Wave technology has been specifically designed to facilitate power optimizers. It is highly efficient, highly reliable, without electrolytic capacitors, and has built-in module-level monitoring. The HD-Wave inverter is compatible with the StorEdge interface for StorEdge Smart Energy Management applications.





SolarEdge's HD-Wave technology inverter, winner of the prestigious 2016 Intersolar award, breaks the mold of traditional inverters. Using a novel power conversion technology that is based on a distributed switching and powerful DSP processing, the HD-Wave technology inverter is able to synthesize a clean sine wave that leads to a dramatic reduction in the magnetics and heavy cooling elements. This small and lightweight inverter enables simplified shipping and storing and one-person installation. The record-breaking efficiency allows more energy production for an improved ROI.







Inverter HD-WaveSE2200HSE3000HSE3500HSE3680HSE4000HSE5000H
OUTPUT
Rated AC Power Output220030003500368040005000VA
Maximum AC Power Output220030003500368040005000VA
AC Output Voltage (nominal)220 / 230Vac
AC Output Voltage Range184 - 264.5Vac
AC Frequency (nominal)50 / 60 ± 5Hz
Maximum Continuous Output Current1014161618,523A
Residual Current Detector / Residual Current Step Detector300 / 30mA
Utility Monitoring, Islanding Protection, Country Configurable ThresholdsYes
INPUT
Maximum DC Power340046505425570062007750W
Transformer-less, UngroundedYes
Maximum Input Voltage480Vdc
Nominal DC Input Voltage380Vdx
Maximum Input Current6.591010,511,513,5Adc
Reverse-Polarity ProtectionYes
Ground-Fault Isolation Detection600kΩ Sensitivity
Maximum Inverter Efficiency99,2%
European Weighted Efficiency98,398,899%
Nighttime Power Consumption< 2.5W
ADDITIONAL FEATURES
Supported Communication InterfacesRS485, Ethernet, ZigBee (optional), WiFi (optional), Cellular (optional)
Smart Energy ManagementExport Limitation, StorEdge applications
STANDARD COMPLIANCE
SafetyIEC-62109-1/2, AS-3100
Grid Connection StandardsAS-4777, VDE-AR-N-4105, VDE 0126-1-1, UTE C15-712, G83/2, G59/3, CEI-021, EN 50438, IEC61727, IEC62116, ÖNORM, TF3.2.1, C10-11, NRS 097-2-1
EmissionsIEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC Part 15 Class B
INSTALLATION SPECIFICATIONS
AC Output - Supported Cable Diameter9 - 16mm
AC - Supported Wire Cross Section1 - 16mm²
DC Input1 x MC42 x MC4 pair
Dimensions (H x W x D)280 x 370 x 142mm
Noise< 25dBA
Weight9.5kg
CoolingNatural Convection
Operating Temperature Range-20 to +60(2) (-40˚C option)°C
Protection RatingIP65 - Outdoor and Indoor
