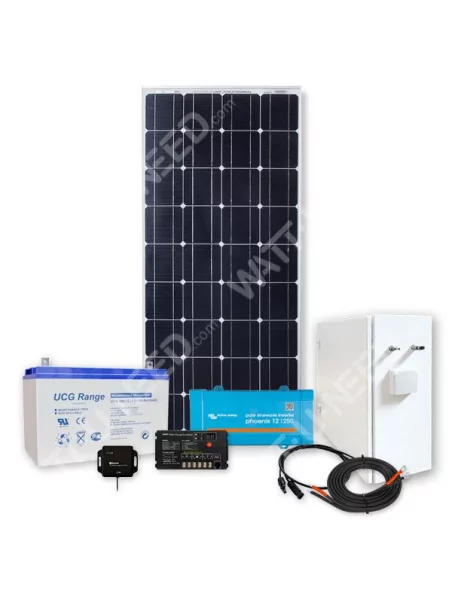

Autonomous lighting box Kit

Wattuneed

799,55 € tax incl.

Add to cart

Autonomous solar light Kit.
Example usage: lighting a horse box, Garden,...

  • Panel monocistallin
  • MPPT SRNE - 10A charge controller
  • Battery 12V 100Ah Gel
  • Cable 2x4mm² solar 5 m MC4 crimped on the wire
  • Battery 2X6mm² cable and battery terminals
  • 1 LED 10W 12V spot lights

More details

Équipements
Descriptions équipements
Customize

Choice of panel

93.91
Sélectionné

Monocrystalline solar panel 12V 100pw

107.73
Sélectionné

MX FLEX Protect Solar Panel Back Contact 30Wp

130.72
Sélectionné

MX FLEX Protect Solar Panel Back Contact 50Wp

292.42
Sélectionné

Solar panel 12V MX FLEX Protect Full Black 100Wc Back Contact

6969.6
Sélectionné

40x MX FLEX Protect Solar Panel 100Wp

246.07
Sélectionné

Solar panel 12V MX FLEX PROTECT 100Wc

55.99
Sélectionné

Solar panel 50Wp

200
Sélectionné

Solar panel Q.Cells DUO 360Wc G8 mono

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 30Wp

config

107,73 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Solar panel 12V MX FLEX Protect Full Black 100Wc Back Contact

config

292,42 €

QTT

See product
40x MX FLEX Protect Solar Panel 100Wp

config

6 969,60 €

QTT

See product
Solar panel 12V MX FLEX PROTECT 100Wc

config

246,07 €

QTT

See product
Solar panel 50Wp

config

55,99 €

QTT

See product
Solar panel Q.Cells DUO 360Wc G8 mono

config

200,00 €

QTT

The choice of the regulator

54.5
Sélectionné

Solar Controller MPPT 10A SRNE

16.13
Sélectionné

Solar Controller SRNE PWM HP 12/24V 10A

77
Sélectionné

Epever MPPT XTRA N Serie 10A

76.6
Sélectionné

Solar Controller MPPT 20A SRNE

110.9
Sélectionné

Solar Controller MPPT 30A SRNE

133.1
Sélectionné

Solar Regulator MPPT 40A SRNE ML2440

See product
Solar Controller MPPT 10A SRNE

config

54,50 €

QTT

See product
Solar Controller SRNE PWM HP 12/24V 10A

config

16,13 €

QTT

See product
Epever MPPT XTRA N Serie 10A

config

77,00 €

QTT

See product
Solar Controller MPPT 20A SRNE

config

76,60 €

QTT

See product
Solar Controller MPPT 30A SRNE

config

110,90 €

QTT

See product
Solar Regulator MPPT 40A SRNE ML2440

config

133,10 €

QTT

Choice of lighting

See product
Victron Phoenix 12V / 24V / 48V - 250VA

config

116,16 €

QTT

See product
Victron Phoenix 12V / 24V / 48V - 375VA

config

150,04 €

QTT

See product
Phoenix VE.Direct 12V / 24V / 48V - 500VA

config

217,85 €

QTT

See product
Victron Phoenix VE converter. Direct 12/24/48V - 1200VA

config

496,10 €

QTT

See product
Victron Phoenix Converter 12V / 24V / 48V - 1200VA

config

496,10 €

QTT

Choice of mounting system

55
Sélectionné

Tile roof attachment kit

49.1
Sélectionné

Slate roof attachment kit

127
Sélectionné

Fixing kit on ground structure

37.28
Sélectionné

Tin roof attachment kit

68.38
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

See product
Tile roof attachment kit

config

55,00 €

QTT

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Fixing kit on ground structure

config

127,00 €

QTT

See product
Tin roof attachment kit

config

37,28 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

68,38 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

Battery choice

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
AGM battery Ultracell 12V 18Ah

config

36,30 €

QTT

See product
GEL battery Ultracell 12V 35Ah

config

86,70 €

QTT

See product
Ultracell 12V 55Ah GEL battery

config

139,37 €

QTT

See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

See product
Ultracell GEL battery 12V 200Ah

config

397,00 €

QTT

See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

See product
Lithium battery 12V 20Ah

config

225,90 €

QTT

See product
12V40Ah Lithium Battery

config

429,60 €

QTT

See product
12V60Ah Lithium Battery

config

647,40 €

QTT

See product
12V90Ah Lithium Battery

config

970,00 €

QTT

Choice of cable

See product
2X4mm2 solar cable with Type MC4 (sold by -5m)

config

13,80 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

7,30 €

QTT

See product
2x4mm2 solar cable extension with 2x Type MC4 (10 meters)

config

27,49 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

See product
MC4-like connector male + female to screw

config

5,00 €

QTT

See product
Rubber cable H07RN-F 3G4 -1m

config

4,30 €

QTT

See product
2X4mm2 solar cable with MC4 type (sold per metre)

config

4,60 €

QTT

See product
Earth cable 6mm2 1m

config

1,45 €

QTT

Accessories battery

See product
Box and manpower

config

239,48 €

QTT

See product
Metal Box Rittal IP66

config

68,10 €

QTT

See product
Bluetooth adapter for SRNE regulators

config

24,20 €

QTT

See product
RM5 display for SRNE regulator

config

50,42 €

QTT

See product
Battery monitor Victron BMV-700 series

config

176,66 €

QTT

Choice of lighting

See product
Spot LED projector 30W - 12 V

config

58,50 €

QTT

See product
Spot LED projector 10W - 12V

config

22,20 €

QTT

See product
LED Spot for garden- 3W - 12V

config

17,90 €

QTT

See product
5m cable with LED bulb 4W

config

16,90 €

QTT

More info

Autonomous solar Kit for autonomous lighting

Autonomous solar Kit for autonomous lighting

COMPOSITION



  • Panel monocistallin
  • MPPT SRNE - 10A charge controller
  • Battery 12V 100Ah Gel
  • Cable 2x4mm² solar 5 m MC4-like crimped on the wire
  • Battery 2X6mm² cable and battery terminals
  • 1 LED 10W 12V spot lights


This kit will produce in Paris at least 205 Wh, which is 2 hours use of the three spots!
The battery has a useful capacity of 450Wh (at 30% of landfill to maximize its life, 1200 cycles).

Our kit comes ready to be installed. We wire connectors, we can adjust the lengths on request


Monocrystalline solar panel 12V 100pw



Monocrystalline solar panel 12V 100pw



This module integrates discreetly and easily thanks to its small size.
The small size of this Panel (54cm x 121cm) and weight make it ideal for mobile applications (camping, boat...).
It is suitable for installation on the roof of a vehicle, for example.
The frame is anodized weatherproof. The Panel provides a mechanical stability particularly strong to ensure ease of installation and transport.
The connection is simple and fast (60cm cable with MC4)









Panel features



  • Normal NOCT operating temperature: 45 ° C
  • Wind resistance:? 130 km/h
  • The hailstone maximum diameter: 25 mm
  • The hailstone impact speed: 80 km/h
  • Frame in anodized aluminum light and reinforced
  • High transmissivity of glass
  • "Plug & play" box with 2 diodes
  • 4mm thick safety glass



 Features



Cells

Monocrystalline

Maximum power (Pmax) (W)

100 W

Maximum peak (Imp) current (A)

5.83 HAS

Maximum peak voltage (Vmpp) (V)

17.18 V

Voltage in open circuit (Voc) (V)

22.08 V

Short circuit (Isc) current (A)

6.03 HAS

Operating temperature (° C)

-40 to + 85

Max (A) inverse overcurrent protection

15

Output power tolerance (%)

0 + 3

Maximum system voltage (Vdc)

1000

Dimensions (mm)

1185 x 545 x 35

Weight (kg)

8

Performance of the cell

18.8%

Performance of the module

15.6%

Material

White Tedlar

Framework

Aluminum anodized

Thickness of the framework

35 mm


SRNE 10A MPPT SOLAR CONTROLLERSRNE 10A MPPT SOLAR CONTROLLER



Adoption of a double Ridge or multiple Ridge tracing technique, used for the condition when a part of the solar panel is under the shadow or the solar panel parts are the damaged.

The algorithm of maximum power point integrated that promotes use of the pv system energy efficiency management. The efficiency of charge is 15% ~ 20% higher than the PWM mode.

It can find the best place to work in the I - V curve in 1 minute. The MPPT efficiency can achieve 99.9%.

Adopt advanced techniques of digital electric power that make energy conversion efficiency up to 97%.



ModelMT2410
System voltage12V
Maximum input of solar panel power130W
Transfer efficiency≤ 96%
Debit charge / discharge current10A
Load loss< 15mA
Maximum voltage of the solar panel< 150V
Effectiveness of traceability MPPT> 99%
Surge protection16.5V
Limited charge voltage15.5V
Equalize the load voltage15.2V
Equalize the load intervam30 days
Increase of the load voltage14.4V
Floating charge voltage13.8V
Recovery of excessive discharge voltage12.5V
On the discharge voltage11.0V
Boost load time2 hours
Equalizing charge time1 hour
Protection against overheatingYes
Light tension (enabled)5V
Light tension (disabled)6V
Functional delay time5 min
Operating temperature-35 ° C ~ + 65 ° C
Weight430g
Altitude≤ 3000 m
Dimension143 * 71 * 37.4 (mm)
Plant size139 * 48 (mm)




100Ah Gel batteries100Ah Gel batteries



Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Security strengthened compared to the open lead batteries.
A GEL battery can support 100% discharge and find its rated capacity if discharged hold time is short. This series has a longer discharge time compared to other batteries. Its special design of the plate increases the lifetime of the battery, especially in warmer temperatures. A separator in the battery to improve its performance. There is also a longer preservation time.

  • Nominal voltage: 12V
  • Capacity: 100Ah
  • Size: 327 x 173 x 212 mm
  • Weight: 31 Kg





Cycle of life compared to the depth of discharge


cycles de vie batterie gel 65Ah




SPOT PROJECTOR LED 10W - 12V

SPOT PROJECTOR LED 10W - 12V



Our outdoor LED spotlight black aluminium allow lighting wide-angle powerful and economical.

The sealing of the aluminium housing and the thick protective glass allows mounting without special protection.

They work well indoors to illuminate garages and commercial premises in indirect lighting for high ceilings and skylights.

Our last generation LED projectors are perfect to light up your trees and your gardens.

Power supply: 12v DC (requires a special LED 12v DC power).

Equivalent to 65W halogen



Features



  • Power: 10W
  • Color: warm white
  • Luminous flux: 800lm
  • Color temperature: 2700-3500K
  • Dimensions: width: 11, 5cm, height: 8, 5cm, depth: 8.5 cm
  • Weight: 600 g
  • Index IP: 65
  • Operating range:-20 ° + 50 °
  • Number of leds: COB Multichips
  • Led type: High Power 10w COB

 Wiring

Wiring



5 m cable 2X4mm² solar with the crimped cable mc4 connectors

2 m cable with lug set battery battery

Specifications

Type of needSelf-Use Lighting Kits
Wind TurbinWithout
Number of panels1 panel
Output Kit voltage230V
Battery storageWith storage
Type de LEDKit éclairage autonome
Type de LEDSpot LED
Voltage12V
Lighting power10W
TechnologyGel
Battery capacity100Ah
Panel typeRigids
CellsMonocrystalline
Max. Power - Wp100 Wc
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
