Fixing for sheet corrugated + claims Middle NVT

Wattuneed

13,50 € tax incl.

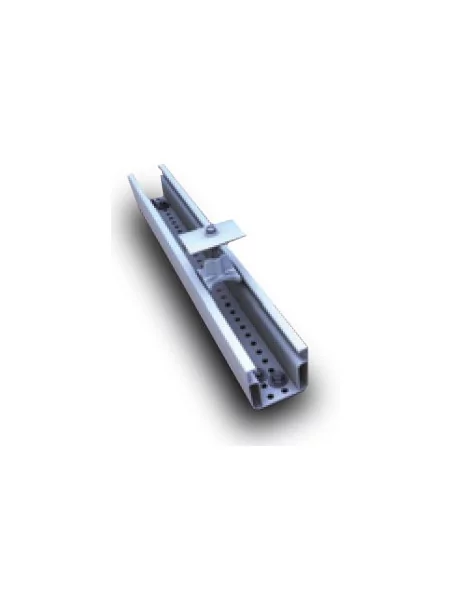

Fixing aluminum rail with claims of workplace for corrugated roof.

Simple, fast and economical installation.



This product is no longer available for sale.
You will find its equivalent by clicking here.

More details

More info

The fastening system is attached directly to the Panel. It has been studied and optimized down to the smallest detail to ensure the security of your system, a high layout flexibility and fast and simple Assembly.



The attachment system helps you set the vertical and horizontal modules using bindings module. It is suitable for all heights of backbone of module on the roof with only a few types of fasteners, which are available in bare aluminum and black. They are installed on short, practical and completely pre-assembled rails. Pre-cut and with fixed support and high quality EPDM sealing strips, short profiles are easy to handle on site and on the roof.



The rails are always installed by the top screws approved for thin sheets. These are screwed in the Panel without producing any metal chips, which can cause corrosion if they are not removed. They also have the same head screws used on the module bindings, which means that you need a single tool.



This pricing for metal roofing system ensures good back ventilation of the modules and an aesthetic design for your PV plant.



They can be used from a thickness of 0.4 mm steel Board. Thanks to their clever design, the screwed connection creates a conductive connection of electricity between the fastening system and the surface of the roof.



Clame de fixation





Data sheets and documentation

Specifications

Type fixationToit en tôle
Width380 mm
Height48 mm
