Flat roof mounting system - 20 or 40 panels View full size

Flat roof mounting system - 20 or 40 panels

1 385,45 € tax incl.

Options

Flat surface installation system for photovoltaic panels.
Available from 20 panels.

Please choose the number of panels: 20 or 40 panels and the inclination (10° or 18°)
For more than 40 panels, please contact us

More details

More info

Flat roof mounting system - 20 or 40 panels



Flat roof structure

A flexible and compact structure

This system is suitable for all conventional flat roofs or flat surfaces. This structure requires little material and allows the use of shorter rails, ensuring easier handling during installation to reduce costs and increase profitability.

> For 20 panels, the cost of the structure per panel is 69€

> For 40 panels, the cost of the structure per panel is 63€

The lesstage is not included in the system.



Easy and quick to install

The simplicity of the system makes it possible to significantly reduce the installation time. For example, setting up a 1 kW assembly takes about 3 to 4 minutes.



flexibility

The structure can be assembled in two ways:
> for a SOUTH orientation with an inclination of 10°
> for a SOUTH orientation with an inclination of 18°

East-west orientation possible, please contact us.

The flexible design of the system allows it to be used on all kinds of flat surfaces and even allows installation on a roof with a slightly uneven surface.



lightness

Thanks to its reduced weighting (min. 5kg/panel), the structure adds little additional weight on the roofs. The assembly is done without drilling the waterproofing membrane of the roof. one Protective tip is only necessary to cover the end of the rail.

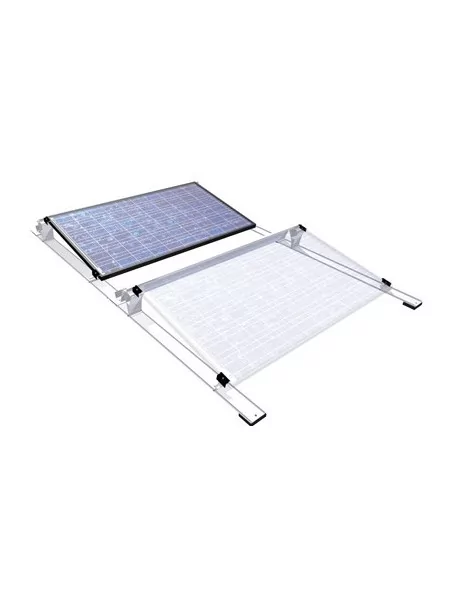

structure diagram


Technical specifications

application

Flat roof tolerant of little additional load or on a roof that cannot be drilled (Static stability without drilling the roof sealing membrane

Panel orientationSouth at 10° or 18° (east-west on request)
ballastNormal roof area: min. 5kg/panel; Corner/corner area: min. 20kg/panel
Roof loadMin. 12 kg/m²
materialsAluminum and stainless steel

Specifications

Type fixationToiture plâte
