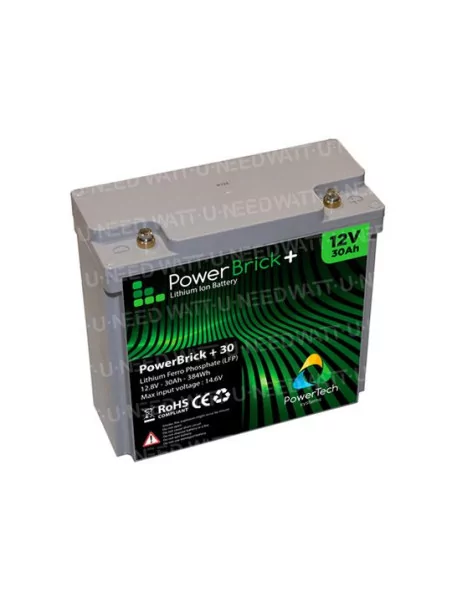

    PowerBrick Lithium Battery 12V 30Ah PB+12/30

    €345.31
    Tax included
    PB+12/30
    0768563817007

    The Lithium-Ion PowerBrick 12V-30Ah battery offers great security through the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.

    Dimensions (mm): 180 x 76 x 168

    Weight (Kg): 3.44



    100% secure payments

    PowerBrick Lithium Battery...

    €345.31

    Background PowerBrick+ 12V 30Ah



    Lithium PowerBrick Battery 12V 30Ah



    Battery PowerBrick+ 12V 30AhThe Lithium-Ion PowerBrick 12V-30Ah battery offers great security through the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.

    The PowerBrick 12V-30Ah incorporates an innovative control system (BMS) into its case to ensure a very high level of safety for use. The BMS constantly controls and balances battery cells to protect the battery and increase its lifespan. The BMS also protects the battery from mishandling: deep discharge, too high charge voltage, etc.

    The PowerBrick range has been designed to replace Lead batteries, offering a quadruple energy density for equal weight and footprint.
    Because of its technology, the PowerBrick 12V-30Ah lithium battery can be installed in any position (vertically, lying on the side or upside down).

    The electrical parameters of the PowerBrick 12V-30Ah lithium battery are compatible in all respects with those of a 12V AGM lead battery. In the vast majority of cases, the charging system can be kept the same and no additional accessories are required to make the replacement.

    Because a PowerBrick battery can be discharged at 100% of its capacity, an AGM lead battery can be replaced by PowerBrick with a 2x capacity less than the lead battery (e.g., a PowerBrick 50Ah replaces an AGM 100Ah battery).

    The Lithium PowerBrick 12V-30Ah battery has a rated voltage of 12.8V. It can be easily assembled in series (up to 4 battery in series) and in parallel (up to 15 batteries).

    The voltage of the final assembly can be 12V and up to 48V (for 4 packs assembled in series), which meets the needs of almost all electrical applications of traction, solar or wind storage, easement, robotics, trolleys, etc.

    The battery is protected by a waterproof ABS case, resistant to water projections and dust (IP65 Protection Index).

    PowerBrick products are lightweight, compact, efficient and can be used for all types of uses and applications. The PowerBricktm directly replaces older-generation batteries (LEAD VRLA, AGM or OPZ batteries) in 12V, which are inefficient and harmful to the environment (heavy metal use and recycling complexity).

    The PowerBrick range has a 2-year commercial warranty, extendable to 5 years



    LiFePo 30Ah Lithium Batteries

    • Very high lifespan: from 3000 cycles to several tens of thousands
    • Possible deep discharges (up to 100%)
    • Lithium Iron Phosphate technology completely secure (no risk of explosion or self-ignition)
    • BMS (Battery Management System) built into the case: maximizes battery life AND secures battery life
    • Very low environmental toxicity
    • Calendar life > 10 years
    • Excellent temperature hold (-20 to 60 degrees Fahrenheit)
    • Flexible system: up to 16 packs in parallel and 4 in series
    • Constant power throughout discharge (low internal resistance)
    • Very low Losses from Peukert (energy efficiency >98%)
    • Very low self-discharge (<3% per month)
    • No lead, no rare earths, no acid, no degassing
    • Weight gain > 50% and 40% reduced footprint compared to lead batteries
    • Certification: CE, RoHS, UN 38.3

    Important points

    • 12V-30Ah Battery Pack in Technology - Lithium Iron Phosphate (LiFePO4 - LFP)
    • Nominal voltage: 12.8V
    • Stored energy: 384 Wh
    • New high-performance waterproof cylindrical cell
    • 3000 cycles at 100% DoD - 1C (see technical graphs)
    • 4500 cycles at 80% DoD - 1C (see technical graphs)
    • 98% energy efficiency
    • Weight: 3.44Kg
    • Dimensions: 180mm x 76mm x 168mm
    • Instant peak discharge current: 180A ±30A (max 100mS)
    • Continuous discharge current: 45A (576W)
    • Maximum discharge current (< 30s): 70A (896W)
    • Maximum charge current: 30A
    • Total security provided by a BMS (Battery Management System) built into the case
    • Monitoring of the current and tension of cells, temperature, balancing of cells, etc.
    • Intelligent balancing algorithm
    • 100% maintenance-free
    • Series assembly from 12V to 48V (1 to 4 units in series)
    • Parallel assembly up to 16 units (12V-480Ah / 6.14kWh)
    • Robust design in an insulated and waterproof case (Protection Index: IP65)
    • Use temperature in charge: from 0 to 60 degrees Celsius
    • Landfill operating temperature: from -20C to 60C
    • Waterproof ABS case (IP65)
    • CE, RoHS and UN38.3 Certification
    • 2-year commercial warranty in standard, extendable to 5 years

    size

    Size PowerBrick+ 12V 30Ah


    Characteristics



    Electrical
    Nominal tension 12.8 V
    Nominal capacity 30 Ah
    Energy 384 Wh
    Internal resistance ≤ 50m
    Number of cycles >3000 cycles
    Self-unloading < 3% per month
    energy efficiency > 98% - 99% @1C
    CHARGE STANDARD
    Charge tension 14.4 V - 0.2V
    Charge mode CC/CV: Constant Current / Constant Voltage
    Standard charge current (Continuous maxi current) 15A (Continuous Maxi: 30A)
    BMS cut-off voltage 14.8 V - 0.1V
    STANDARD DISCHARGE
    Instant peak discharge current 180 A - 30 A (max 100mS)
    Continuous discharge current 45 A (576 W)
    Maximum discharge current (< 30s) 70 A (896 W)
    BMS cut-off voltage 10 V
    environment
    Charge temperature 0C to 60C
    Discharge temperature -20C to 60C
    Storage temperature 0C to 50C -60±25% relative humidity
    Protection IP IP 65
    mechanics
    Cell type cylindrical
    package ABS
    Dimensions (L x P x H)180 x 76 x 168 mm
    weight 3.44 kg
    terminal Bolt M5
    PB+12/30
    499 Items

    Data sheet

    Cycles
    3000
    Voltage
    12.8V
    Technology
    Lithium
    Battery capacity
    30 Ah
    Width
    180 mm
    Height
    168 mm
    Thickness
    76 mm
    Load current
    15 A (Maxi continu : 30A)
    Max. discharge current
    70 A (896 W)
    IP protection
    IP 66
    Weight
    3,44 kg
    Video Youtube 1 - ID
    TSkV5tpVDq8

    Specific References

    UPC
    768563817007
    EAN13
    0768563817007
