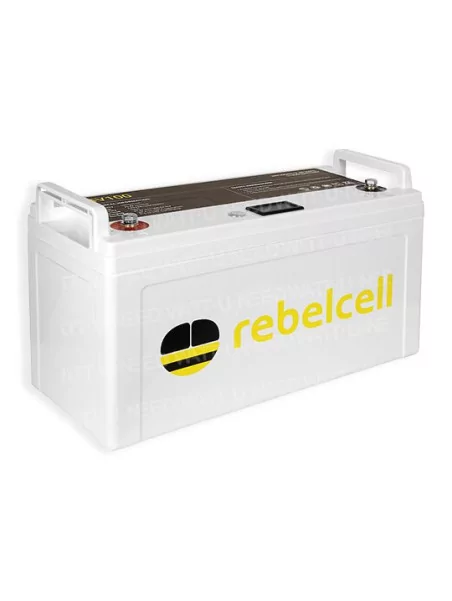

RebelCell Lithium Battery 24V 100Ah - 100AV

Wattuneed

2 273,90 € tax incl.

Lithium battery 24V100 (1.29 kWh) with integrated state of charge indicator.

More details

More info

24V100 BATTERY

Characteristics



TECHNICAL SPECIFICATIONS
chemistryLithium-Ion
tension25.2 V
Capacity (C1-C20)100 Ah
EqPb (comparable lead-to-lead battery)Up to 4 x 12V 105Ah
Nominal energy2.49 kWh
Maximum continuous discharge100A
Peak flow (10 sec)120 A
Lifetime (@80% DoD)1500
Lifetime (@100% DoD)1000
size407 x 173 x 233 m
weight15.1 kg
Energy density104 Wh / KG
ELECTRONICS & GTB
Bandwidth voltage21.0V – 29.4V
Charging temperature0°C – 45°C
Discharge temperature-20°C - 60°C
Storage temperature0°C – 45°C
Maximum load current50 A
State of charge indicatorYes, digital
Integrated cell balancingYes
Temperature protectionYes
Maximum discharge current protectionYes
Overvoltage protectionYes
Protection against under-stressYes
PROTECTION AND CERTIFICATION
Safety class (IEC 529)IP54
CE certificateYes
guarantee2 years


Specifications

Voltage24V
TechnologyLithium
Battery capacity100Ah
Weight16 kg
Width407 mm
Height173mm
Thickness233 mm
