Self-consumption kit 8 panels inverter Deye 3.6 kVA with lithium battery Delong Top 5.12 kWh

A brilliant investment for a greener, less expensive future

Opt for simplicity and efficiency with our solar kit, and reduce your energy bills today!

Discover a solar kit for fast, efficient installation: 8 solar panels, a Deye 3.6 kVA hybrid inverter, a Delong Top Energy 51.2V 100Ah - 5.12kWh lithium battery, and all the cables needed to connect each element, from the panel to your electrical panel.

Need more flexibility? No problem! Customize your kit by choosing the mounting system that's right for you. We'll also adjust cables, protectors and all components to meet YOUR specific needs. With our kit, solar energy becomes tailor-made, practical and efficient.

All our kits are fully customizable. In the options, you can easily select another model or adjust the quantities so that the kit perfectly matches your needs. And for greater transparency, you'll find full details of the products selected just below the price. Tailor your solar kit to your needs with ease!

Important notice for our customers in Belgium: An environmental contribution of €144.50 excl. VAT will be applied to the purchase of each Delong Energy 5.12kWh lithium battery. More information at the bottom of the page.

Solar panels

Single-phase inverter

A single-phase inverter is an electrical device that converts direct current (DC) to alternating current (AC) with a single phase, typically used in domestic and light-duty applications. It is commonly used in residential solar energy systems to transform the energy produced by solar panels into a form compatible with standard electrical appliances.

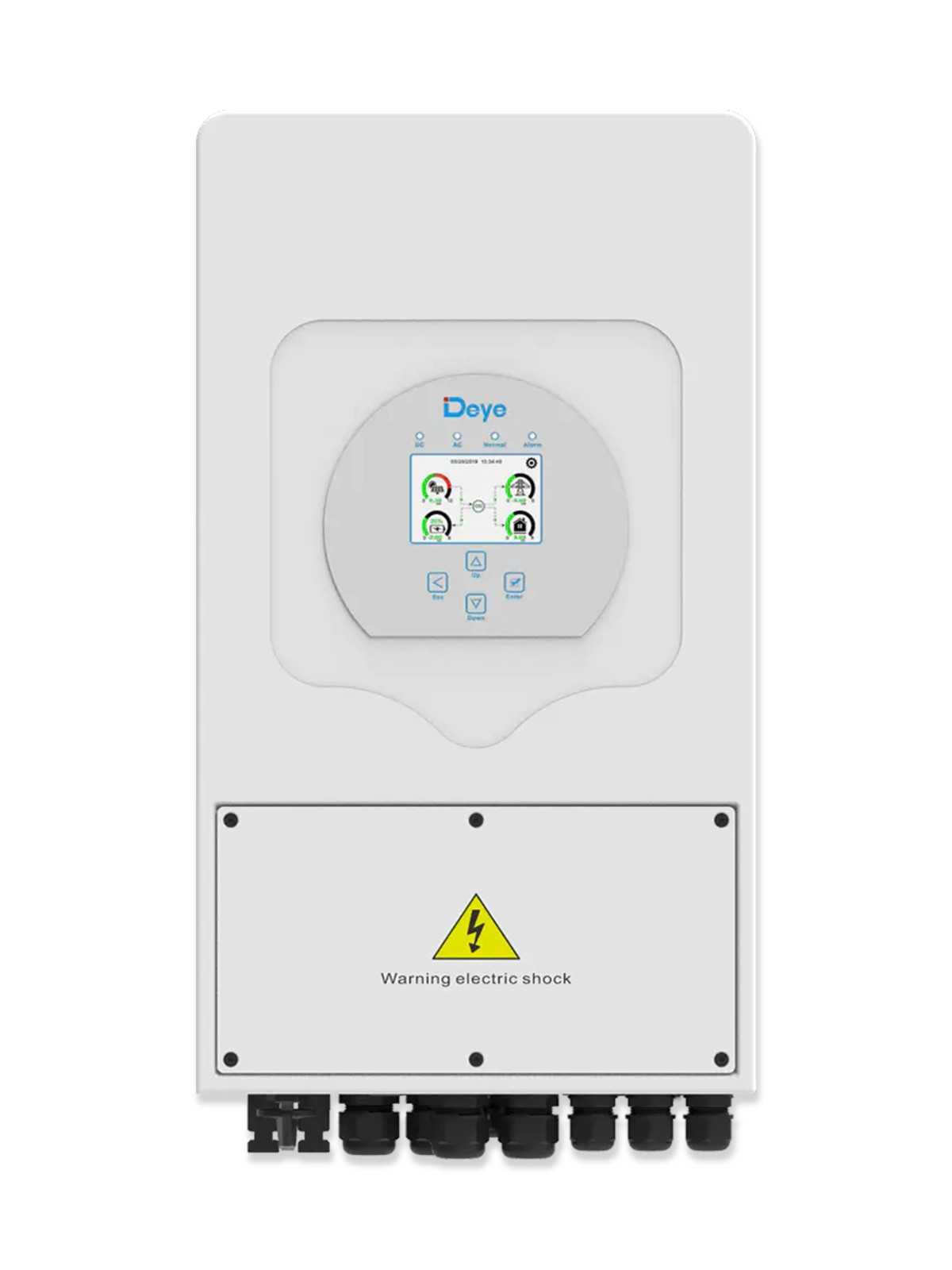

Deye 3.6 kVA - SUN-3.6K-SG03LP1-EU

The Deye 3.6 kVA - SUN-3.6K-SG03LP1-EU single-phase hybrid inverter is the ideal solution for optimizing self-consumption of solar energy in residential installations and small businesses. With an output of 3.6 kVA, this inverter guarantees efficient conversion of solar energy into usable electricity, while offering intelligent energy management. Thanks to its compatibility with storage systems, it can store excess energy for later use, reducing dependence on the power grid.

Featuring advanced hybrid technology, it adapts to a variety of configurations, from a purely stand-alone solar installation to a battery-powered solution. Its compact, modern design facilitates installation and integrates perfectly into any configuration. What's more, it features overvoltage, short-circuit and overtemperature protection, guaranteeing greater reliability and safety for your installations.

With high efficiency and optimized energy management, the Deye 3.6 kVA inverter ensures long-lasting performance, while helping to reduce your carbon footprint and save money on your electricity bill.

Help in choosing storage space

GEL (gel electrolyte) lead-acid batteries are ideal for a daily discharge of 50% of their capacity, which guarantees optimum performance. For example, if your fleet has a capacity of 4.8 kWh, it's advisable to consume no more than 2.4 kWh per day to comply with the manufacturer's recommendations. You can, however, allow for a slight margin, as these batteries can withstand faster discharges over shorter periods.

Lithium batteries, on the other hand, offer additional advantages: they discharge much faster than lead-acid batteries, and can be used up to 90% of their capacity. Lithium batteries therefore offer greater flexibility of use.

To determine your battery's capacity, simply multiply its capacity (Ah) by its voltage (V). For example, 4 x 12V 100Ah batteries connected in series will give a voltage of 48V and a total capacity of 4.8kWh.

And to make your life easier, our sizing tool will help you calculate your precise battery requirements for your stand-alone solar kit. Put your trust in our expertise and get started with a customized energy solution!

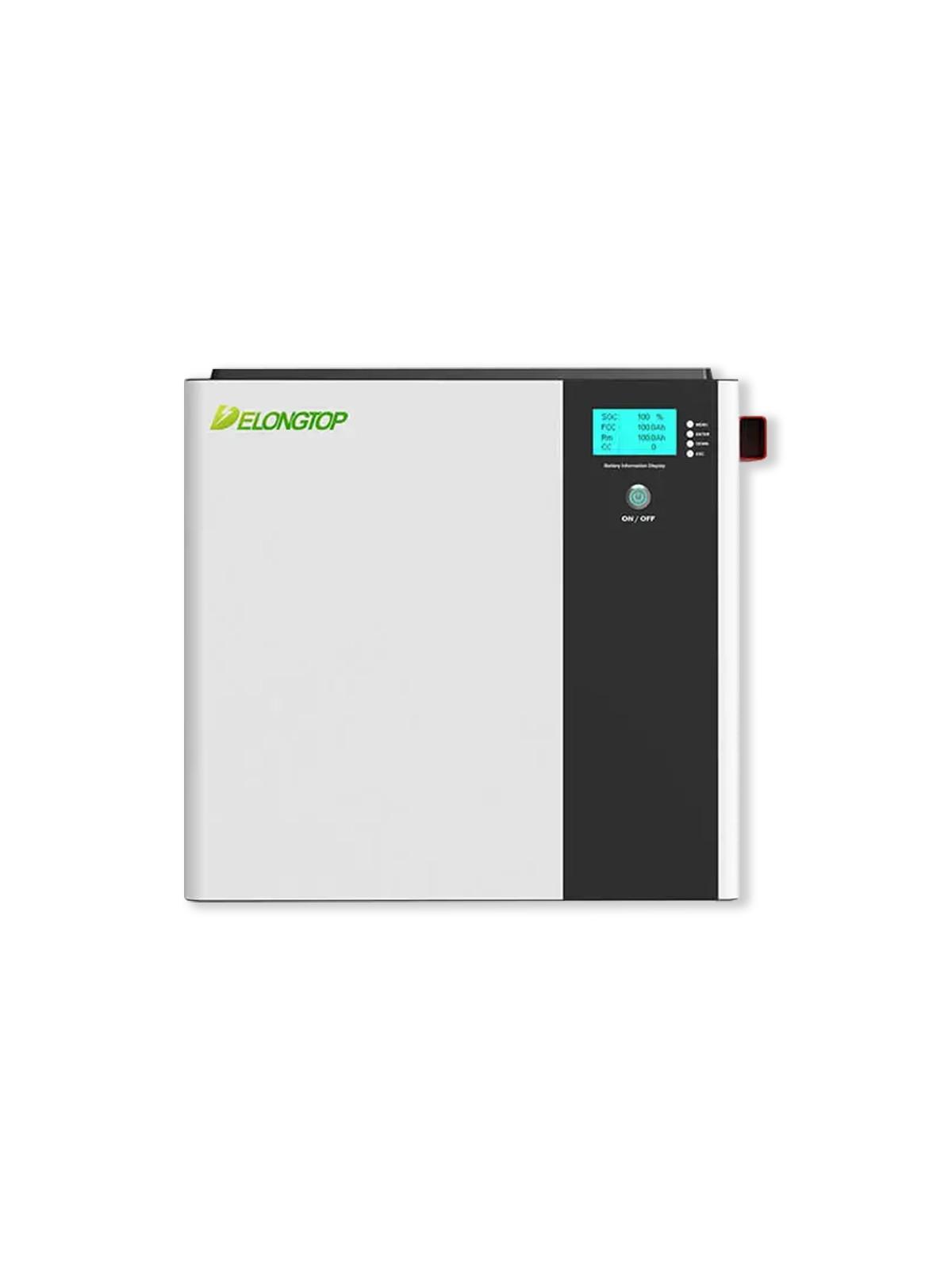

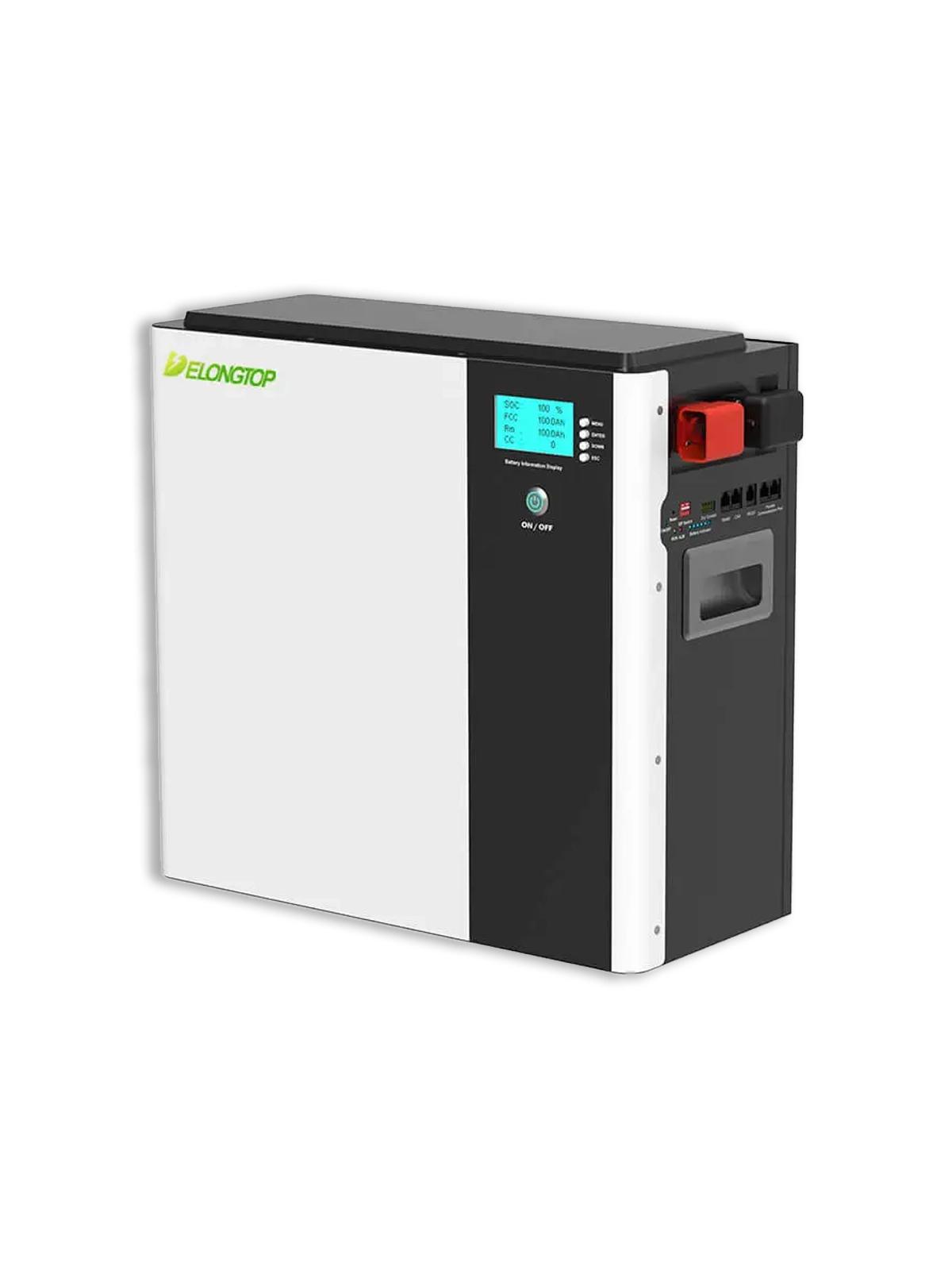

Lithium battery Delong Top Energy 51.2V 100Ah - 5,12kWh

The Delong Top Energy is a 48-51.2 V LiFePO₄ lithium battery with a nominal capacity of approx. 5.12 kWh (100 Ah) - a more compact version of Delong Top Energy's 10 kWh and 15 kWh range.

- Long-life LiFePO₄ technology

Up to over 6,500 cycles at 80% depth of discharge, i.e. over 15 years' use.

High thermal safety, very low risk of runaway.

Guaranteed longevity, stability and return on investment.

- Integrated intelligent BMS system

Protects against overloads, deep discharges, overheating, short circuits, etc.

Automatic cell balancing.

Maximum reliability and safe unattended operation.

- Extended compatibility and communication (RS232/RS485/CAN)

Easy integration with most hybrid inverters.

Real-time monitoring via communication protocol.

Easy installation, scalability and precise system control.

---

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Delong Energy 5.12kWh battery is subject to a mandatory environmental contribution. An amount of €144.50 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here Here is the reference list and the corresponding fee! When purchasing lithium batteries, please add the following product Delong Energy 5.12kWh environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

---

Personalization

Advice

Optimize your production with Tigo TS4-A-O

(available as an option)

Operation

Maximize the output of each panel by controlling the DC current before the central inverter.

Ideal for

Installations with partially shaded panels or panels exposed to variable conditions.

Benefits

• Higher yield:
• Even in shaded conditions.
• Lower cost:
• Cheaper than microinverters.
• Reduced maintenance: Fewer interventions on the roof.
