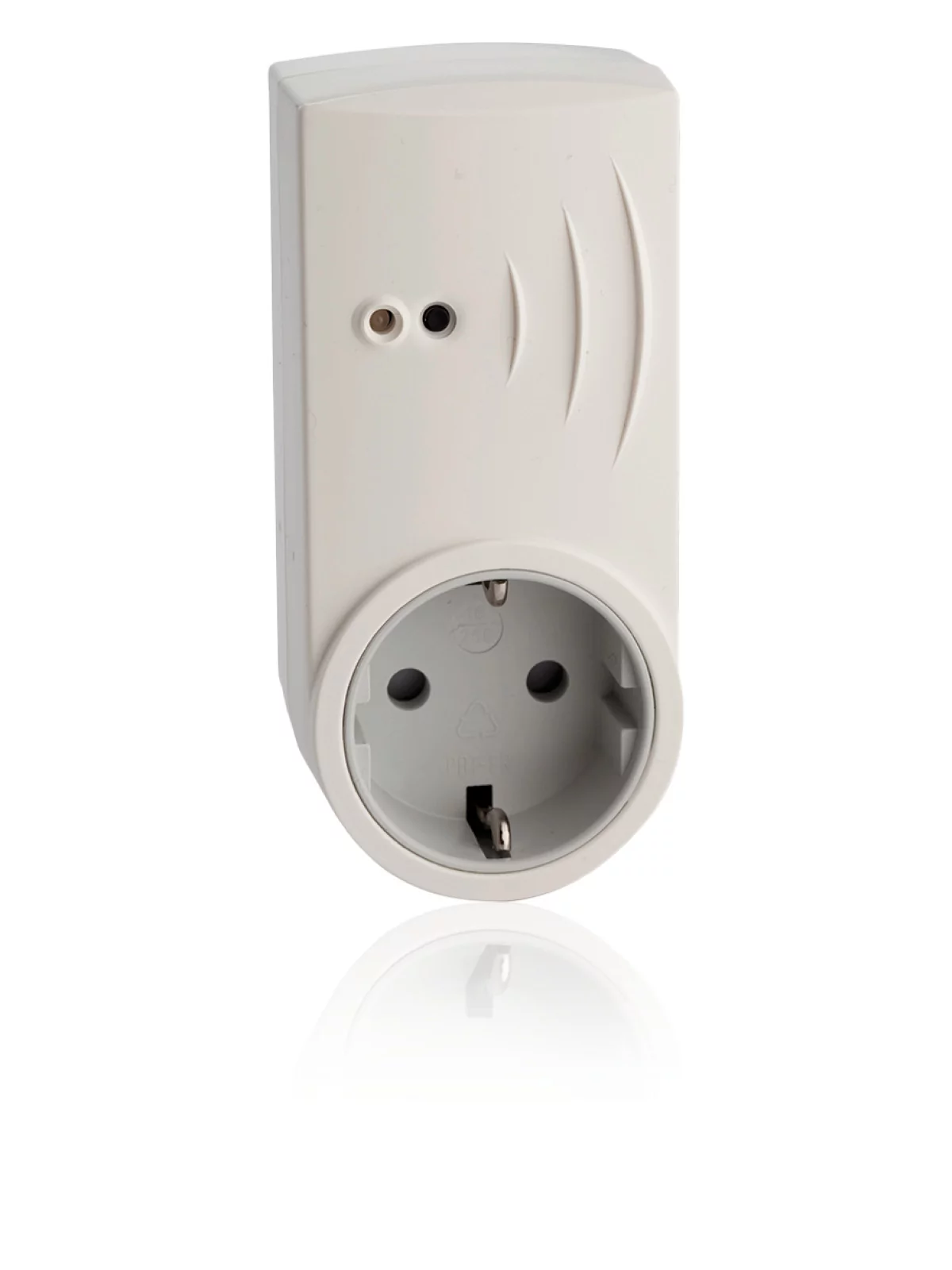

Electrical outlet with SolarEdge meter

€164.79

Reference: 09952

EAN13: 0712971134003

Wireless dry contact switch for intelligent power management.

100% secure payments

Maximizes self-consumption through intelligent consumption management

Wireless dry contact switch for intelligent power management
Suitable for controlling heat pumps
Wide input voltage range for maximum flexibility
Order via mobile apps

Schéma fonctionnement Interrupteur CA avec compteur SolarEdge

SEHAZB-SCKT-MTR-XX* Electrical outlet with meter
ELECTRICAL APPARATUS
Functional voltage range - between phase and neutral	VAC	90 - 250
AC Frequency	Hz	50/60
Maximum active power measurement	Kw	2,5
Maximum charging current	Has	13
Dry contact voltage range	VAC	No indication
COMMUNICATION
Supported communication protocol		ZigBee Home Automation
Rated transmit power	Dbm	3
Operational frequency range	Ghz	2,4 - 2,5
Outdoor range (barrier-free)	m	100
Indoor reach**	m	50
STANDARDS MET
Radio standards		ETSI EN 300 328 V 1.8.1, ETSI EN 301 489-1, ETSI EN 301 489-17
Security		EN 60950-1, EN 50371
Resistance to disturbances		EN 61000-6-2
EMC		EN 61000-6-3
MECHANICAL SPECIFICATIONS
Operating temperature range	°C	0 to +50
Protection class		IP30
Dimensions (H x W x D)	mm	110 x 50 x 40
Type of assembly		No indication

* Power outlets available for different types of connectors: XX = GB, DE, FR, IT
** Approximate values; may vary depending on installation conditions
Monitoring and certification procedures are not yet complete
