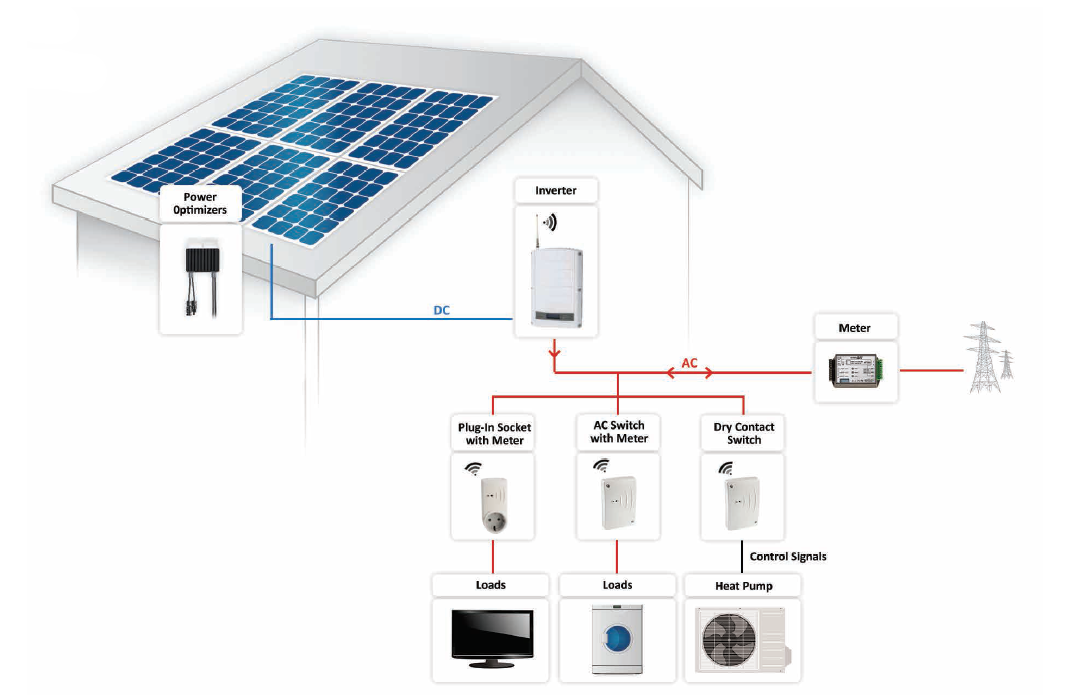

Assembly diagram
0

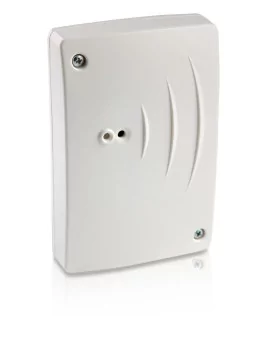

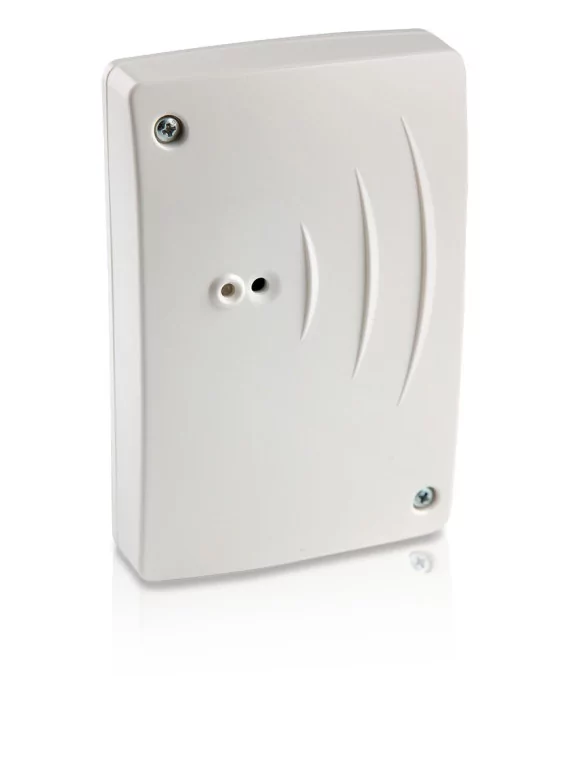

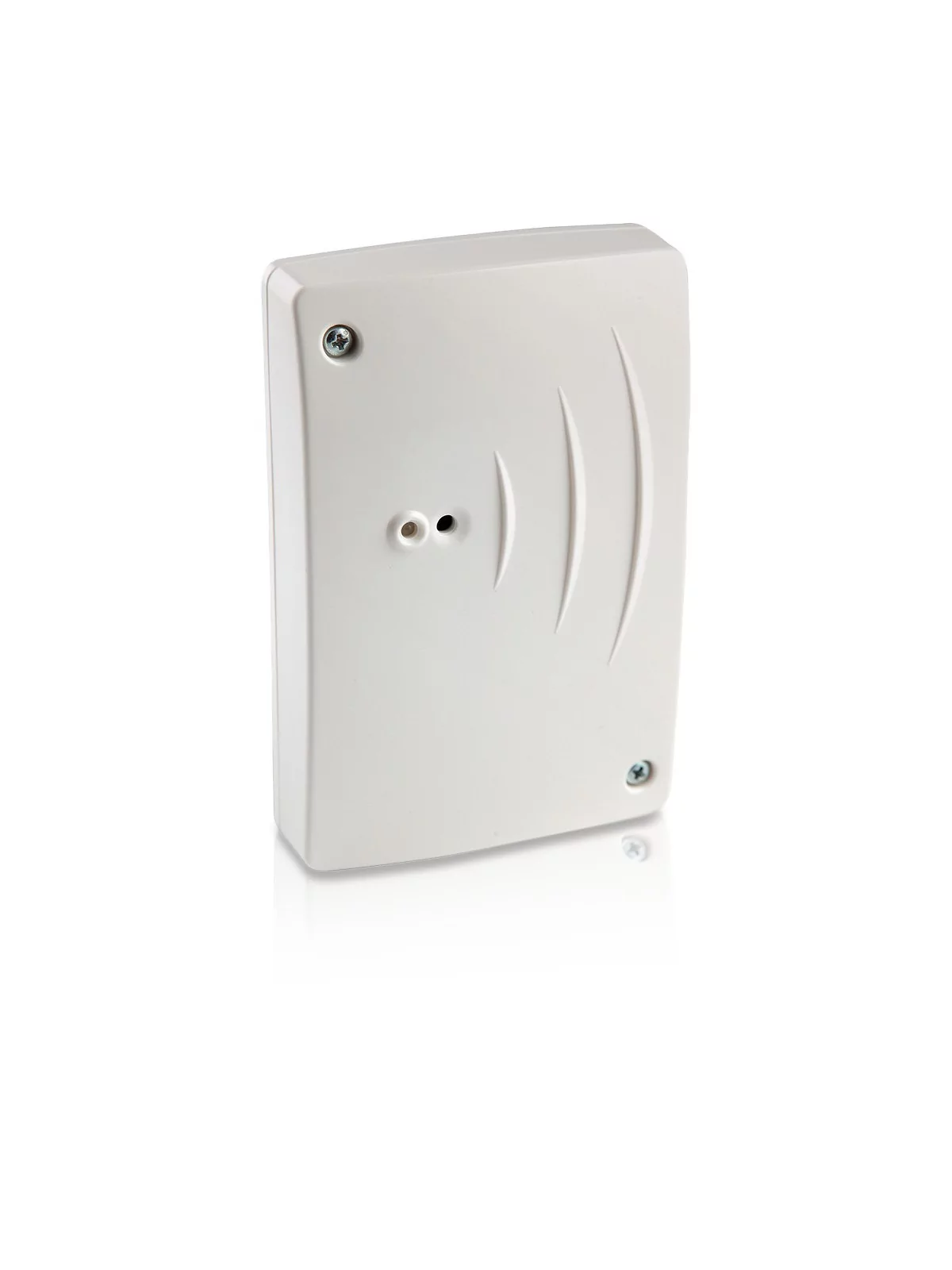

AC Switch with Meter SolarEdge
€154.30
SEHAZB-SWITCH-MTR
0712971133983
Wireless AC switch for controlling electrical devices. Device control can be done remotely according to a preconfigured schedule or dynamically by the inverter for maximized self-consumption
For more precise delivery times, you can contact us by chat or by email.
100% secure payments
" Maximize self-consumption by controlling device usage "
- Wireless AC switch for controlling electrical devices
- Device control can be done remotely according to a preconfigured schedule or dynamically by the inverter for maximized self-consumption
- Built-in energy and power consumption metering
- Provides power measurements up to 3kW
| SEHAZB-SWITCH-MTR AC Switch with Meter |
||
| ELECTRICAL SERVICE | ||
| Operating Voltage Range - Line to Neutral | VCA | 90 - 250 |
| AC Frequency | Hz | 50/60 |
| Maximum Active Power Measurement | kW | 2,5 |
| Maximum Load Current | A | 13 |
| Dry Contact Voltage Range | VCA | N/A |
| COMMUNICATION |
||
| Supported Communication Protocol | ZigBee Home Automation | |
| Nominal Transmit Power | dBm | 3 |
| Operating Frequency Range | GHz | 2,4 - 2,5 |
| Outdoor (LOS) Range | m | 100 |
| Indoor Range** | m | 50 |
| STANDARD COMPLIANCE | ||
| Radio | ETSI EN 300 328 V 1.8.1, ETSI EN 301 489-1, ETSI EN 301 489-17 | |
| Safety | EN 60335-1, EN 60335-2-30, EN 50371 | |
| Immunity | EN 55014-2 | |
| Emissions | EN 55014-1, EN 61000-3-2, EN 61000-3-3 | |
| INSTALLATION SPECIFICATIONS | ||
| Operating Temperature Range | °C | 0 à +50 |
| Protection Rating | IP30 | |
| Dimensions (H x W x D) | mm | 110 x 70 x 25 |
| Mounting Type | Wall mount | |
* Multiple plug types for various sockets: XX = GB, DE, FR, IT
** Approximate values. May differ depending on specific installation conditions
*** Pending.
SEHAZB-SWITCH-MTR
500 Items
Data sheet
- Nombre de MPPT
- 1 MPPT
Specific References
- UPC
- 712971133983
- EAN13
- 0712971133983
