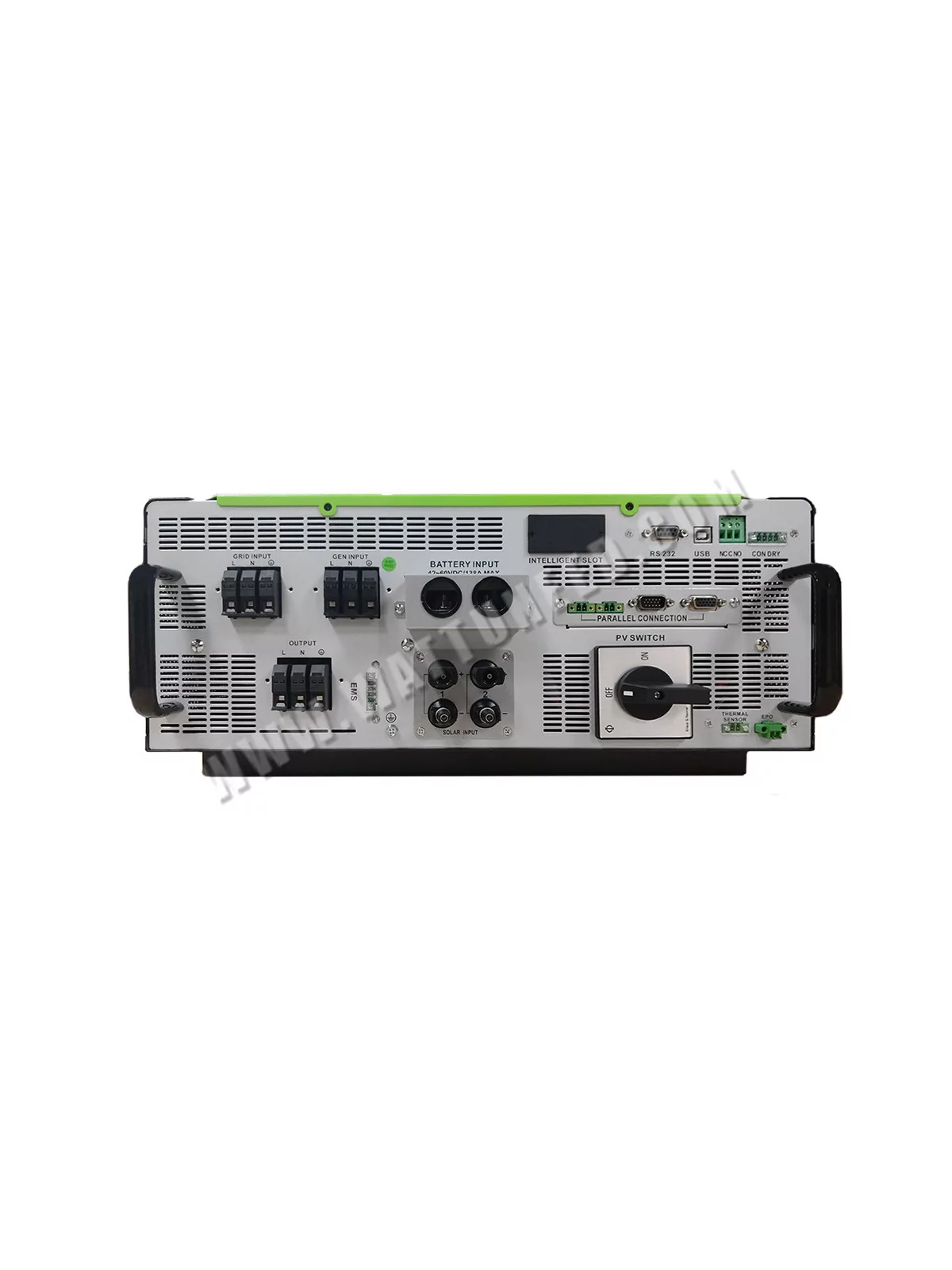

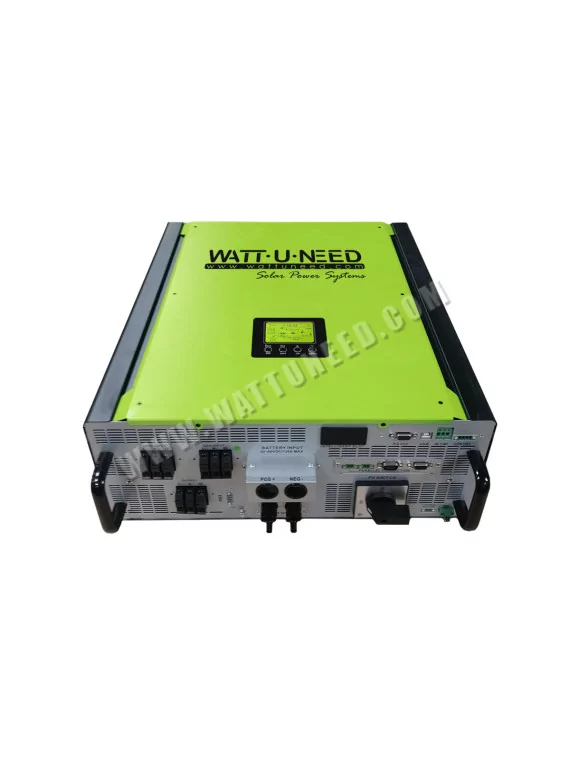

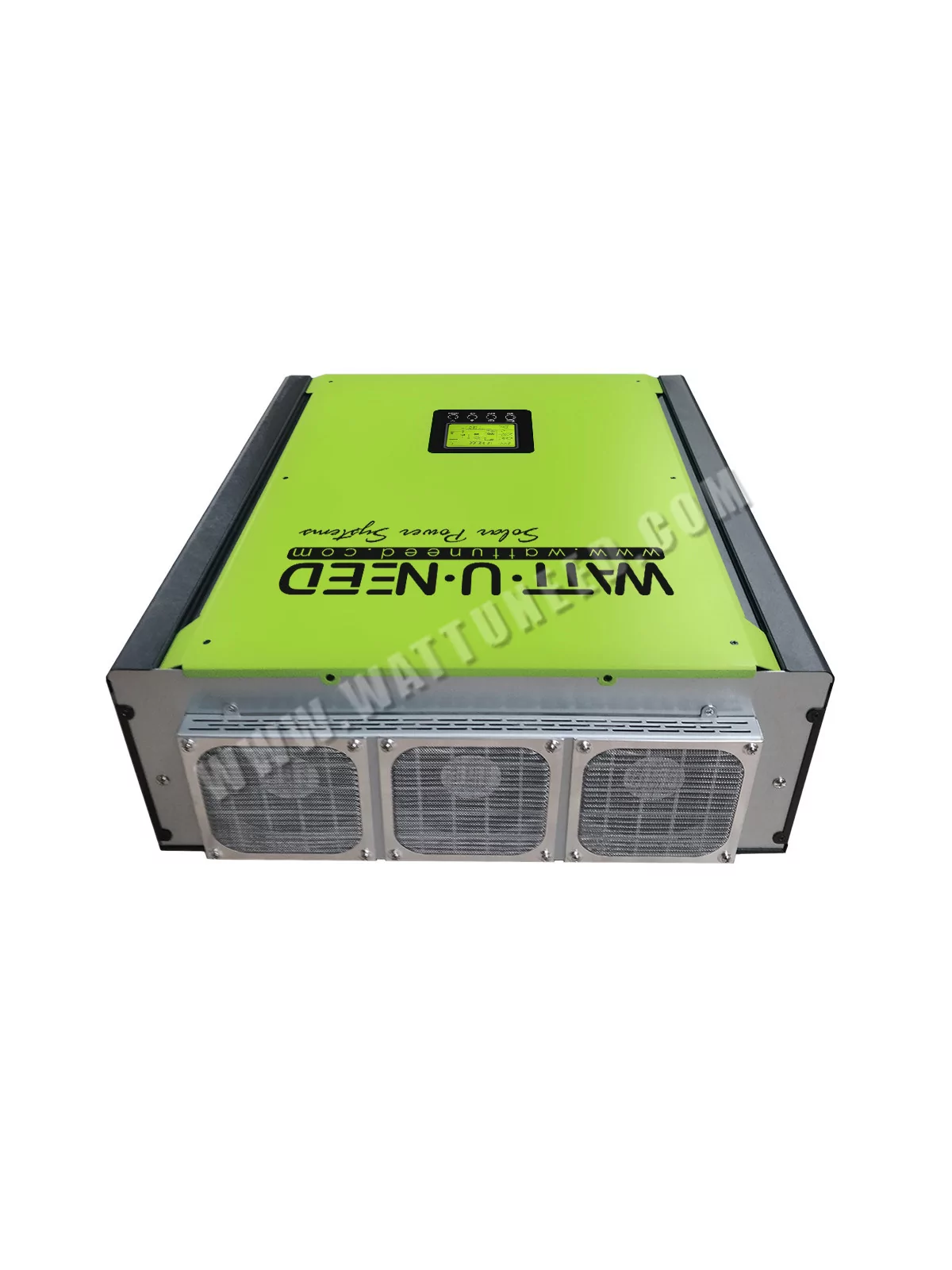

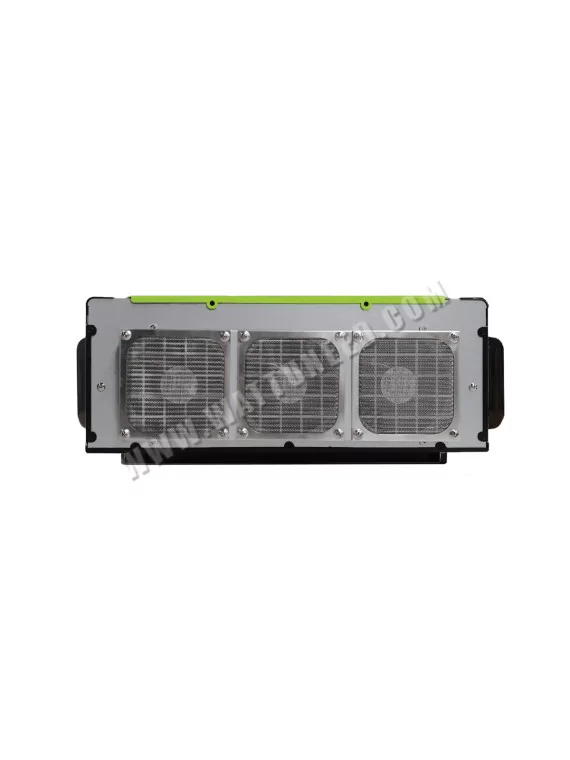

UPS hybrid 5kW injection network - storage Multisolar
€2,135.00
WUN-0818
0712971129511
-Power output (230V): 5000W
-AC charge controller: 40A (48V)
-AC pure sine output
-Controlled by microprocessor
-Double Tracker integrated MPPT (2x10A)
-Backlit LCD display
100% secure payments
Customers who bought this product also bought:
Multifunction: Connected to the network, network and connected to the network with storage battery
MultiSolar: Store your batteries and put back on the network the strict minimum, on the condition that the batteries are full.
On the other hand,. use the network to address the lack of winter production and make a little extra on batteries when rainy days follow each other.
Optimize your production to the maximum and fear no more electricity.
Just plug one or two sets of panels to the hybrid inverter
Store and later use your solar electricity.
Description

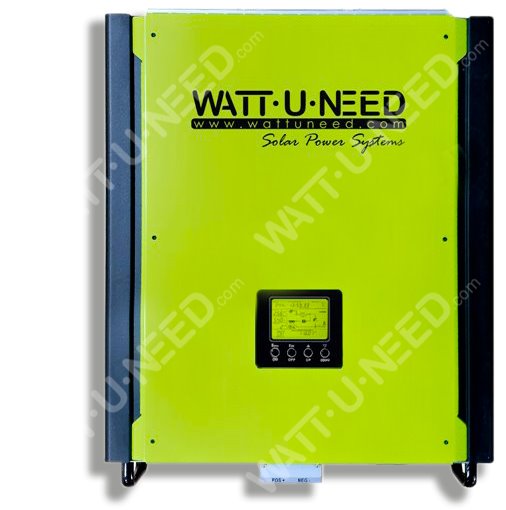

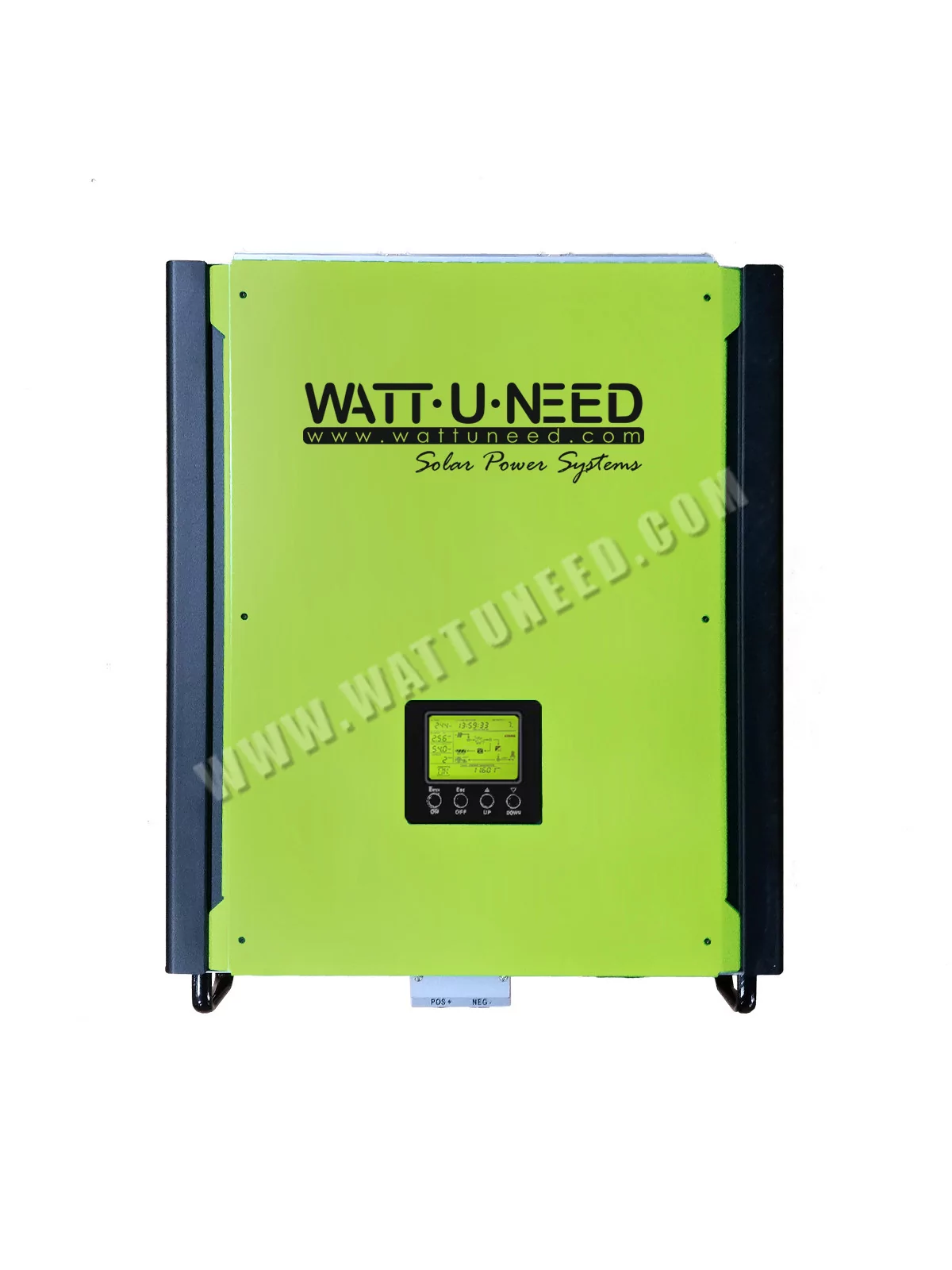

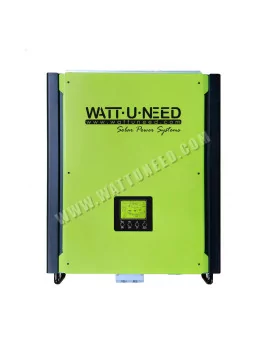

Inverter high performance MultiSolar to manage a hybrid electric system.
Connect solar panels, batteries, and optionally an entry network to power your facility
Enjoy best performance thanks to its integrated mppt tracker, as well as ease of use due to its compact design and its intuitive LCD screen.
- Pure sine wave output, 5kW
- Controlled by microprocessor for stability
- Multiple operations: connected to the network, network and connected to the network with backup power
- {Linkpopup id = 'mppt'} solar charger integrated

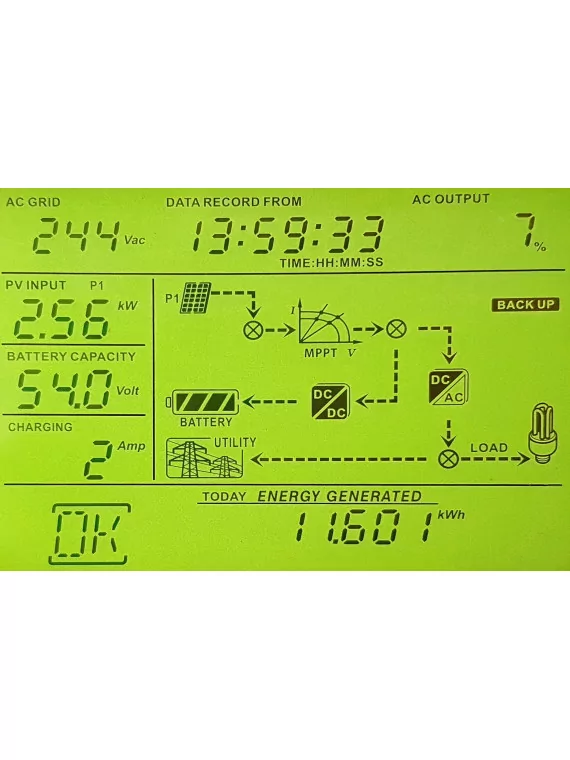

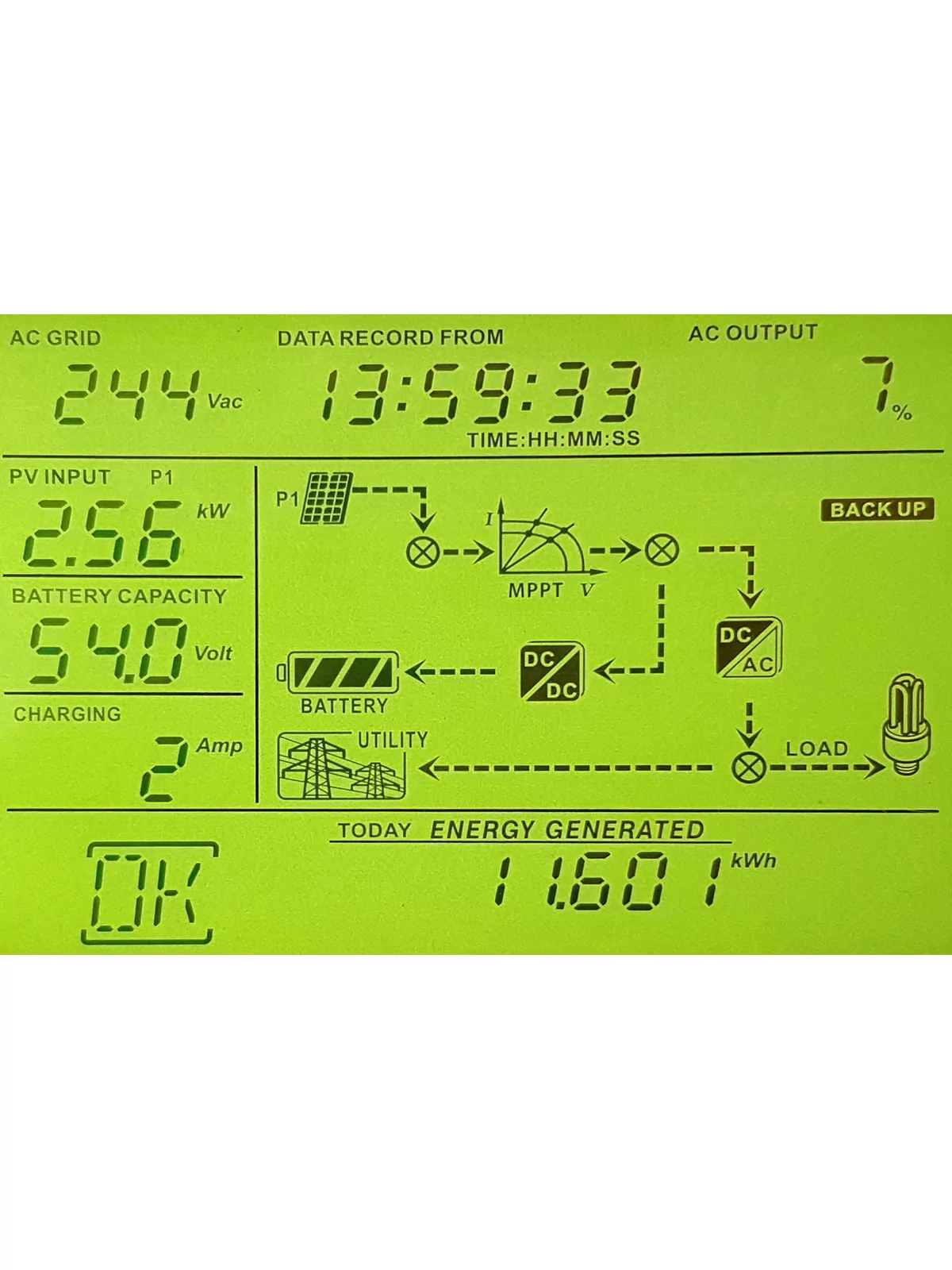

- LCD backlit for interactive and easy to use display
- Multiple means of communication
- 'Green' alternative to generators
- Load intensity adjustable by the user, of 60 A to 100 A
Characteristics of the Multisolar 5KVA
| Rated power | 5000W |
| Physical characteristics | |
| Dimension | 204.2 x 460 x 600 mm |
| Weight | 29 kg |
| Interface | |
| Communication port | RS 232/USB and CAN interface |
| Environment | |
| Moisture | 0-90% (without condensation) |
| Temperature operation | -10 ° to 55 ° C |
| Altitude | 0 - 1000 m |
Operation mode connected to the network (Grid)
| Input PV (DC) | |
| Rated voltage DC - voltage max | 720 V DC - 900 V DC |
| Starting voltage | 225 V DC - 250 V DC |
| Mppt voltage range | 250 V DC - 850 V DC |
| Current max of entry | 2 entries 2 x 10 A |
| Output (AC) consumer | |
| Nominal voltage output | 208/220/230/240 V AC |
| Output voltage range | 184-265 V AC |
| Rated output | 21A |
| Performance | |
| Maximum performance | > 96% |
| Performance rated power | > 95% |
Operation mode off-grid (Off Grid)
| Input AC | |
| Starting voltage | 120-140 V AC / 185 V AC |
| Entry accepted voltage range | 175-280 V AC |
| Input current max AC | 40A |
| Input PV (DC) | |
| Max voltage | 900 V DC |
| Mppt voltage range | 250 V DC - 850 V DC |
| Current max of entry | 2 entries 2 x 10 A |
| AC mode battery output | |
| Nominal voltage output | 202/208/220/230/240 V AC |
| Output signal | Pure sine |
| Performance (DC to AC) | 93% |
Hybrid mode operation
| Input PV (DC) | |
| Rated voltage DC - voltage max | 720 V DC - 900 V DC |
| Start voltage | 225 V DC - 250 V DC |
| Current max of entry | 2 entries 2 x 10A |
| Output AC consumers | |
| Nominal output voltage | 202/208/220/230/240 V AC |
| Output voltage range | 184 264.5 V AC |
| Nominal output current | 21A |
| Input AC | |
| Start AC voltage | 120 V AC - 140 V AC |
| Input voltage range | 170-280 V AC |
| Intensity max input AC | 40A |
| AC mode battery output | |
| Voltage output | 202/208/220/230/240 V AC |
| Performance (DC to AC) | 93% |
| Battery and charger | |
| Rated voltage DC | 48 V DC |
| Load current max. |
Default: 60A,. |
Diagram of operation of the kit solar 1500Wc poly - 200Ah48V - 3000W
 |
 |
 |
 |
Remote control and configuration of the inverter
Connect the inverter to your computer with the USB cable provided.
SolarPower software allows control and monitoring of multiple devices via the local network, internet or USB.
Alert notifications, screen pop up, sms and email.
Software
SoftWare1.17SP7
WUN-0818
Data sheet
- Inverter power
- 5000VA
- Voltage
- 48V
- Power
- 5000 VA
- Monophasé / Triphasé
- Monophasé
- Nombre de MPPT
- 2 MPPT
Specific References
- UPC
- 712971129511
- EAN13
- 0712971129511
