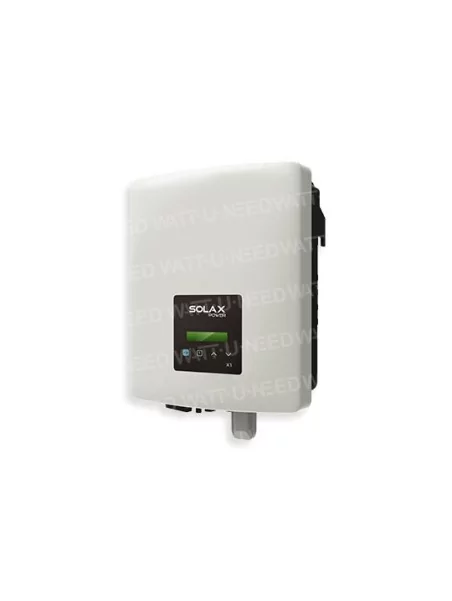

SolaX X1 Mini 1.1 single-phase inverter

Solax

328,40 € tax incl.

The SolaX X1 Mini range of inverters is designed for small photovoltaic panels. With a start voltage of 65V and a maximum efficiency of 98%, the X1 Mini promises uneven performance, allowing you to harvest the maximum amount of energy possible from your PV system.



More details

More info

Solax X1 Mini inverter

Presentation of: Solax X1 Mini inverter



Perfect for small photovoltaic panels

The X1 Mini inverter is the perfect solar solution for small photovoltaic solar panels ranging from 0.6 kW to 3.6 kW. With a maximum efficiency of 98%, it is one of the most efficient small inverters available on the market today.



Small, light and quiet

The X1 Mini was designed to be installed in the smallest of spaces, with a footprint of only 35cm and weighing only 7kg, the X1 Mini is small but does not lack performance.



Install indoors or outdoors

The X1 Mini is rated IP66, which means it can be installed indoors or outdoors, giving you the option to choose where to install the system.


Characteristics



entrance
Maximum power of photovoltaic panels (Wc)1650
Maximum CC tension (V)400
Nominal CC service voltage (V)360
Maximum entry current (A)12
Short-circuit current max. (A)14
MPPT voltage range (V)55-380
Start-up service voltage (V)70
MPP/MPPT follow-up number1
Channels by MPP/MPPT tracking1
EXIT AC
Rated AC Power (VA)1100
Maximum AC Power (VA)1210
Nominal voltage of the electrical grid (AC voltage range)220/230/240; 180-280
Frequency/Nominal Range of The Power Grid (Hz)50/60; ±5
Current AC nominal (A)4,78
Current AC max. (A)5,3
Moving power factor0.8 capacitive - 0.8 inductive
THDi, rated power (%)<3
yield
MPPT return (%)99,9
European return (%)95,5
Maximum return (%)97,1
ABSORBED POWER
Sleep consumption (night) (W)<1
Standards
Surge protectionYes
Protection from over-intensitiesYes
Monitoring of isolated resistance CCYes
Monitoring the fault current to the earthYes
Monitoring CC injectionYes
Differential circuit breaker protectionYes
securityIEC 62109-1/-2
Emc61000-6-1, 61000-6-2, 61000-6-3, 61000-3-2, 61000-3-3
certificationG98, AS 4777, VDE4105, 50549, IEC 0-21
ENVIRONMENTAL LIMITS
Degree of protection (according to IEC 60529)IP65
Service temperature range (°C)-25 to 60 (downgrade to 45)
Maximum operating altitude (m)<000
Humidity (%)0 to 100 (condensation)
Storage temperature (°C)-25 ~ 60
Typical sound level (dB)25
DIMENSIONS AND WEIGHT
Dimensions (l x L x P) (mm)267 x 328 x 116
Weight (kg)6
Cooling typenatural
topologyNot isolated
Communication interfacesPocket Wi-Fi (optional)
Local pocket network (optional)
Pocket GPRS (optional)
Counter (optional)
RS485
DRM
USB for update
LCD screenYes
Standard warranty (years)5 - 10

Specifications

MPPT/PWMMPPT
Weight6 kg
Monophasé / TriphaséMonophasé
Nombre de MPPT1 MPPT
Width267 mm
Height328 mm
Thickness116 mm
Inverter power1100 VA
Protection IPIP 66
