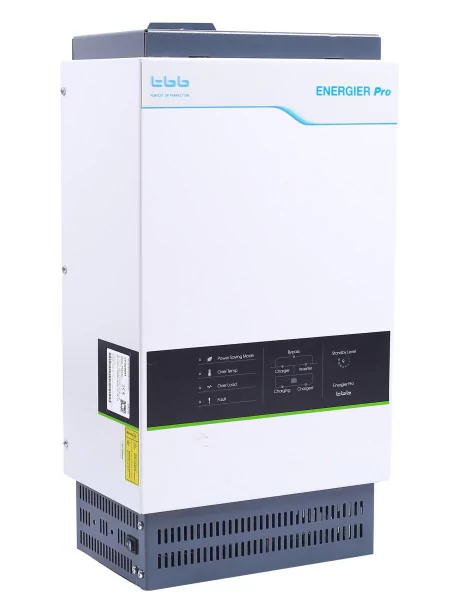

Inverters TBB CF 24V /48V - 5000 to 8000W

TBB Power

1 893,70 € tax incl.

Options

Converter and loader TBB CF - 5000 to 8000W
This inverter combines a heavy-duty box:

  • a converter pure sine
  • a battery charger
  • AC transfer switch.

It is particularly suitable for places with limited access to the electricity grid.

Please choose your model in the options!

TBB





More details

More info

Gathered in a ultra tough case a converter and a charger!



The solution for places with limited access to the public network

Inverter CF integrates a sophisticated charger, a converter to sine waves and an AC transfer switch at high speed in a single case.

It is ideal for locations where the public of electricity or limited or unreliable network access and can be used with a generator.
So, the inverter is able to manage 2 independent sources of input and switch automatically from one to the other (ex: network and generator) while ensuring power supply particularly demanding devices such as air conditioners.

Robustness and performance

The unit is designed to deal with particularly demanding environments: places rugged, dust, insects, heat,...

Characteristics of the product

  • Output wave pure sine with exceptional peak power
  • Efficiency up to 95%,
  • Low consumption,
  • Fully programmable
  • Suitable for use in areas with high ambient temperature



Technical characteristics



ModelCF-24V-90-5000
CF-48V-40-5000

 CF-48V-50-6000

CF-48V-60-8000
CONVERTER
Nominal voltage of the system24V / 48V48V48V
Output voltage230VAC ± 2%
Output frequency50 Hz ± 0.1%
Power output of the converter to 40 ° (W)5000 W6000W8000W
Efficiency max12Vdc: 89% / 24Vdc: 92% / 48Vdc: 95%
Consumption standby26 W28 W30 W
Consumption standby - mode power save6.5 W7 W7.5 W
Overload and overheating protectionAutomatic disconnection with 3 tries to reboot
Protection against short-circuitsAutomatic disconnection with 3 tries to reboot
CHARGER
Input ACPower supply voltage range: 195VAC - 264VAC / input frequency: 45 - 65 Hz
Battery charge current90A / 40A 50A60A
Battery typeAGM / GEL / OPzS / LFP / Flooded / carbon Lead
GENERAL
CaseSteel
Battery connection2 x nuts M8
Dimensions550 x 285 x 191.5 mm
Weight35 kg40 kg46 kg
CoolingFan
ProtectionIP20



Data sheets and documentation

Specifications

Voltage12V, 24V, 48V
Power2000-6000 VA
Monophasé / TriphaséMonophasé
Inverter power5000VA, 4000VA, 3000VA, 2000VA, 6000VA
