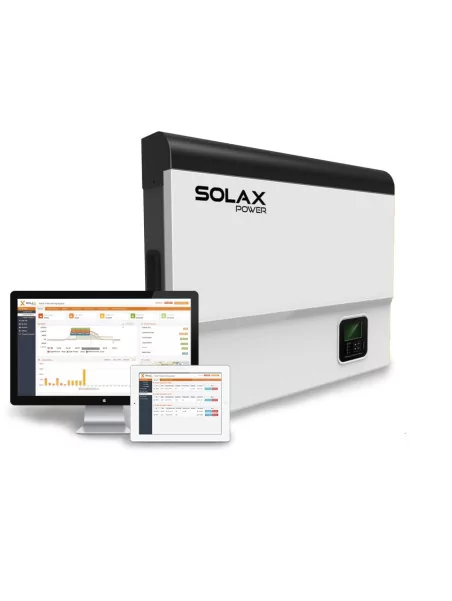

X-Hybrid converter SolaX 5000E View full size

X-Hybrid converter SolaX 5000E


2 840,87 € tax incl.

With the Solax X-Hybrid, it is solar energy on demand thanks to its intelligent energy management system.

This product is no longer manufactured.


It is replaced by high voltage inverters:

• Solax X3 Hybrid Three-phase HV

• SolaX X1 Hybrid Single-phase HV

More details

More info

Hybrid converter Solax 3000

"Much more than a simple inverter"

The innovative X-Hybrid is an intelligent energy management system that stores excess energy in batteries for later use.

The X-Hybrid stores excess energy in batteries for later consumption, enabling consumers to consume solar energy at any time by storing the unused energy. It converts and transmits solar energy to where and when it is needed. The X-Hybrid system is also available with an integrated SAE, enabling you to have the stored energy in case of network failure.

His advantages

  • Increased self-consumption by more than 80%

  •  Limitation of exports and consumption of water.

  • Latest Battery Technology

  • Excellent performance

  • Remote control via wifi monitoring

  • 10 years warranty

Max recommended DC Power [W]330040005000
Max DC Voltage [V]550
Nominal DC operating voltage [V]360
MPPT voltage range [V]125-530
Max. input current [A]1212/1212/12
Max. short circuit current [A]1515/1515/15
No. of MPP trackers122
Strings per MPP tracker111
AC Nominal Power (W)300036804600
Nominal AC Voltage; Range (V); Frequency[Hz]230,180~270; 50/60
AC Nominal Current (A)131620
Max AC Current (A)14.41621.7
Total Harmonic Distortion (THD) [%]< 3
Power Factor (Rated Power)1
Displacement power factor0.8 leadlng to 0.8 lagging
MPPT efficiency [%]99.9
Euro efficiency [%]97.0
Max efficiency [%]97.6
Standby Consumption [W]< 7
LCDBacklight 16*4 character
CommunicationsEthernet/WiFi/ Dry Contact/Meter(optional)
Led light4
Compatible Battery TypeLeading-acid battery/lithium battery
Nominal Battery Voltage [V]48
Battery Voltage Range [V]40-60
Max Charging Current [A]50 (adjustable)
Charging Curve3-stage adaptive with maintenance
Over Current Protection/Over Temperature ProtectionYes
Communication InterfacesCan/RS232
DC switchOptional
Max No. of Supported External Charger0
Operating Temperature Range [° C]-10~+50 (derating at 40)
Storage Stability Range [° C]-20~+60
Altitude Limit [m]<2000
Cooling ConceptForced airflow
Noise Emission (typical) [dB]<40
Humidity [%]0~95 (non-condensing)
Protection ClassIP20 (indoor use)
Overvolatge CategoryIII (electic supply side), II (PV SIDE)
EMC StandardIEC61000-6-1/2/3
Warranty [years]5-10
Dimensions W*H*D [mm]700*591*151
Weight [kg]27.7
CertificationVDE 4105 / AS/NZS4777.2 / C10 11 / EN50438-NL / EN50438-DK / OVE/ONORME 8001/ G83,G59 / CEI 0-21
EPS Rated Power [VA]200020002000
EPS rated Voltage[V], Frequency [Hz]230,50/60
EPS Rated Current [A]
EPS Peak Power [A];Duration [s]1.5xRrated, 101.5xRrated, 101.5xRrated, 10
Total Harmonic Distortion (THD) [%]< 3
Switch Time [s]< 3


Monophasé / TriphaséMonophasé
Nombre de MPPT1 MPPT
Inverter power5000VA
Grid reinjectionWith
