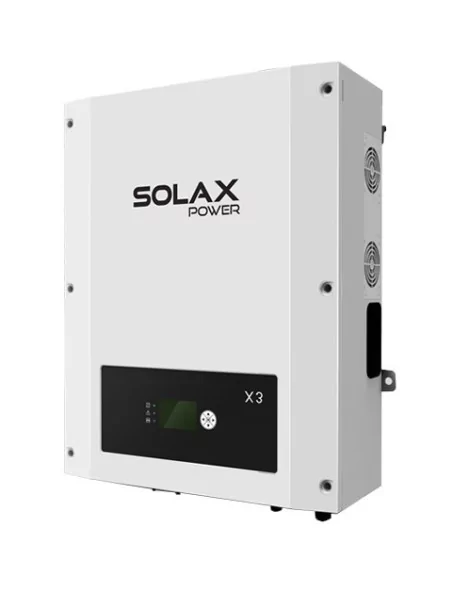

Three-phase Solar Inverter SolaX X3 ZDNY-TL20000 View full size

Three-phase Solar Inverter SolaX X3 ZDNY-TL20000

Solax

2 730,53 € tax incl.

SolaX three-phase inverter X3 ZDNY-TL20000 : maximum efficiency of 99.9%, maximum DC input voltage of 1000V and remote control via X-Cloud.

Available on order

More details

More info

Solax X3 ZDNY

" Reliability, quality and efficiency "

SolaX have developed a range of three phase inverters unrivalled in the industry for their quality, reliability and effciency.

The SolaX three-phase inverters boast a wide MPPT voltage range to allow for more energy harvesting and have a maximum input voltage of 1000V. In addition, all SolaX three-phase inverters are IP65 rated, have an integrated DC switch, WIFI as standard and an Opticool temperature controlled fan.

X3 ZDNY-TL10000

X3 ZDNY-TL12000

X3 ZDNY-TL15000

X3 ZDNY-TL17000

X3 ZDNY-TL20000

INPUT (DC)
Max.recommended DC power [W]1026012300153701742020500
Max. input DC voltage [V]10001000100010001000
Max. input current [A]A:22/B:11A:22/B:11A:22/B:22A:22/B:22A:22/B:22
MPPT voltage range [V]320-800380-800350-800400-800400-800
Start input/output voltage [V]220/400220/400220/400220/400220/400
Number of MPP tracker/strings per MPP tracker2/A:3 B:12/A:3 B:12/A:3 B:32/A:3 B:32/A:3 B:3
OUTPUT (AC)
AC norminal power [VA]1000012000150001700020000
Max. AC power [VA]1000012000150001700020000
Norminal AC voltage; range [V]50; 44-55 / 60;55-65
AC grid frequency; range) [Hz]3/N/PE 230/400; 160-280
Max. AC current [A]1620242529
Power factor (full load)0.9 leading ~ 0.9 lagging
Total harmonic distortion(THD) [%]<3
POWER CONSUMPTION
Standby power [W]<10
EFFICIENCY
MPPT efficiency [%]99.9
Euro efficiency [%]97.6
Max. efficiency [%]98.2
SAFETY & PROTECTION
Over voltage protectionYes
Over current protectionYes
DC isolation impedance monitoringYes (optional)
Ground fault current monitoringYes
DC injection monitoringYes
RCD protectionYes
SafetyIEC62109-1/IEC62109-2/AS3100
EMCEN 61000-3-2/EN 61000-3-3/EN 61000-3-11/EN 61000-3-12/EN 61000-6-2/EN 61000-6-3
CertificationG83;G59;VDE0126;VDE4105;CQC;IEC62172;IEC62116;IEC61683;IEC60068
ENVIRONMENT LIMITS
Protection classIP65
Operating temperature[°C]-25~ +60(derating at 45)
Humidity[%]0~95 (no condensation)
Attitude[m]2000
Storage temperature[°C]-20~+60
Noise emission[dB]<50
DIMENSION & WEIGHT
Dimensions(W*H*D) [mm]513 x 651.5 x 207
Weight[Kg]484850.550.551
GENERAL DATA
TopologyTransformerless
Communication interfaceRS485 / RS232 / WIFI (optional) / DRM
DisplayBacklight 128*64 point LCD
Standard warranty [years]5-10 (Dependent On Territory)
Cooling typeForced-cooling

Specifications

MPPT/PWMMPPT
Monophasé / TriphaséTriphasé
Nombre de MPPT2 MPPT
Inverter power20000VA
