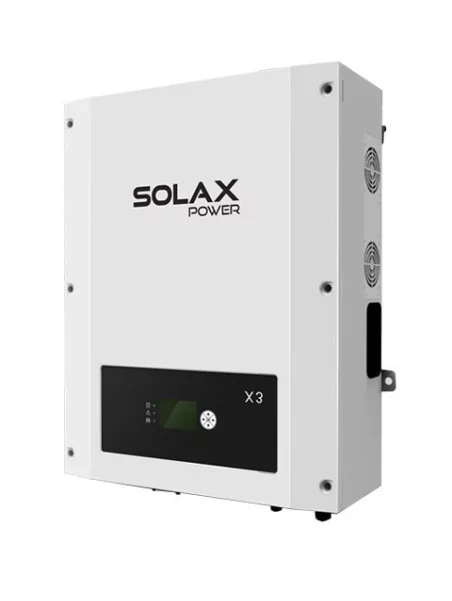

Three-phase Solar Inverter SolaX X3 ZDNY-TL10000 View full size

Three-phase Solar Inverter SolaX X3 ZDNY-TL10000

Solax

2 290,20 € tax incl.

Inverter SolaX three-phase X 3 ZDNY-TL10000: maximum efficiency of 99.9%, a maximum DC input voltage of 1000V and a remote control via X-Cloud.

Disponible sur commande

More details

More info

Solax X3 ZDNY

Reliability, quality and efficiency

SolaX has developed a range of uneven three-phase inverters in the industry for their quality, their reliability and their effciency.

The three-phase inverter SolaX provide a broad MPPT voltage range for a more important energy recovery and a maximum voltage of 1000V. In addition, all three-phase inverter SolaX conform to IP65 standard, have an integrated DC switch, wireless standard and a temperature control Opticool fan.

X 3 ZDNY-TL10000X 3 ZDNY-TL12000X 3 ZDNY-TL15000X 3 ZDNY-TL17000X 3 ZDNY-TL20000
INPUT (DC)
Power recommended maximum DC [W]1026012300153701742020500
Maximum voltage input DC [V]10001000100010001000
Maximum input current [A]A:22 / B:11A:22 / B:11A:22 / B:22A:22 / B:22A:22 / B:22
Voltage [V] MPPT range320-800320-800320-800400-800400-800
Start-up input voltage / output [V]220/400220/400220/400220/400220/400
Number of MPP string by MPP tracker2 / A:3 B:12 / A:3 B:12 / A:3 B:12 / A:3 B:12 / A:3 B:1
OUTPUT (AC)
AC nominal power [goes]1000012000150001700020000
Maximum AC power [goes]1000012000150001700020000
Nominal AC voltage; range [V]50; 44-55 / 60; 55-65
Frequency of the AC network; range) [Hz]3/N/PE 230/400; 160-280
Alternating current [A]1620242529
Power factor (full load)0.9 ahead ~ 0.9 late
Total harmonic distortion (THD) [%]< 3
ENERGY CONSUMPTION
Standby power [W]< 10
EFFICIENCY
Efficiency [%] MPPT99.9
Efficiency European standards [%]97.6
Maximum efficiency [%]98.2
SECURITY AND PROTECTION
Surge protectionYes
Over-current protectionYes
The impedance of DC insulation monitoringYes (optional)
Current to Earth monitoringYes
Monitoring of injection CCYes
RCD protectionYes
SecurityIEC62109-1/IEC62109-2/AS3100
EMCIN 61000-3-2/EN 61000-3-3/EN 61000-3-11 IN 61000-3-12/EN 61000-6-2/EN 61000-6-3
CertificationG83; G59; VDE0126; VDE4105; CQC; IEC62172; IEC62116; IEC61683; IEC60068
LIMIT OF ENVIRONMENT
Protection classIP65
Operating temperature [° C]-25 ~ + 60 (downgrading to 45)
Humidity [%]0 ~ 95 (without condensation)
Attitude [m]2000
Storage temperature [° C]-20 ~ + 60
Noise emission [dB]< 50
DIMENSION AND WEIGHT
Dimensions (W * H * D) [mm]513 x 651.5 x 207
Weight (kg]484850.5

50.5

51
GENERAL DATA
TopologyWithout transformer
Communication interfaceRS485 / RS232 / WIFI (optional) / DRM
DisplayBacklight 128 * 64 points LCD
Standard warranty [years]5-10 (dependent territory)
Type of coolingForced cooling

Specifications

MPPT/PWMMPPT
Monophasé / TriphaséTriphasé
Nombre de MPPT2 MPPT
Inverter power10000VA
