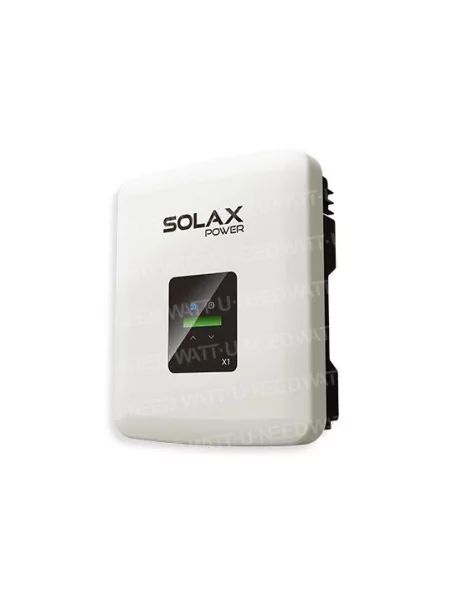

SolaX X1 Air 2.5 single-phase inverter

Solax

449,40 € tax incl.

Solax has developed a range of industry-unmatched single-phase inverters for quality, reliability and efficiency.



More details

More info

SolaX single-phase X1 Air

Presentation: SolaX single-phase X1 Air

Inverter connected to the network

Solax has developed a range of industry-unmatched single-phase inverters for quality, reliability and efficiency. SolaX single-phase inverters offer a wide range of MPPT voltage to allow for better energy recovery and have a maximum input voltage of 580 V, with a maximum efficiency of 97.1%. In addition, SolaX single-phase inverters meet IP65 standards, do not have an internal fan, and come with the optional "Plug-Play" Wi-Fi.



Perfect for residential photovoltaic panels

The X1 Air is the ultimate small residential solar inverter, perfectly designed for homes with solar panels on one side of the roof. The X1 Air is also rated IP65, which means it can be installed outdoors and has Wi-Fi capability, which means you can monitor your solar production from anywhere in the world.



Simple, reliable, efficient

The SolaX X1 Air is one of the most efficient residential chain solar inverters available on the market today, with an efficiency of 97.1% and with a maximum continuous voltage of 580V, you can make sure you get the most out of your solar energy.



Install indoors or outdoors

The X1 Air is rated IP65, which means it can be installed indoors or outdoors, allowing you to choose where to install the system.


Characteristics



entrance
Maximum power of photovoltaic panels (Wc)3750
Maximum CC tension (V)600
Nominal CC service voltage (V)360
Maximum entry current (A)12
Short-circuit current max. (A)14
MPPT voltage range (V)70-580
Start-up service voltage (V)80
MPP/MPPT follow-up number1
Channels by MPP/MPPT tracking1
EXIT AC
Rated AC Power (VA)2500
Maximum AC Power (VA)2750
Nominal voltage of the power grid (AC voltage range) (V)220/230/240; 180-280
Frequency/Nominal Range of The Power Grid (Hz)50/60; ±5
Current AC nominal (A)10,9
Current AC max. (A)12
Moving power factor0.8 capacitive - 0.8 inductive
THDi, rated power (%)<2
yield
MPPT return (%)99,9
European return (%)96,8
Maximum return (%)97,1
ABSORBED POWER
Sleep consumption (night) (W)<1
Standards
Surge protectionYes
Protection from over-intensitiesYes
Monitoring of isolated resistance CCYes
Monitoring the fault current to the earthYes
Monitoring CC injectionYes
Differential circuit breaker protectionYes
securityIEC 62109-1/-2
EmcIN 61000-6-2, 61000-6-3, 61000-3-2, 61000-3-3
certificationG98, AS 4777, VDE4105, 50549, IEC 0-21
ENVIRONMENTAL LIMITS
Degree of protection (according to IEC 60529)IP65
Range of service temperatures (C)-25 to 60 (downgrade to 45)
Maximum operating altitude (m)<000
Humidity (%)0 to 100 (condensation)
Storage temperature (C)-25 - 60
Typical sound level (dB)25
DIMENSIONS AND WEIGHT
Dimensions (L x l x P) (mm)402 x 323 x119
Weight (kg)10,5
Cooling typenatural
topologyNot isolated
Communication interfacesPocket Wi-Fi (optional)
Local pocket network (optional)
Pocket GPRS (optional)
Counter (optional)
RS485
DRM
USB for update
LCDYes
Standard warranty (years)5 - 10 years old

Specifications

MPPT/PWMMPPT
Monophasé / TriphaséMonophasé
Nombre de MPPT1 MPPT
Inverter power2500VA
