Hybrid Inverter BatterX BAT500X

BatterX

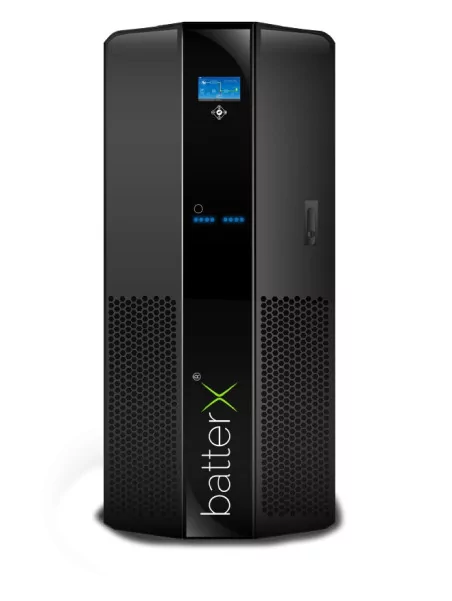

Hybrid inverter BatterX 500kVA

High efficiency

Cost reduction by peak load elimination, intelligent control and management, long service life ...

More details

More info

BatterX

" Hybrid inverter batterX : the solar intelligence "

BatterX

The energy supply

  • Hybrid function with scalable OFF Grid MPPT controller
  • UPS, ON-Line "double conversion" technology (VFI)
  • Controllable input current management
  • Split / double bypass input
  • Output power factor 0.9
  • Up to 8 units in parallel
  • High efficiency > 94%
  • Backfeed protection

The brain :

  • Energy storage with batteries "Made in Germany"
  • UPS (Uninterruptible Power Supply) / Voltage Frequency independent
  • Controllable energy-mix of different energy sources
  • Free choice of energy supplier (100% green electricity)
  • Cost reduction by peak load elimination
  • Future-proof thanks to
    • Open source
    • Community
    • Apps
    • Add-ons
    • Plug-ins
    • Updates and upgrades ...
  • Up to 18 programmable interfaces IN/OUT
  • Remote diagnosis and Remote Monitoring

Power

Highest output range : 10kVA to 4MVA

Battery storage : 5kWh to > 1MWh

Operating

Operating : energy price management

Operating : peak load management

Solar energy

In combination with a PV installation the solar energy is the primary energy source to supply the load with stable and uninterruptible power. It also charges your batteries.

Grid & generator supply

The grid only supplies the load when the solar and/or battery energy is not strong or not available. Partial grid supply is managed by the Energy Flow Manager (EFM)

Battery storage

With this unique and modular technology, it is able to provide very big storage capacities. In combination with solar energy, it can power and protect you during many hours or days.

BatterXBAT
10X
BAT
15X
BAT
20X
BAT
30X
BAT
40X
BAT
60X
BAT
80X
BAT
100X
BAT
120X
BAT
160X
BAT
200X
BAT
250X
BAT
300X
BAT
400/500X
Power (kVA)10152030406080100120160200250300400/500
Input
Voltage380/400/415Vac 3 phase +N, +/-20% (415Vac +15% - 25%)
Frequency range50/60Hz selectable, +/- 10Hz
Power factor0.99
Harmonic distortion (THDI)<3%
Additional bypass inputYes
Bypass voltage range380/400/415 Vac 3 phase +N, +/-10%
Solar charge controllerYes - hybrid function
Output
Power factor0.9
Power (kVA)913.5182736547290108144180225270360/400
Voltage regulation380/400/415 Vac 3 phase +N, +/-1% (220/230/240 Vac for 10-30kVA)
Frequency50/60Hz adjustable
Frequency regulationLine synchronizedu +/- 2% battery mode +/-0.1% adjustable
EfficiencyUp to 94%
Crest factor3:1
Overload protection100-125% 10 min, 125-150% 60 sec
Additional protectionShort-circuit, voltage and current range
Harmonic distortion (THD)<3% à 100% linear load
Battery
TypeVRLA AGM/GEL or other types
Nominal voltage+/- 360Vdc (2x30-12Vdc)
Float or end of discharge DC voltage+/- 405Vdc, +/- 300Vdc
BatteryInternalExternam
ProtectionOvercharging, battery duses, temperature compensation
Automatic testDaily, weekly (adjustable)
Hybrid Off Grid Controller
Power10 and 40kW (up to 8 units in parallel)
MPPT input260-640Vdc (40kW TBA)
Input min/max Voc200Vdc / 800Vdc (40kW TBA)
Efficiency≥97%
CommunicationRS232, 4 dry contacts, EPO, multi language graphical LCD
Dimensions H x D x W / weight10kW : 3Ux500x440mm / 17kg (40kW TBA)
General
Standard & certificatesEMC/LVD/EMI - EN62040-1/2, EN60950, CE
UPS interfaceMulti language graphical LCD
Communication ports - UPS2x RS232 ports, 4 dry contact (in option 8 dry contacts)
Communication ports - Raspberry PI4 USB, HDMI, Ethernet, Micro SD card
Communication ports - Controller card18 programmables IN/OUT interfaces, RS232, RS485
InputGenerator contact and emergency power off
Genset kitUser programmable
SoftwareManagement software
Alarm200 events (time and date) / in option 500 events
ProtectionOver-temperature, over-current, over-temperature alarm
Temperature range0°C - 40°C
Protection degreeIP20 (IP54 in option)
Humidity / altitude90% max without condensation / < 1000m
Audible noise at 1m≤ 56dB≤ 61dB≤ 64dB≤ 67dB≤ 72dB
Weight (kg)86869298175182196218218259480560650770
Dimensions (mm) H x W x D1037 x 398 x 8121437 x 513 x 8521797 x 882 x 7631797 x 1246 x 763
