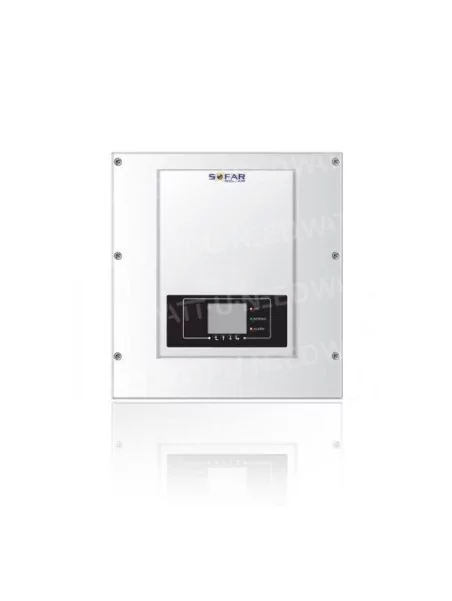

Mono Sofar Solar 5KTLM-G2 Inverter View full size

Mono Sofar Solar 5KTLM-G2 Inverter

Sofar Solar

1 546,54 € tax incl.

High yield 98.2%

The I-V curve sweeping function

Built-in zero-export function

2 MPPT high-precision thong detection

Built-in sound and light alarm function

Protection from IP65 intrusion



The warranty extension available in the options only covers the manufacturer's inverter and not the cost of transporting the unit.
Transportation is the responsibility of the buyer.



stock quantity : 1

More details

More info



Warranty extension

The warranty extension available in the options only covers the manufacturer's inverter and not the cost of transporting the unit.
Transportation is the responsibility of the buyer.


High yield

  • Maximum yield of 98.2%.
  • Accurate real-time MPPT algorithm for maximum harvest
  • Wide operating range of input voltage
  • Independent MPPT double tracking, to better adapt to different roof plant designs

All in one. Flexible and economical system solution

  • Real-time monitoring using a mobile phone app
  • Free choice of site thanks to the IP65
  • Easy installation and maintenance with the "Plug-Play" connection.
  • Interface Choice - WiFi / RS485 / GPRS (optional)
  • Built-in sound and light alarm function

Low maintenance cost

  • Small size, light weight
  • Detachable lid for easy installation
  • Stainless aluminum blankets
  • A flexible control solution

Smart power grid management

Reactive power capacity
Self-reducing power in case of over-frequency
Remote control of the active/reactive power limit


Characteristics



DC Entrance
Recommended Max. Pv Input Power6650 Wc
Maximum DC power for a single MPPT3500 W
Number of MPPT trackers2
Number of DC entriesI/I
Max. Entry Tension600 V
Start-up tension120 V
Nominal input voltage360 V
MPPT operating voltage range90 - 580 V
Full-power MPPT voltage range230 - 520 V
Max. Entry current by MPPT 11 A / 11 A
Dc entry maximum short-circuit current by MPPT 13.2 A
AC output
Nominal power5000 W
Max. AC Power5000 VA
Max. Current exit22.8A
Nominal network voltageL/N/PE, 220 Vac, 230 Vac, 240 Vac
Network voltage range180 Vac-276Vac (according to local standard)
Nominal frequency50Hz/60Hz
Network frequency range45Hz-55Hz/54Hz-66Hz (according to local standards)
Active power adjustment range0-100%
THDi< 3%
Power factor1 defect (adjustable -/-0.8)
Exported power limitZero export or export of adjustable power limit
Performance
Maximum efficiency98,00%
European weighted efficiency97,50%
Self-consumption at night< 1 W
MPPT return99,90%
Protection
Protection against polarity reversal in direct currentYes
DC SwitchOptional
Protection class/surge categoryI/III
Security protectionAnti-islanding, RCMU, Ground Defect Monitoring
SpdMOV:type III Standard
Communication
Power Management UnitDepending on certification and demand
Standard mode of communicationRS485, Wi-Fi / GPRS / Ethernet (optional), USB
Storage of operating dataAge 25
General data
Room temperature range-25 degrees Celsius - 60 degrees Fahrenheit
TopologyNo transformer
Degree of protectionIP65
Allowed relative humidity range0 - 100%
Maximum operating altitude2000m
Noise< 25dB
CoolingNatural
Maximum operating altitude2000m
Dimension405 x 315 x 135 mm
Fixing supportWall mounting
Weight11.5 kg
DisplayLcd
Warranty5 years / 7 years / 10 years
Standard
EmcEN61000-6-2, EN61000-6-3, EN61000-3-2, EN61000-3-3
IN 61000-3-11, IN 61000-3-12
Safety standardsIEC62109-1/2, IEC62116, IEC61727, IEC-61683, IEC60068 (1,2,14.30)
Grid standardsAS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21, EN50549,
G83/G59/G98/G99, NB/T32004; ABNT NBR 16149/16150 (for SOFAR3KTLM-G2, SOFAR5KTLM-G2 - 7.5KTLM)



Specifications

Nombre de MPPT2 MPPT
Inverter power5500 VA
