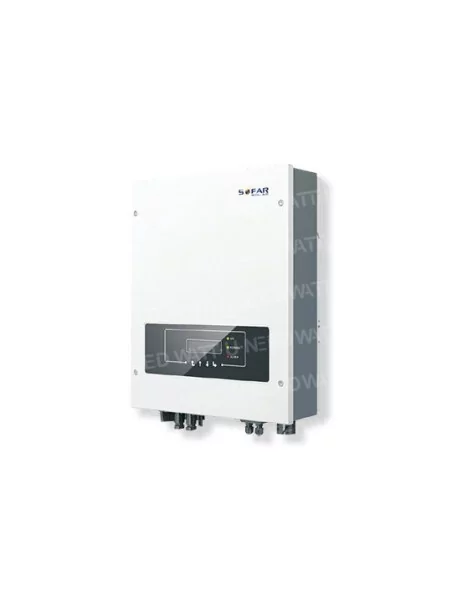

Inverter Mono Sofar Solar 5KTLM-G2 View full size

Inverter Mono Sofar Solar 5KTLM-G2

Sofar Solar

669,50 € tax incl.

Options

Maximum yield of 97.8%.

Accurate real-time MPPT algorithm for maximum harvest

Wide operating range of the input voltage

Independent MPPT double monitoring, to better adapt to different roof plant designs



More details

More info

Inverter Mono Sofar Solar 5KTLM-G2



High efficiency

  • Maximum yield of 97.8%.
  • Accurate real-time MPPT algorithm for maximum harvest
  • Wide operating range of the input voltage
  • Independent MPPT double monitoring, to better adapt to different roof plant designs



Low maintenance cost

  • Small size, light weight
  • Detachable cover for easy installation
  • Unwrought aluminum covers
  • Flexible monitoring solution



All in one. Flexible and cost-effective system solution

  • Real-time monitoring using a mobile phone app
  • Easy installation and maintenance thanks to the "Plug & Play" connection.
  • RS485 and external WIFI/GPRS (optional)
  • Built-in audible and light alarm function
  • Free choice of site thanks to the IP65



Intelligent network management

  • Reactive power capacity
  • Automatic power reducer in case of over-frequency
  • Remote control of the active/reactive power limit

Characteristics



DC input
Recommended Max. PV Input Power6650 Wc
Maximum DC power for a single MPPT3500 W
Number of MPPT trackers2
Number of DC inputsI/I
Input voltage600 V
Boot voltage120 V
Nominal input voltage360 V
MPPT operating voltage range90 – 580 V
MPPT voltage range at full power250V – 520V
Input current by MPPT 11 A / 11 A
Maximum short circuit current of dc input by MPPT 13.2 A
AC output
Rated power5000 W
AC Power5000 VA
Output current22.8 A
Nominal grid voltageL/N/PE, 220 Vac, 230 Vac, 240 Vac
Network voltage range180 Vac-276Vac (According to local standard)
Rated frequency50Hz/60Hz
Network frequency range45Hz-55Hz/54Hz-66Hz (According to local standard)
Active power adjustment range0~100%
THDi< 3%
Power factor1 defect (adjustable +/-0.8)
Exported power limitZero export or export of adjustable power limit
Performance
Maximum efficiency98,00%
European weighted efficiency97,50%
Self-consumption at night< 1 W
MPPT Performance99,90%
Protection
Protection against reverse polarity in direct currentYes
DC switchOptional
Protection class/surge categoryI/III
Security protectionAnti-islanding, RCMU, Ground Fault Monitoring
SPDMOV:type III Standard
Communication
Power Management UnitAccording to certification and demand
Standard mode of communicationRS485, Wi-fi / GPRS / Ethernet (optional), USB
Storage of operating data25 years
General data
Ambient temperature range-25°C ~+ 60°C
TopologyWithout transformer
Degree of protectionIP65
Allowed relative humidity range0~100%
Maximum operating altitude2000m
Noise< 25dB
CoolingNatural
Maximum operating altitude2000m
Dimension405 x 315 x 135 mm
Mounting bracketWall mounting
Weight11.5 kg
PostLcd
Guarantee5 years / 7 years / 10 years
Standard
EMCEN61000-6-2, EN61000-6-3, EN61000-3-2, EN61000-3-3
EN 61000-3-11, EN 61000-3-12
Safety standardsIEC62109-1/2, IEC62116, IEC61727, IEC-61683, IEC60068(1,2,14,30)
Grid StandardsAS/NZS 4777, VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, IEC 0-21, EN50549,
G83/G59/G98/G99, NB/T32004; ABNT NBR 16149/16150 (For SOFAR3KTLM-G2, SOFAR5KTLM-G2& 7.5KTLM)



Data sheets and documentation

Specifications

MPPT/PWMMPPT
Weight11,5 kg
Monophasé / TriphaséMonophasé
Nombre de MPPT2 MPPT
Width315 mm
Height405 mm
Thickness135 mm
Inverter power5000VA
