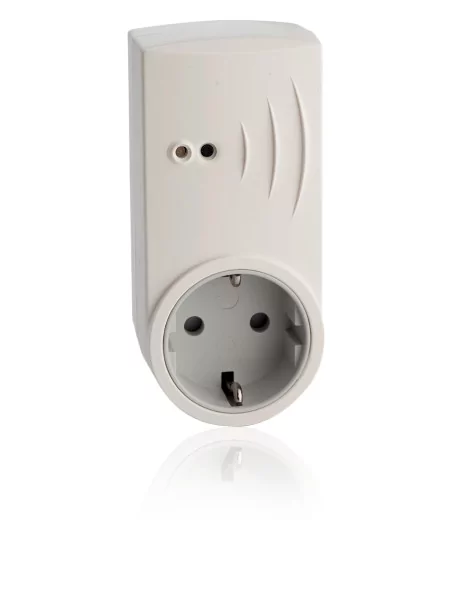

Plug-In Socket with Meter SolarEdge View full size

Plug-In Socket with Meter SolarEdge

SolarEdge

168,89 € tax incl.

Wireless dry contact switch for controlling electrical devices

Logo SolarEdge

More details

More info

" Maximize self-consumption by controlling device usage "

  • Wireless dry contact switch for controlling electrical devices
  • Suitable for heat pump control
  • Supports a wide input voltage range

Operating scheme SolarEdge

SEHAZB-SCKT-MTR-XX *
Plug-In Socket with Meter
ELECTRICAL SERVICE
Operating Voltage Range - Line to NeutralVCA90 - 250
AC FrequencyHz50/60
Maximum Active Power MeasurementkW3
Maximum Load CurrentA13
Dry Contact Voltage RangeVCAN / A
COMMUNICATION
Supported Communication ProtocolZigBee Home Automation
Nominal Transmit PowerdBm3
Operating Frequency RangeGHz2,4 - 2,5
Outdoor (LOS) Rangem100
Indoor Range**m50
STANDARD COMPLIANCE
RadioETSI EN 300 328 V 1.8.1, ETSI EN 301 489-1, ETSI EN 301 489-17
SafetyEN 60950-1, EN 50371
ImmunityEN 61000-6-2
EmissionsEN 61000-6-3
INSTALLATION SPECIFICATIONS
Operating Temperature Range°C0 to +50
Protection RatingIP30
Dimensions (H x W x D)mm110 x 70 x 25
Mounting TypeN / A

* Multiple plug types for various sockets: XX = GB, DE, FR, IT
** Approximate values. May differ depending on specific installation conditions
*** Pending.

Specifications

Monophasé / TriphaséTriphasé
Nombre de MPPT1 MPPT
