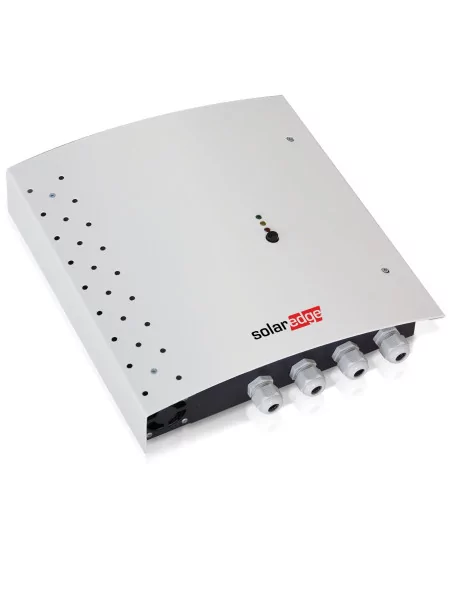

Immersion Heater Controller 3kW View full size

Immersion Heater Controller 3kW

SolarEdge

747,21 € tax incl.

Immersion heater controller adjusts the power supplied to the heater based on available PV power (up to 3kW). Seamless integration with all SolarEdge inverters.

Logo SolarEdge

More details

More info

" Maximizes self-consumption by storing excess energy as hot water "

  • Immersion heater controller adjusts the power supplied to the heater based on available PV power (up to 3kW)
  • Seamless integration with all SolarEdge inverters
  • Wireless communication between the inverter and Immersion Heater Controller via ZigBee
  • Simple wall mount installation
  • Suitable for powering purely resistive loads only

Scheme Immersion Heater Controller

SEHAZB-HEAT-CONT-3
ELECTRICAL SERVICE
Operating Voltage RangeVCA207 - 253
AC FrequencyHz50
Supported GridsL / N / PE
Maximum Supported Load SizekW3/3,3
Maximum Load Current RatingA13/14,3
Load Type2% of load rating
Minimum Output PowerResistive
Efficiency%> 97
COMMUNICATION
Supported Communication ProtocolZigBee Home Automation
Nominal Transmit PowerdBm10
Operating Frequency RangeGHz2,4 - 2,5
Outdoor (LOS) Rangem100
Indoor Range*m30
STANDARD COMPLIANCE
RadioETSI EN 300 328 V 1.8.1, ETSI EN 301 489-1, ETSI EN 301 489-17
SafetyEN-60335-1, EN60335-2-21
ImmunityEN 61000-6-3, EN 55014-1, EN 55014-2
EmissionsEN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1
INSTALLATION SPECIFICATIONS
Dimensions (H x W x D)mm277 x 309 x 70,5
Weightkg3,9
Operating Temperature Range°C-5 à +40
Protection RatingIP20
Mounting TypeWall mount

* Approximate values. May differ depending on specific
installation conditions

Specifications

Monophasé / TriphaséMonophasé
Nombre de MPPT1 MPPT
