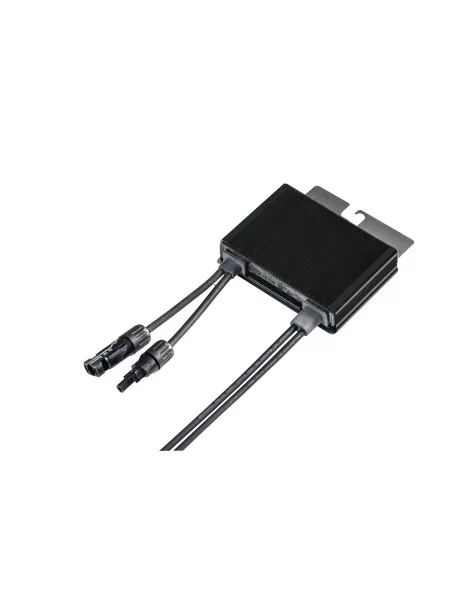

SolarEdge power optimizer 370W

SolarEdge power optimizer 370W View full size

Suitable for photovoltaic modules up to 370Wp

Logo SolarEdge

More info

More details

73,10 € tax incl.

Add to cart

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of 2,10 €.


More info

SolarEdge power optimizers are integrated converters in each solar module and increase their power output by up to 25%.

The power optimizers follow the maximum power point of each module (MPP), thus minimizing power losses to the disparity arising from the inherent variance, partial shading and aging of the modules.

Power optimizers also monitor the performance of each module for fast and easy troubleshooting and maintenance.

Its features

  • Up to 25% more energy
  • Superior efficiency (99.5%)
  • Mitigates all types of modules mismatch-loss, from manufacturing tolerance to partial shading
  • Flexible system design for maximum space utilization
  • Fast installation with a single bolt
  • Next generation maintenance with module level monitoring
  • Module-level voltage shutdown for installer and firefighter safety

P370 (for high-power 60-cell modules and 72-cell modules)
INPUT
Rated Input DC Power*W370
Absolute Maximum Input Voltage (Voc at lowest temperature)Vdc60
MPPT Operating RangeVdc8 - 60
Maximum Continuous Input Current (Isc)Adc11
Maximum Efficiency%99.5
Weighted Efficiency%98.8
Overvoltage CategoryII
OUTPUT DURING OPERATION (POWER OPTIMIZER CONNECTED TO OPERATING SOLAREDGE INVERTER)
Maximum Output CurrentAdc15
Maximum Output VoltageVdc60
OUTPUT DURING STANDBY (POWER OPTIMIZER DISCONNECTED FROM SOLAREDGE INVERTER OR SOLAREDGE INVERTER OFF)
Safety Output Voltage per Power OptimizerVdc1
STANDARD COMPLIANCE
EMCFCC Part15 Class B, IEC61000-6-2, IEC61000-6-3
SafetyIEC62109-1 (class II safety), UL1741
RoHSYes
Fire SafetyVDE-AR-E 2100-712:2013-05
INSTALLATION SPECIFICATIONS
Maximum Allowed System VoltageVdc1000
Dimensions (W x L x H)mm128 x 152 x 28
Weight (including cables)gr665
Input ConnectorMC4**
Output ConnectorMC4
Output Wire Lengthm1.2
Operating Temperature Range°C-40 - +85
Protection RatingIP68 / NEMA6P
Relative Humidity%0-100

*Rated STC power of the module. Module of up to +5% power tolerance allowed.

**For other connector types please contact SolarEdge.

PV SYSTEM DESIGN USING A SOLAREDGE INVERTER ****SINGLE PHASE HD-WAVESINGLE PHASETHREE PHASE
Minimum String Length (Power Optimizers)816
Maximum String Length (Power Optimizers)2550
Maximum Power per StringW5700525011250
Parallel Strings of Different Lengths or OrientationsOui

****It is not allowed to mix P404/P405 with P300/P350/P500/P600/P700 in one string.

Specifications

Nombre de MPPT1 MPPT
