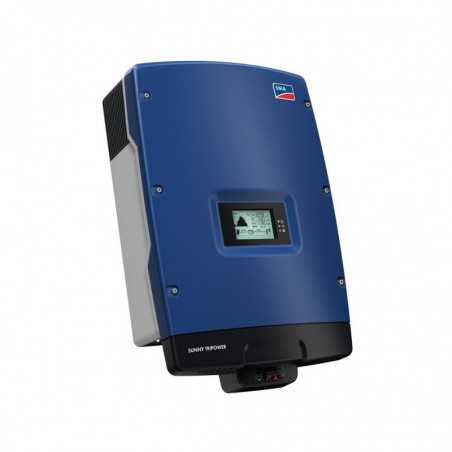

SMA Sunny Tripower STP 12000TL

SMA Sunny Tripower STP 12000TL View full size

Three-phase inverter SMA Sunny Tripower - model: 12000TL.
This inverter is optimal for traditional residential photovoltaic installations for the much more powerful facilities.













More info

More details

3 399,93 € tax incl.

Add to cart

By buying this product you can collect up to 339 loyalty points. Your cart will total 339 points that can be converted into a voucher of 101,70 €.


More info





Description:



SMA STP 10000tl

Economic

  • Maximum efficiency of 98%
  • Management of the shading with Opti-Trac Global Peak
  • Active management of the temperature by OptiCool


Flexible

  • Up to 1000 V DC input voltage
  • Built-in networking features
  • Reactive power injection
  • Precise dimensioning of the installation through Optiflex modules


Interactive

  • SMA Webconnect
  • Integrated Ethernet with Sunny Portal communication
  • Communication Bluetooth®
  • Easy adjustment of the locale
  • Series multifunction relay


Simple

  • Three-phase injection
  • Connecting the cables without tool
  • DC SUNCLIX connection system
  • Integrated ESS DC switch-disconnector
  • Simple wall mounting










Optitrac de SMA

Optitrac

OptiTrac Global Peak is an additional function of the MPP tracker for operation in partially shaded PV facilities.

This specializing in operations management ensures that the modules are constantly operated the most of power, even in the presence of several maximum output (in the case of partially shaded PV systems), without measurable performance loss (loss < 0.2%). In other words, even if the shading panels properly.





sma production solaire 5000







Technical features:




Sunny Tripower12000TL
INPUT (DC)
Power DC Max (for cos? = 1).12250W
Input voltage max.1000 V
MPP voltage range / input rated voltage380V to 800V / 580V
Input min voltage / start150V / 188V
Input maximum input A / input B18A / 10A
Input per input string A / b18A / 10A
Number of entries independent MPP / strings by entry MPP2 / HAS: 2; B: 2
OUTPUT (AC)
Assigned (at 230 V, 50 Hz) power12000W
Apparent power AC max.12000VA
Rated voltage AC3 / N / PE. 220 / 380 V - 3 / N / PE. 230 / 400 V - 3 / N / PE. 240 / 415 V
Nominal AC voltage range160 v to 280 V
AC mains frequency / range50 Hz, 60 Hz / 5 Hz + -6 Hz...
Frequency / voltage of system assigned50 Hz / 230 V
Output current max.17.4 A
Power at rated power factor1
Adjustable phase shift factorinductive 0.8... capacitive 0.8
Phases of injection / connection3 / 3
PERFORMANCE
Maximum performance / European performance98.3% / 97.9%
PROTECTION DEVICES
Disconnection device side DCYes
The ground fault surveillance / networkYes / Yes
DC polarity protection / resistance to AC circuits / galvanic separationYes / Yes / -.
Monitoring unit of all current-sensitive fault currentYes
(According to IEC 62103) protection class / category of overvoltage (according to IEC 60664-1)I / III
GENERAL DATA
Dimensions (L / H / P)470 / 730 / 240 mm
Weight38 kg
Operating temperature range-25 ° C... + 60 ° C
Noise (typical)40 dB (A)
Autocon - summons (night)1 W
Topology / principle of coolingTransformerless / OptiCool
Protection (according to IEC 60529)IP65
Climate category (according to IEC 60721-3-4)4K4H
Allowable maximum value of relative humidity (without condensation)100%
EQUIPMENT
Connection DC / AC connectionSUNCLIX / spring-loaded Terminal
ScreenChart
Interface: RS485 /.Bluetooth / WebconnectOptional / Yes / Yes
Multifunction relay / Power Control ModuleYes / optional
Warranty: 5 / 10 / 15 / 20 / 25 yearsYes / optional / optional / optional / option
Certifications and approvals (others on request)AS 4777, C10/11, this CIS 0-21 (> 6 kWp), 504381, G59/2, G83/1-1, IEC 61727, MEA2 NEN 50438, NRS 097-2-1, PEA2, PPC, PPDS, RD1699, RD 661/2007, if 4777, UTE C15-712-1, VDE-AR-N 4105, VDE0126-1-1

Specifications

Maximum PV input voltage1000 V
Power12250 VA
Monophasé / TriphaséTriphasé
Nombre de MPPT1 MPPT
Inverter power12000VA
