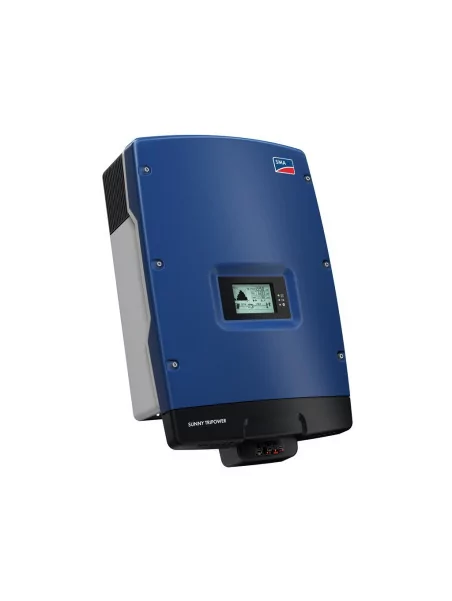

SMA Sunny Tripower STP - 8000TL

SMA Sunny Tripower STP - 8000TL View full size

Three-phase inverter Sunny Tripower : 8000TL .
Not Only for Your Home ...but also perfectly suited to the design of the traditional residential PV system up to the higher power outage range.

More info

More details

2 597,70 € tax incl.

Add to cart

By buying this product you can collect up to 259 loyalty points. Your cart will total 259 points that can be converted into a voucher of 77,70 €.


More info

" SMA Sunny Tripower 8000TL "





SMA STP 10000TLDescription :

Economical

  • Maximum efficiency of 98 %
  • Shade management with OptiTrac Global Peak
  • Active temperature management with OptiCool


Communicative

  • SMA Webconnect
  • Sunny Portal communication
  • Bluetooth® communication
  • Simple country configuration
  • Multifunction relay comes standard


Flexible

  • DC input voltage up to 1 000 V
  • Integrated grid management functions
  • Custom plant design with Optiflex
  • Reactive power supply


Simple

  • Three-phase feed-in
  • Cable connection without tools
  • SUNCLIX DC plug-in system
  • Integrated ESS DC switch-disconnector
  • Easily accessible connection area
  • Easy wall mounting










Optitrac de SMA

Optitrac

OptiTrac Global Peak is an additional function of the MPP tracker for operation in partially-shaded PV plants.

This specialized operation management system ensures that the modules are constantly operated at the point of maxi- mum power even when there are multiple maximum power points (in the case of photovoltaic systems partially shaded), without causing measurable yield loss (loss < 0.2 percent). In other words, even if the shading panels work properly.





Technical characteristic :

Sunny Tripower8000TL
INPUT (DC)
Max. DC power. (pour cos φ =1)8200 W
Max. input voltage1000 V
MPP voltage range / rated input voltage330V à 800V / 580V
Min. input voltage / start input voltage150V / 188V
Max. input current input A / input B15A / 10A
Max. input current per string input A / input B15A / 10A
Number of independent MPP inputs / strings per MPP input2 / A : 2 ; B : 2
OUTPUT (AC)
Rated power (@ 230 V, 50 Hz)8000W
Max. AC apparent power8000VA
Nominal AC voltage3 / N / PE ; 220 / 380 V - 3 / N / PE ; 230 / 400 V - 3 / N / PE ; 240 / 415 V
Nominal AC voltage range160 V à 280 V
AC grid frequency / range50 Hz, 60 Hz / -6 Hz ... +5 Hz
Rated power frequency / rated grid voltage50 Hz / 230 V
Max. output current11,6A
Power factor at rated power1
Adjustable displacement power factor0.8 overexcited ... 0.8 underexcited
Feed-in phases / connection phases3 / 3
EFFICIENCY
Max. efficiency / European efficiency98% / 97,6%
PROTECTIVE DEVICES
DC disconnect deviceyes
Ground fault monitoring / grid monitoringyes / yes
DC reverse polarity protection / AC short-circuit current capability / galvanically isolatedyes / yes / —
All-pole sensitive residual-current monitoring unityes
Protection class (according to IEC 62103)/overvoltage category (according to IEC 60664-1)I / III
GENERAL DATA
Dimensions (W / H / D)470 / 730 / 240 mm
Weight37kg
Operating temperature range-25°C ... +60 °C
Noise emission (typical)40 dB(A)
Self-consumption (at night)1 W
Topology / cooling conceptTransformerless / Opticool
Degree of protection (according to IEC 60529)IP65
Climatic category (according to IEC 60721-3-4)4K4H
Maximum permissible value for relative humidity (non-condensing)100 %
FEATURES
DC connection / AC connectionSUNCLIX / spring-cage terminal
DisplayGraphic
Interface: RS485, Bluetooth, Speedwire / Webconnectin option / yes / yes
Multifunction relay / Power Control Moduleyes / in option
Guarantee: 5 / 10 / 15 / 20 / 25 yearsyes / in option / in option / in option / in option
Certificates and permitsAS 4777, C10/11, CE, CEI 0-21 (>6 kWp), EN 504381 , G59/2, G83/1-1, IEC 61727, MEA2, NEN EN 50438, NRS 097-2-1, PEA2, PPC, PPDS, RD1699, RD 661/2007, SI 4777, UTE C15-712-1, VDE-AR-N 4105, VDE0126-1-1

Specifications

Maximum PV input voltage1000 V
Power12250 VA
Monophasé / TriphaséTriphasé
Nombre de MPPT1 MPPT
