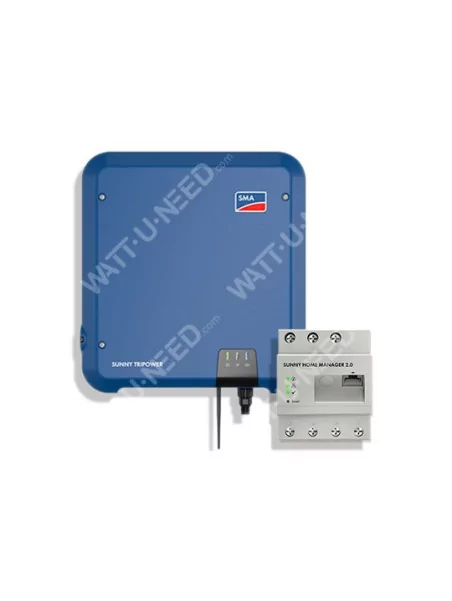

SMA Sunny Tripower STP 10.0 TL INT BLUE - Zero Injection

SMA

3 348,50 € tax incl.

SMA Sunny Tripower three-phase inverter - model: 10.0TL

With the Sunny Tripower 8.0-10.0, residential photovoltaic installations and small commercial installations are redoubling their performance. This high-performance inverter will also provide absolute comfort to its users. With integrated services and solutions to manage shading, it meets all challenges regardless of the roof. The Sunny Tripower thus guarantees maximum energy production and reduces the electricity bill.

SMA Sunny Home Manager 2.0, which blocks the re-injection of excess production into the public network.

More details

More info

SMA Sunny tripower 10.0



SMA Sunny Tripower STP 10.0 TL INT BLUE - Zero InjectionThe new Sunny Tripower 8.0-10.0 guarantees maximum energy production for homes. It combines the integrated SMA Smart Connected service with intelligent technology that meets all needs. Its very compact design makes installation easy and quick. Thanks to the built-in web interface, the Sunny Tripower is quick to put into service via smartphone or tablet. And to meet the requirements of roofing installations, it is possible to easily add TS4-R optimizers, for example in case of shading. Compatible with the latest communication standards, the inverter can be equipped with intelligent energy management and SMA storage solutions at any time and reliably.


SMA Sunny Home Manager 2.0SMA Sunny Home Manager 2.0



Sunny Home Manager 2.0 monitors all energy flows in the home, automatically identifies savings potentials and makes efficient use of solar energy. The new Sunny Home Manager 2.0 will bring together the functions of Sunny Home Manager Bluetooth and SMA Energy Meter in one device, for even simpler and more economical intelligent energy management.





Quick and easy installation



With its low weight, this three-phase inverter is fast to install and compact. Thanks to the built-in web interface, the Sunny Tripower is quick to put into service via smartphone or tablet.


Intelligent solar power generation

Intelligent solar power generation



Sunny Tripower is one of a kind: proven features, such as OptiTrac Global Peak and SMA Smart Connected, are now accompanied by integrated TS4-R communication for panel optimization. Thus, shadows on the photovoltaic panel are no longer a problem. In case of slight shade, the integrated management of the OptiTrac Global Peak shade ensures maximum production. In case of larger shades or complex roofing, the TS4-R optimizers, whose installation is simple and selective, allow for optimal production.


Extension possible at any time



With Sunny Tripower, photovoltaic plant owners and installers still have a state-of-the-art solution. If the use of solar electricity in the fireplace is to increase, Facilities equipped with Sunny Tripower can be equipped with intelligent energy management and SMA storage solutions at any time.


Icon: GuaranteedGuaranteed investment security



With SMA Smart Connected, SMA is the first manufacturer to offer free and automatic inverter supervision that allows the photovoltaic installer to provide fast and targeted services to its customer. SMA proactively informs the owner of the photovoltaic installation or the installer of any inverter malfunction. Diagnosis and downtime are thus kept to a minimum, to the benefit of photovoltaic plant owners and installers. If a replacement is required, SMA ships the exchange inverter free of charge and as soon as possible.


SMA Smart Connected - How It Works



Icon: Activation of SMA Smart Connected

Activation of SMA Smart Connected

As an installer, you activate SMA Smart Connected when registering the installation on Sunny Portal and start automatic monitoring of inverters by SMA.

Icon: Automatic inverter monitoring

Automatic inverter monitoring

SMA performs an automatic and permanent inverter check to detect malfunctions. You and your client benefit from SMA's long-standing experience.

Proactive communicationIcon: Proactive communication

After diagnosing and analyzing an error, SMA immediately informs the installer and the final customer by email. All parties are thus prepared for correcting errors, which minimizes downtime and saves time and money. In addition, regular performance reports provide valuable information about the entire system.

Icon:Replacement service

Replacement service

If a device needs to be replaced, SMA automatically delivers a new inverter within 1 to 3 days of the error diagnosis. As an installer, you can anticipate the owner's request and replace the inverter.

Icon: Service performance

Service performance

If the replacement inverter cannot be delivered within 3 working days, the owner of the facility is entitled to seek financial compensation from SMA.

SMA Smart Connected is available in AU, AT, BE, CH, DE, ES, FR, IT, LU, NL, UK


 Characteristics



ModelSunny Tripower 8.0Sunny Tripower 10.0
Entry (DC)
Maximum power of the photovoltaic generator15000 Wp
Maximum input voltage.1000 V
MPP voltage range260 V to 800 V320 V to 800 V
Assigned input voltage580 V
Min. input voltage / start input voltage Entry current max. A/entry B125 V / 150 V
Min./ Start-entry voltage 20 A /12 A
Current short-circuit max. entrance A / entrance B30 A / 18 A
Number of independent MPP entries / strings per MPP entry2/ A:2; B:1
Exit (AC)
Assigned power (for 230V, 50 Hz)8000 W10,000 W
Apparent power AC max.8000 VA10,000 VA
AC nominal voltage3/N/PE; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; 240 V / 415 V
AC voltage range180 V to 280 V
AC/beach frequency50 Hz / 45 Hz at 55 Hz 60 Hz / 55 Hz at 65 Hz
Assigned network frequency/assigned network voltage50 Hz / 230 V
Maximum output current3x 12.1A3x 14.5A
Power factor to assigned power / Adjustable phase-shift factor1/0.8 inductive to 0.8 capacitive
Injection phases / connection phases3/3
Performance
Maximum return / European return98,3 % / 97,7 %98,3 % / 98,0 %
Protective devices
Disconnection device on the entry side
Ground defect monitoring/network monitoring●/●
DC Polarity Reversal Protection / AC Short-Circuit Resistance/ Galvanic Separation Fault Current Monitoring Unit, Sensitive to All Currents●/●/-
Protective class (according to CIS 62103) / surge category (according to CII 60664-1) General featuresI/III
General features
Dimensions (L/H/P)460 mm / 497 mm / 176 mm (18.1 inches / 19.6 inches / 6.9 inches)
Weight20.5 kg (45.2 lbs)
Operating temperature range'25' to '60' ('13' to '140'
Typical sound emissions30 dB (A)
Self-consumption (night)5.0 W
Topology / cooling systemNo Transformer / Convection
Protection Index (according to CIS 60529)IP65
Climate class (according to CIS 60721-3-4)4K4H
Maximum allowable value for relative air humidity (without condensation)100,00%
Equipment
DC Connection / AC ConnectionSUNCLIX / fiche AC
Display via smartphone, tablet, laptop
Interfaces: WLAN / Ethernet / RS485●/●/●
Communication protocolsModbus (SMA, Sunspec), Webconnect, SMA Data, TS4-R
Shading Management: OptiTrac Global Peak / TS4-R●/ ○
Guarantee: 5 / 10 / 15 years●/ ○/ ○
Certifications and certifications (other on request)AS 4777.2, C10/11, CE, CE 0-21, EN 50438, G59/3-4, G83/2-1,
DIN IN 62109 / IEC 62109, NEN-EN50438, EVE/NORM E 8001-4-712 - TOR D4, PPC, PPDS, RD1699, SI4777, TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1-1, VFR 2014
SMA Smart Connected Availability CountryAU, AT, BE, CH, DE, ES, EN, IT, LU, NL, UK
Type designationSTP8.0-3AV-40STP10.0-3AV-40

Specifications

Maximum PV input voltage1000 V
Monophasé / TriphaséTriphasé
Width460 mm
Height497 mm
Thickness176 mm
Inverter power10000 VA
