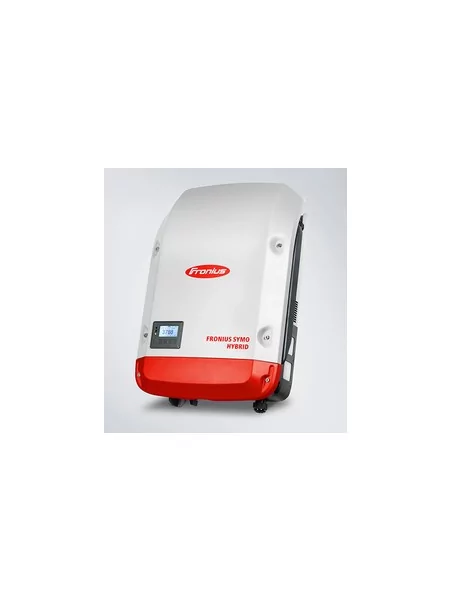

Fronius Symo Hybrid 3 to 5 kVA Triphasé

Fronius

2 584,96 € tax incl.

Options

The Fronius Symo Hybrid allows you to temporarily store excess energy in a battery. This is THE solution for 24 hours of sunshine a day, even in the event of a power outage.

Guaranteed product 5 years

Possibility of warranty extension to 10, 15 or 20 years

Select the model and warranty period in the options.

More details

More info

Fronius Energy package

The Fronius Symo Hybrid is the heart of the Fronius Energy Package, the storage solution for "24 hours of sunshine." With power classes ranging from 3.0 to 5.0 kVA, this three-phase inlefiant temporarily stores the excess energy produced in a battery, the "Fronius Solar Battery". By intelligently managing energy flows, The Multi Flow Technology enables the AC and DC coupling storage systems. So it's THE solution for 24 hours of sunshine a day, even in the event of a power outage.



type:3.0-3-S4.0-3-S5.0-3-S
Power (kVA):345

Warranty: 5 years


technology



      Simple fixing system

The peculiarity in the design of these devices is that the "connection" compartment is separated from the "power" compartment, and are installed separately. The connection area and cables are first mounted to the wall, then accommodate the "power" compartment. This revolutionary assembly system makes installation and maintenance easier. The inunnator is simply placed in the wall holder and then attached. It is not necessary to remove the entire inunr for its maintenance, but only the power floor. All cables, settings and configurations remain in place.



     Built-in Wi-Fi interface

A simple, easy-to-use monitoring system. Thanks to the Fronius Datamanager, Fronius is the first inverter manufacturer to offer a Wi-Fi interface built into the inverter itself. The inunr is connected to wireless internet and offers a perfect overview of how the photovoltaic installation works.



     Open-protocol data transmission

It's easy to connect components from third-party suppliers to Fronius inverters. The standard open Modbus TCP SunSpec protocol is a simple way to connect data to other systems. The protocol is used through the existing Ethernet interface, ensuring reliable communication.



     Smart Grid Ready

Fronius inverters are ready for tomorrow's Smart Grid. The inverters are optimally equipped to meet future technical requirements. A series of smart features, called Advanced Network Features, are integrated into devices. These are a number of control functions for optimal injection of reactive and active power. These functions are designed for a stable network even when the density of the PV system is very high and prevent unwanted cuts with associated performance losses. Fronius inverters therefore help to ensure the performance of PV systems.


FRONIUS ENERGY PACKAGE



The individual storage solution for 24 hours of sunshine.

Fronius' vision of "24 Hours of Sunshine" represents the future of energy supply, with 100% of our renewable energy needs covered. The Fronius Symo Hybrid is at the heart of the Fronius Energy Package, the storage solution for "24 hours of sunshine" a day. This three-phase inser in power classes ranging from 3.0 to 5.0 kW, allows to store excess energy from a photovoltaic installation in a battery, the Fronius Solar Battery. The result is maximum self-consumption and energy independence. During times of low production or in the absence of production, the emergency power function can power the fireplace even in the event of a power outage of the public electricity grid. Using the Web server WLAN and Ethernet integrated with graphical interface, it is possible to obtain a perfect configuration and visualization of the installation. In addition, the DC coupling of the battery ensures maximum efficiency for the entire system.


Manage your production with "Solar.Web"




Management of shading with the "DynamicPeakManager"

Chimney shade: 1-2% additional gain per year for 1 hour of shading in the morning and evening

Sleeping shade: 2-4% additional gain per year for 1 hour of shading in the morning and evening

Energy consumption of the ''DynamicPeakManager' 'linkpopup': 0.05% of the annual gain


Multi Flow Technology




The 24-hour personal storage solution




SnapINverter Technology




Technical features



Entry dataSYMO Hybrid 3.0-3-SSYMO Hybrid 4.0-3-SSYMO Hybrid 5.0-3-S
Max input power (Idc max.)5.0 kW6.5 kW8.0 k W
Maximum entry current (Idc)1x16A
Short-circuit current max. From the module field24 A
Min. Entry Tension (Udc min.)150 V
Injection start-up tension (Udc start)200 V
Nominal input tension (Udc,r)595 V
Maximum enage tension (Udc max)1000 V
Tension range MPP (Umpp min-Umpp max)200-800V255-800V320-800V
Number of MPP tracker1
Number of connectors2
Battery input
Maximum output power. To the batteryAccording to the Connected Fronius Solar Battery
Maximum input power. From the batteryAccording to the Connected Fronius Solar Battery
Exit data
AC rated output power (Pac,r)3000W4000W5000W
Maximum output power.3000VA4000VA5000VA
Max sourcing power. From the sector3000VA4000VA5000VA
AC Release Current (Iac Name)4.3A5.8A7.2A
Coupling at reseay (tension range)3-NPE 400V/230V or 3-NPE 380V / 220V (up 20%/-30%)
Frequency (frequency range)50 Hz/60Hz (45-65 Hz)
Harmonic distortion rate3 per cent
Power factor (cos 'ac,r)0.85 - 1 ind. / cap.
GENERAL DATA
Dimensions (heightxwidthxdepth)645 x 431 x 204 mm
weight19.9 kg
Protection indexIP65
Protective class 1
Surge category (DC/AC) 2/3
Indutor conceptNo transformer
coolingCooling by regulated air
assemblyIndoor and outdoor editing
Ambient temperature range -25C/--60C
Humidity of the air allowed0-100%
Maximum altitude. 2000m (limitless voltage range)
DC PV connector technologyScrew terminals 2.5 - 16 mm2 2x DC - and 2x DC
DC PV connector technologyScrew terminals 2.5 - 16 mm2 1x DC - and 1x DC
AC connection x technologyAC 2.5 screw-stations - 16 mm2 5 poles
Certificates and compliance with standards VDE AR N 4105, VE/Onorm E 8001-4-712, DIN V VDE 0126-1-1
Emergency power functionyes
return
Maximum yield (PV-resezau electric)97.7%97.9%
Maximum efficiency (PV-battery-electric grid)90.0%

Specifications

Monophasé / TriphaséTriphasé
Nombre de MPPT1 MPPT
