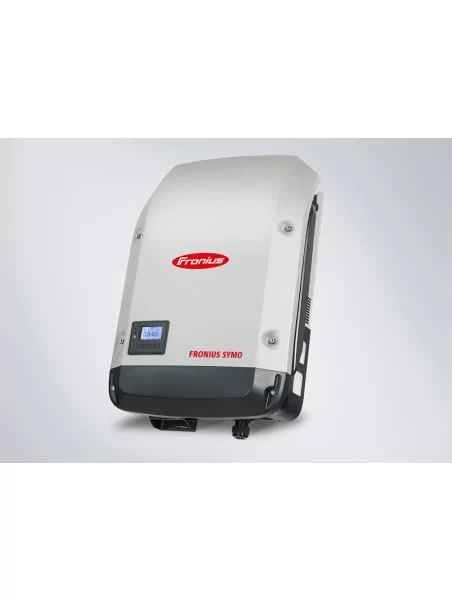

Fronius Symo 3.0-3-S (1MPPT) Tri

Boasting power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for systems of every size. The high system voltage and wide input voltage range ensure maximum flexibility in system design.

More info

More details

1 430,01 € tax incl.

Options

Add to cart

By buying this product you can collect up to 193 loyalty points. Your cart will total 193 points that can be converted into a voucher of 57,90 €.


More info

Fronius symo

The high system voltage and wide input voltage range ensure maximum flexibility in system design. The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market.

Brand : Fronius

Model : Symo 3.0-3-S

Power : 3 kW

Dimensions LxHxD : 645 x 431 x 204 mm

Weight : 16 kg

Warranty : 5 years

Technology

     SnapINverter mounting system

The special feature in the design of our devices is that the connection compartment is separate from the power stage set compartment. They are installed separately. The connection area and all its cabling is fitted to the wall first. The power stage set compartment is fitted afterwards. The innovative SnapINverter mounting system makes installation and servicing extremely user-friendly. The inverter is simply placed in the wall bracket and then secured. It is not necessary to remove the entire inverter for servicing, just the power stage set compartment. All the cabling, settings and configurations remain in place.

     Integrated WLAN interface

Simple, user-friendly system monitoring is very important to Fronius. With the Fronius Datamanager, we are the first inverter manufacturer to offer a WLAN interface in the inverter itself. The inverter is connected to the internet without additional cabling and grants you the perfect overview of how the PV system is operating.

     Dynamic Peak Manager

The Dynamic Peak Manager is a new MPP tracking algorithm that dynamically adapts its behaviour when searching for the optimal operating point. The special feature is that the Dynamic Peak Manager automatically checks the entire characteristic curve on a regular basis and finds the global Maximum Power Point (GMPP), even in partial shade.

     Smart Grid Ready

Fronius inverters are ready for the Smart Grid of tomorrow. The inverters are optimally equipped to meet the technical requirements of grids in the future. A series of smart functions, known as Advanced Grid Features, are built into the devices. These include a number of control functions for optimum feed-in of reactive power and effective power. These functions are designed to enable stable grid operation even when the PV system density is very high and to prevent unwanted interruptions to feed-in and associated yield losses. Fronius inverters therefore help to guarantee the yield of a PV system.

     Zero feed-in

Today, an increasing number of grid operators in various countries are stipulating a PV power feed-in limit as a precondition before a system is connected to the grid. With dynamic power reduction, Fronius is offering a solution for optimum feed-in management. The inverter supplies the household consumers with energy first and then reduces the system output to the maximum energy feed-in permitted by the grid operator. With Fronius inverters, zero feed-in is also a possibility thanks to this function, meaning that no PV power is fed into the grid. The relevant requirements of the grid operator can be fulfilled by simply enabling a setting on the inverter's web interface.




Simple, fast and efficient assembly

* Step 1: Attach and wire without effort
wall bracket, lightweight (- 4kg)
BJ integrated DC *

Step 2: Place the inverter section in a few seconds !




Manage your production with Solar.web


Residential solutions




Setting up system monitoring using WLAN




Fronius SnapINverter commissioning checklist




Innovative SnapINverter mounting technology




Technical Data


INPUT DATAFronius Symo 3.0-3-SFronius Symo 3.0-3-M
Max. input current
(Idc max 1 / Idc max 21))
16.0 A / 16.0 A

Max. array short circuit current (MPP1/MPP21))

24.0 A / 24.0 A
Min. input voltage
(Udc min)
150 V
Feed-in start voltage
(Udc start)
200 V
Nominal input voltage (Udc,r)595 V
Max. input voltage
(Udc max)
1,000 V
MPP voltage range
(Umpp min – Umpp max)
200 - 800 V150 - 800 V
Number of MPP trackers12
Number of DC connections32 + 2
Max. PV generator output (Pdc max)6.0 kWpeak 6.0 kWpeak
OUTPUT DATA
AC nominal output (Pac,r)3,000 W3,000 W
Max. output power3,000 VA3,000 VA
AC output current
(Iac nom)
4.3 A4.3 A
Grid connection (voltage range)3~NPE 400 V / 230 V or 3~NPE 380 V / 220 V (+20 % / -30 %)
Frequency (Frequency range)50 Hz / 60 Hz (45 - 65 Hz)
Total harmonic distortion< 3 %
Power factor (cos φac,r)0.70 - 1 ind. / cap.0.85 - 1 ind. / cap.
GENERAL DATA
Dimensions
(height x width x depth)
645 x 431 x 204 mm
Weight16.0 kg19.9 kg
Degree of protectionIP 65
Protection class1
Overvoltage category (DC / AC)2)2 / 3
Night time consumption< 1 W
Inverter designTransformerless
CoolingRegulated air cooling
InstallationIndoor and outdoor installation
Ambient temperature range-25 - +60 °C
Permitted humidity0 - 100 %
Max. altitude2,000 m / 3,400 m (unrestricted / restricted voltage range)
DC connection technology3x DC+ and 3x DC- screw terminals 2.5 - 16 mm²4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² 3)
AC connection technology5-pin AC screw terminals 2.5 - 16 mm² 5-pin AC screw terminals 2.5 - 16 mm² 3)
Certificates and compliance with standardsÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777 1), CEI 0-211), NRS 097
EFFICIENCY
Max. efficiency98.0 %
European efficiency (ηEU)96.2 %96.5 %
η at 5 % Pac,r4)80.3 / 83.6 / 79.1 %79.8 / 85.1 / 80.8 %
η at 10 % Pac,r4)87.8 / 91.0 / 86.2 %86.5 / 91.6 / 87.7 %
η at 20 % Pac,r4)92.6 / 95.0 / 92.6 %90.8 / 95.3 / 93.0 %
η at 25 % Pac,r4)93.4 / 95.6 / 93.8 %91.9 / 96.0 / 94.2 %
η at 30 % Pac,r4)94.0 / 96.3 / 94.5 %92.8 / 96.5 / 95.1 %
η at 50 % Pac,r4)95.2 / 97.3 / 96.3 %94.3 / 97.5 / 96.5 %
η at 75 % Pac,r4)95.6 / 97.7 / 97.0 %94.9 / 97.8 / 97.2 %
η at 100 % Pac,r4)95.6 / 97.9 / 97.3 %95.0 / 98.0 / 97.4 %
MPP adaption efficiency> 99.9 %
PROTECTIVE DEVICES
DC insulation measurementYes
Overload behaviourOperating point shift, power limitation
DC disconnectorYes
Reverse polarity protectionYes
INTERFACES
WLAN / Ethernet LANFronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 inputs and 4 digital in/outInterface to ripple control receiver
USB (type A socket)5)Datalogging, inverter update via USB flash drive
2x RS422 (RJ45 socket) 5)Fronius Solar Net, interface protocol
Signalling Output 5)Energy management (floating relay output)
Datalogger and WebserverIncluded
External Input 5)S0 meter connection / Evaluation of overvoltage protection
RS485Modbus RTU SunSpec or meter connection

1) This applies to Fronius Symo 3.0-3-M, 3.7-3-M and 4.5-3-M
2) Testing to IEC 62109-1.
3)
 16 mm² without ferrules
4) And at Umpp min / Udc,r / Umpp max
5) Also available in the light version.

Subject to modifications

Specifications

Monophasé / TriphaséTriphasé
Nombre de MPPT1 MPPT
Inverter power3000VA
