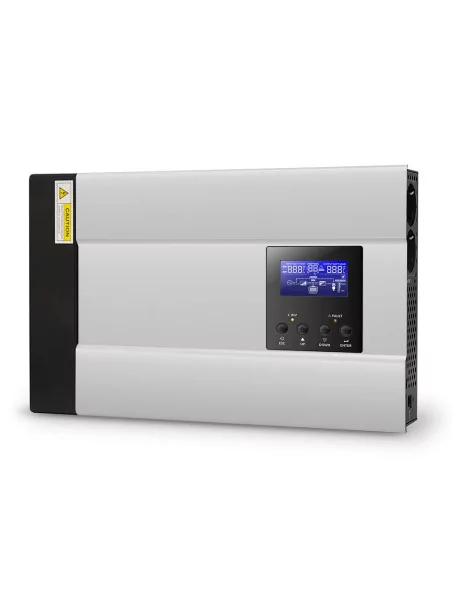

WKS 2kVA 24V - 230V inverter GS

WKS

340,20 € tax incl.

The WKS 2 kVA 230V 24V inverter allows you to convert the battery current for electric devices.

  • Rated power :2000VA or 1600W
  • Pure Sine inverter,
  • transformerless,
  • Protect your batteries,
  • Low power consumption

WKS logo

stock quantity : 2

More details

More info

Small 230V Pure Sine inverter with high performance "



230V inveter 3KVA - WKS

This 230V Inverter 2000VA is a reliable power source protecting your batteries.

Lightweight and small, the inverter casing is made of stainless steel and anodized aluminum which makes it particularly resistant.


Characteristics

  • Rated power : 2000VA or 1600W
  • Pure Sine inveter (ideal for sensitive appliances or in need of a high starting current).
  • Tranformerless,
  • Battery protection with alarm and disconnection in case of low battery,
  • Low self-consumption
  • Dc reverse polarity, over-temperature and short-circuit protection
  • solation between input and output in order to secure the device



Pure sine inverter icon

Pure Sine inveter

This converter is a Pure Sine Wave Inverter which reproduces an current similar to the public electricity network. It can be used to supply all the types of devices in energy.




Example of use

scheme : use of the WKS - 230V inverter




Specifications



RATED POWER2000VA or 1600W
INPUT
Nominale DC voltage24 VDC
Cold start voltage23 VDC
Acceptable Voltage Range21 VDC ~ 29 VDC
Low DC Warning Voltage@ load <20%  :   22.0 VDC
@ 20% ≦ load < 50%  :   21.4 VDC
@ load ≧ 50%  :   20.2 VDC
Low DC Warning Return Voltage@ load <20%  :   23.0 VDC
@ 20% ≦ load < 50%  :   22.4 VDC
@ load ≧ 50%  :   21.2 VDC
Low DC Cut-off Voltage@ load <20%  :   21.0 VDC
@ 20% ≦ load < 50%  :   20.4 VDC
@ load ≧ 50%  :   19.2 VDC
Efficiency> 90 %
No Load Power Consumption< 20 W
Saving Mode Power Consumption< 10 W
OUTPUT
AC Voltage Regulation (Batt. Mode)230VAC ± 5%
Surge Power4000 VA
WaveformPure sine wave
PHYSICAL
Dimension, D x W x H (mm)82 x 232 x 369 mm
Net Weight (kgs)4,3 kg
OPERATING ENVIRONMENT
Humidity5% à 95% Relative Humidity (Non-condensing)
Operating Temperature0°C - 55°C
Storage Temperature-15°C - 60°C

Product Reviews
  • Number of Reviews : 1
  • Average Grade : 5 /5
  • T. Laye
  •  the 21/12/2017
  • 5/5
Tres bien

Specifications

Voltage24V
Power2000 VA
Inverter power2000VA
