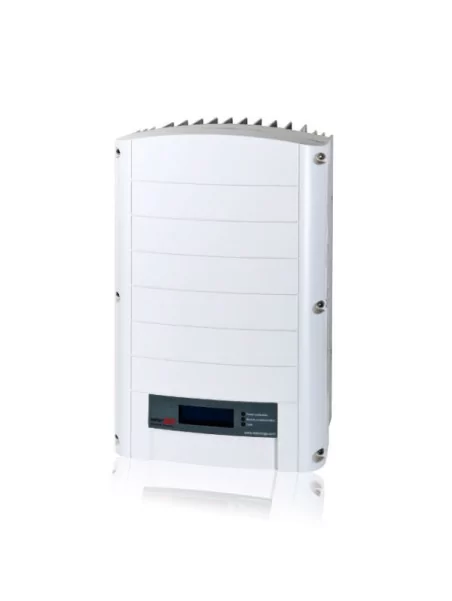

SolarEdge SE - 10 k

SolarEdge SE - 10 k View full size

-Superior performance (97.4%)

-Compact, light and easy to install

-Monitoring integrated at the level of the module

-Communication to the internet via Wireless or Ethernet

-IP65 - indoor and outdoor installation





This product is replaced by a new generation available on our site.
You can find it by clicking here.

More info

More details

2 099,18 € tax incl.

Add to cart

By buying this product you can collect up to 209 loyalty points. Your cart will total 209 points that can be converted into a voucher of 62,70 €.


More info

Up to 25% more energy





Created in 2006, as a private company by a group of professionals with extensive experience in the solar, SolarEdge provides a full solution to today's photovoltaic problems. The Solaredge system increases the performance of the PV system from 5 to 25% thanks to a centralized inverter and the individual "PowerBox" for each Panel.



  • Increase in energy efficiency & ROI faster with a {linkpopup id = 'mppt'} to the module level


-No loss of energy at the level of the module
-No loss due to shading part. No loss due to dirt
-No loss due to aging

Free design of coercion

  • Maximum use of space with a time minimum design

-Modules on different directions and angles in the same chain
-Different types of modules on a single string
-Chains of different lengths that are connected to the same inverter
-Longer strings - up to 50 modules per string

Low cost maintenance

  • Full visibility of the system's performance and repair of failures remotely

-The performance data to the module level
-Presentation of the entire system on a virtual map of the site
-Automatic alerts when problems on the system
-Easy access via the web browser from a PC or SmartPhone

SafeDC - DC Protection

  • Protection during installation, maintenance, in case of fire or other emergency

-Installation: voltage secure on the string while the inverter and AC power supply are powered
-Maintenance: voltage secure automatic channel once the UPS turns off
-Emergencies: voltage secure on line - automatic after disconnecting the grid



Technical data

Output

Nominal AC output power: 10000W

Maximum AC output power: 10000W

Rated AC output voltage: 380 / 220; 400 / 230

AC output voltage range: 184 264.5V

Rated frequency AC: 50/60 Hz

Instensite maximum continuous output: 16A

Monitoring: Yes

Entry

Recommended DC max power: 11,000

Without transformer, without ground: Yes

Input voltage max: 950V

Nominal input voltage: 750V

Maximum input intensity: 16.5 A

Reverse polarity protection: Yes

Maximum output of the inverter: 97.6%

Night use: < 2.5W

Additional features

Communication interfaces: {linkpopup id = 'rs485'}, {linkpopup id = 'rs232'}, {linkpopup id = 'ethernet'}, Zigbee (optionally)

Compliance with the standards

Security: IEC-62103 (EN50178), IEC 62109

Network connection: VDE 0126-1-1, VDE-AR-N-4105, ACE-4777, RD-1663, DK 5940

Emissions: IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12

RoHS: Yes

Installation specifications

AC output: diameter of the cable gland 11-17 mm

DC input:
{linkpopup id = 'mc4'}

Dimensions: 540 X 315 X 260 mm

Weight: 19 kg

Cooling: natural convection

T range (operation): -20 ° + 50 °





Optional

Wifi communication module

Boitier de communication wifi


Allows you to connect your UPS to your computer via Wifi.

Provided with program to record all the details of your production.



























Specifications

Maximum PV input voltage950 V
Power10000 VA
Monophasé / TriphaséMonophasé
Nombre de MPPT1 MPPT
Inverter power10000VA
