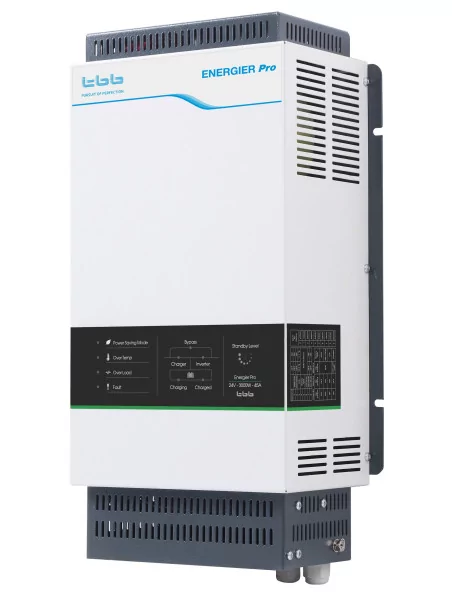

Inverters TBB CF 12V / 24V /48V - from 2000 to 4000W

TBB Power

986,20 € tax incl.

Options

Converter and loader TBB CF - 2000 to 4000W
This inverter combines a heavy-duty box:

  • a converter pure sine
  • a battery charger
  • AC transfer switch.

It is particularly suitable for places with limited access to the electricity grid.

Please choose your model in the options!

TBB





More details

More info

Gathered in a ultra tough case a converter and a charger!



The solution for places with limited access to the public network

Inverter CF integrates a sophisticated charger, a converter to sine waves and an AC transfer switch at high speed in a single case.

It is ideal for locations where the public of electricity or limited or unreliable network access and can be used with a generator.
So, the inverter is able to manage 2 independent sources of input and switch automatically from one to the other (ex: network and generator) while ensuring power supply particularly demanding devices such as air conditioners.

Robustness and performance

The unit is designed to deal with particularly demanding environments: places rugged, dust, insects, heat,...

Characteristics of the product

  • Output wave pure sine with exceptional peak power
  • Efficiency up to 95%,
  • Low consumption,
  • Fully programmable
  • Suitable for use in areas with high ambient temperature



Technical characteristics



ModelCF-12V-60-2000
CF-24V-30-2000
CF-48V-15-2000

CF-12V-90-3000
CF-24V-45-3000
 CF-48V-20-3000


CF-48V-30-4000
CONVERTER
Nominal voltage of the system12V / 24V / 48V12V / 24V / 48V48V
Output voltage230VAC ± 2%
Output frequency50 Hz ± 0.1%
Power output of the converter to 40 ° (W)2000 W2500W/3000W4000W
Efficiency max12Vdc: 89% / 24Vdc: 92% / 48Vdc: 95%
Consumption standby14 W17 W25 W
Consumption standby - mode power save3.5 W4 W6 W
Output breaker15A30A30A
Overload and overheating protectionAutomatic disconnection with 3 tries to reboot
Protection against short-circuitsAutomatic disconnection with 3 tries to reboot
CHARGER
Input ACRange power supply voltage: 200VAC - 264VAC / input frequency: 45 - 65 Hz
Battery charge current60A / 30A / 15A 90A / 45 / 20A30A
The charger circuit breaker15A30A30A
Battery typeAGM / GEL / OPzS / LFP / Flooded / carbon Lead
GENERAL
CaseSteel
Battery connection2 x nuts M6
Dimensions485 x 265 x 145 mm
Weight18 kg19.2 kg21 kg
CoolingFan
ProtectionIP22



Specifications

Voltage12V, 24V, 48V
Power2000-6000 VA
Monophasé / TriphaséMonophasé
Inverter power5000VA, 4000VA, 3000VA, 2000VA, 6000VA
