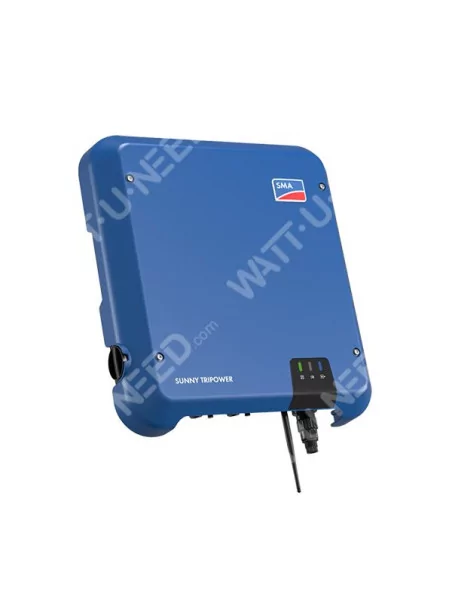

SMA Sunny Tripower STP 10.0 TL INT BLUE

SMA

2 551,40 € tax incl.

Three-phase inverter SMA Sunny Tripower - model: 10.0TL

With the Sunny Tripower 8.0-10.0, residential photovoltaic installations and small commercial installations redouble their performance. This ultra high-performance inverter will also offer absolute comfort to its users. Through integrated services and solutions to manage the shading, it meets all the challenges regardless of the roof. Sunny Tripower ensures maximum energy production and reduced the electricity bill.





Time to be confirmed before placing an order.





More details

More info

 SMA STP 10000tl

SMA Sunny tripower 10.0

The new Sunny Tripower 8.0-10.0 ensures maximum energy production for households. It combines the integrated SMA Smart Connected service with smart technology meets all the needs. Its very compact design allows an easy and quick installation. With the on-Board Web interface, the Sunny Tripower is quick to put into operation via smartphone or tablet. And to meet the requirements of installations on roofs, it is possible to add easily and at your convenience optimizers TS4 - R, in the case of shading for example. Compatible with the latest standards of communication, the inverter can be equipped at any time and reliably solutions of intelligent management of energy and storage SMA.







Quick and simple installation

With its low weight, this three-phase inverter is compact and easy to install. Thanks to the on-Board Web interface, the Sunny Tripower is quick to put into operation via smartphone or Tablet





Smart solar electricity generation

Sunny Tripower is unique in its kind: proven features, such as OptiTrac Global Peak and SMA Smart Connected, are now accompanied by an integrated communication TS4 - R for the optimization of the panels. Thus, the shadows on the photovoltaic panel are no longer a problem. In the case of light shading, integrated shading OptiTrac Global Peak management ensures maximum production. In the case of most important shades or complex roofs, optimizers TS4 - R, whose installation is simple and selective, allow for optimal production.





Expandable at any time

With the Sunny Tripower, photovoltaic facility owners and installers always have a solution to state of the art. If the use of solar electricity in the home should increase, facilities with Sunny Tripower can be equipped at any time of intelligent management of energy and SMA storage solutions.





Investment security guaranteed



With SMA Smart Connected, SMA is the first manufacturer to offer supervision free and automatic inverter which allows photovoltaic Installer to ensure fast and targeted services to its customer. ADM informed proactively photovoltaic installation owner or installer of any malfunction of the inverter. The time of diagnosis and downtime are thus minimized, all to the benefit of the owners of photovoltaic installations and installers. If a replacement is necessary, ADM shipping the ups to exchange free of charge and as soon as possible.












SMA Smart Connected - operation





Activation of SMA Smart Connected

As an installer, you enable SMA Smart Connected during the recording of the installation on Sunny Portal and this starts automatic monitoring by SMA inverters.

Automatic monitoring of the inverters

ADM performs automatic and permanent of the inverter control in order to detect operating problems. You and your client take advantage of the experience of longtime ADM.

Proactive communication

After having diagnosed and analyzed a mistake, ADM immediately informs the installer and the customer by e-mail. All parties are thus prepared for the correction of errors, which minimizes downtime and saves time and money. In addition, regular performance reports provide valuable information on the overall system.

Alternative service

If a device needs to be replaced, ADM automatically book a new UPS within a period of 1 to 3 days after the diagnosis of error. As your Installer, you can thus anticipate the owner's request and proceed with the replacement of the inverter.

Service performance

If the replacement UPS cannot be delivered within a period of 3 days, the owner of the facility is entitled to seek compensation on behalf of ADM.

SMA Smart Connected is available in at the, AT, BE, CH, are, en, IT, LU, NL, UK











 Features



ModelSunny Tripower 8.0Sunny Tripower 10.0
(DC) input
Maximum load of the photovoltaic generator15000 Wp
Input voltage max.1000 V
MPP voltage range260 v to 800 V320 v to 800 V
Rated input voltage580 V
Input min voltage / startup input voltage input maximum input A / input B125 V / 150 V
Input min. / start input voltage 20A 12 HAS
Short-circuit current max. input A / input B30A / 18A
Number of entries independent MPP / strings by entry MPP2 / A:2; B:1
Output (AC)
(For 230 V, 50 Hz) rated power8000 W10000 W
Apparent power AC max.8000'S10000 GOES
Rated voltage AC3/N/PE; 220 V / 380 V 3/N/PE. 230 V / 400 V 3/N/PE. 240 V / 415 V
AC voltage range180 v to 280 V
AC mains frequency / range50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Rated network frequency / voltage of system assigned50 Hz / 230 V
Maximum output current3 x 12.1 has3 x 14.5 A
Power at rated power factor / factor adjustable phase shift1 / 0,8 inductive to 0.8 capacitive
Phases of injection / connection phases3/3
Performance
Maximum performance / European performance98.3% / 97.7%98.3% / 98.0%
Protection devices
Disconnection device side entry
The ground fault monitoring / network monitoring●/●
DC polarity protection / resistance to AC circuits / galvanic separation of the fault current monitoring unit, sensitive to all currents●/● / -.
(According to IEC 62103) protection class / overvoltage (according to IEC 60664-1) General features categoryI / III
General characteristics
Dimensions (L / H / P)460 mm / 497 mm / 176 mm (18.1 inches / 19.6 inches / 6.9 inch)
Weight20.5 kg (45.2 lbs)
Operating temperature range−25 ° C to + 60 ° C (13 ° F to + 140 ° F)
Emissions, noise, typical30 dB (A)
Consumption (night)5.0 W
Topology / cooling systemTransformerless / Convection
Protection (according to IEC 60529)IP65
Climate class (according to IEC 60721-3-4)4K4H
Maximum value allowed for the relative air humidity (without condensation)100.00%
Equipment
Connection DC / AC connectionSUNCLIX / plug AC
Display via smartphone, Tablet, computer laptop
Interfaces: WLAN / Ethernet / RS485●/●/●
Communication protocolsWebconnect, SMA (SMA, Sunspec), Modbus Data, TS4 - R
Management of shading: OptiTrac Global Peak / TS4 - R● / ○
Warranty: 5 / 10 / 15● / ○ / ○
Certifications and approvals (others on request)AS 4777.2, C10/11, THIS CIS 0-21 IN 50438, G59/3-4, 2-G83/1,.
62109 DIN / IEC 62109, NEN-EN50438, OVE/ÖNORM E 8001-4-712 & TOR D4, PPC, PPDS, RD1699, SI4777, TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1, VFR 2014
Availability of SMA Smart Connected countryAT THE, AT, BE, CH, A, ARE, EN, IT, LU, NL, UK
The type designationSTP8.0 - 3AV-40STP10.0 - 3AV-40





Specifications

Maximum PV input voltage1000 V
Monophasé / TriphaséTriphasé
Width460 mm
Height497 mm
Thickness176 mm
Inverter power10000 VA
