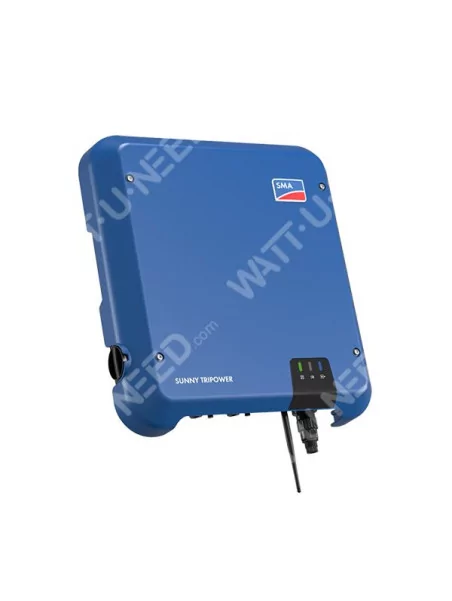

    Three-phase inverter SMA Sunny Tripower STP 10 kVA TL INT BLUE

    €2,956.33
    Tax included
    SMA-Blue-10.0-TL-INT
    0768563816260

    SMA Sunny Tripower three-phase inverter - model: 10.0TL

    The Sunny Tripower 8.0-10.0 boosts the performance of residential and small commercial photovoltaic systems. This ultra-high-performance inverter also offers users absolute convenience. Thanks to integrated services and shade management solutions, it meets every challenge, whatever the roof. The Sunny Tripower guarantees maximum energy production and low electricity bills.

    100% secure payments
    Last items in stock

    Three-phase inverter SMA...

    €2,956.33

    SMA Sunny tripower 10.0

    Onduleur triphasé SMA Sunny Tripower STP 10.0 TL INT BLUEThe new Sunny Tripower 8.0-10.0 guarantees maximum energy production for households. Its compact design makes installation quick and easy. And to meet the specific requirements of rooftop installations, TS4-R optimizers can be added easily and at your convenience, for example in the event of shading. Compatible with the latest communication standards, the inverter can be reliably equipped with SMA's intelligent energy management and storage solutions at any time.


    Quick and easy installation

    With its low weight, this three-phase inverter is quick and compact to install.


    Production intelligente d’électricité solaire

    Intelligent solar power generation

    The Sunny Tripower is unique: tried-and-tested features such as OptiTrac Global Peak are now accompanied by integrated TS4-R communication for panel optimization. Shadows on the photovoltaic panel are no longer a problem. In the event of light shading, the integrated OptiTrac Global Peak shading management system ensures maximum production. In the case of more severe shading or complex roofs, TS4-R optimizers, which are simple and selective to install, ensure optimum production.


    Expandable at any time

    With Sunny Tripower, photovoltaic system owners and installers always have a state-of-the-art solution at their disposal. Should the household's use of solar power increase, Sunny Tripower systems can be upgraded at any time with SMA's intelligent energy management and storage solutions.


    Features

    ModelSunny Tripower 8.0Sunny Tripower 10.0
    Input (DC)
    Max. power of photovoltaic generator15000 Wp
    Max. input voltage1000
    V
    MPP voltage range260 V to 800 V320 V to 800 V
    Rated input voltage
    V
    Min. input voltage / start-up input voltage Max. input current A / input B125 V / 150 V
    Min. input current./ starting input voltage 20 A /12 A
    Max. short-circuit current.
    input A / input B30 A / 18 A
    Number of independent MPP inputs / strings per MPP input
    A:2 ; B:1
    Output (AC)
    Rated power (for 230 V, 50 Hz)
    W10000 W
    Max. apparent AC power
    VA10000 VA
    Rated AC voltage
    ; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE;
    240 V / 415 V
    AC voltage range180 V to 280 V
    AC mains frequency / range50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
    Rated mains frequency / rated mains voltage50 Hz / 230 V
    Maximum output current
    12,1A
    14.5 A
    Power factor at rated power / adjustable phase shift factor
    / 0.8 inductive to 0.8 capacitive
    Injection phases / connection phases
    Efficiency
    Max. efficiency.
    / European efficiency98.3 % / 97.7 %98.3 % / 98.0
    Protective devices
    Input-side disconnection device
    Earth fault monitoring / mains monitoring●/●
    DC reverse polarity protection / AC short-circuit resistance / galvanic separation Fault current monitoring unit,
    sensitive to all currents●/●/-
    Protection class (to IEC 62103) / overvoltage category (to IEC 60664-1) General data
    / III
    General data
    Dimensions (W / H / D)460 mm / 497 mm / 176 mm (18,
    1
    inches / 19.6 inches / 6.9 inches)
    Weight20.5 kg (45.2 lb)
    Operating temperature range-25 °C to +60 °C (-13 °F to +140 °F)
    Noise emissions, typical30 dB(A)
    Autoconsumption (night)
    ,0 W
    Topology / cooling systemTransformerless / Convection
    Protection class (to IEC 60529)IP65
    Climatic class (to IEC 60721-3-4)
    Maximum permissible value for relative air humidity (non-condensing)100,00%
    Equipment
    DC
    / AC connectionSUNCLIX / AC plug
    Shade management :
    OptiTrac Global Peak / TS4-R●/ ○
    Warranty: 5 / 10 / 15 years●/ ○/ ○
    Certifications and approvals (others on request)AS 4777.2, C10/11, CE, CEI 0-21, EN 50438, G59/3-4, G83/2-1,
    DIN EN 62109 / IEC 62109, NEN-EN50438, ÖVE/ÖNORM E 8001-4-712 & TOR D4, PPC, PPDS, RD1699, SI4777, TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1, VFR 2014
    Type designationSTP8.0-3AV-40STP10.0-3AV-40
    SMA-Blue-10.0-TL-INT
    1 Item

    Data sheet

    Inverter power
    10000 VA
    Max. solar input voltage
    1000 V
    Phase
    Triphasé
    Width
    460 mm
    Height
    497 mm
    Thickness
    176 mm
