SMA Sunny Boy INverter 2.0

SMA

947,80 € tax incl.

The new series for small photovoltaic installations

Sunny Boy 2.0 allows local monitoring via the device's own wireless network or online monitoring with Sunny Portal or Sunny Places







More details

More info

Description



The new Sunny Boy 1.5 and 2.5 inverters are the ideal solution for small photovoltaic installations.

Easy to set up, the inverter is compatible with a wide range of photovoltaic panels thanks to its extended voltage range (80 - 600V) which makes it very flexible while displaying excellent performance.

Small in size, it is also particularly light. It fits easily indoors or outdoors

The installation is easy both indoors and outdoors thanks to its sturdy and lightweight case, ideal for small photovoltaic installations.

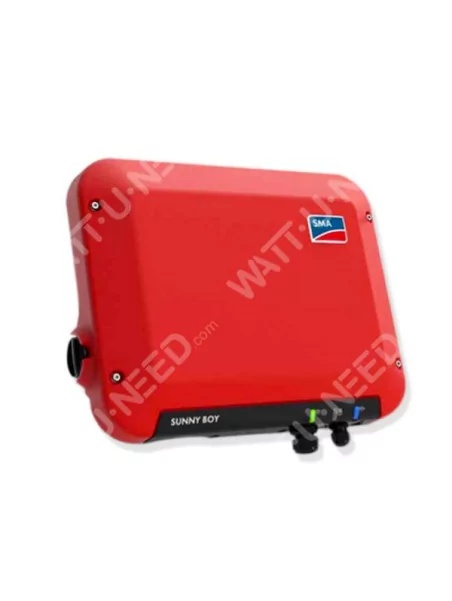

Photo of the Sunny boy 1.5 / 2.5 inverter

Characteristics



• Yield up to 97.2%
• No transformer
• No maintenance thanks to convection cooling
• DC SUNCLIX connection system
• Easy to install
•Extended entry voltage range
• WLAN and Speedwire interface included
• Monitoring installation on smartphone/tablet (WebUI interface)


Yield curve

Yield curve






Optitrac technology

Optitrac technology



OptiTrac Global Peak is an additional feature of the proven "OptiTrac" MPP tracker and is activated on this inverter

This is used in the case of partially shaded photovoltaic installations. Even in this configuration, this special operating mode ensures the panels operate continuously at the maximum power point, with no significant impact on performance (loss < 0.2%). Aurement says: even in case of shading the panels work properly.




Installation and commissioning




Setting up with WebUI




Technical features



Model Sunny Boy 2.0
Entry (DC)
Maximum power of the photovoltaic generator 4000 Wp
Maximum input voltage. 600 V
MPP voltage range 210 V to 500 V
Assigned input voltage 360V
Min. input voltage / start-up input voltage 50V/80V
Entry current max. by thong 10A
Current short-circuit max. by thong 18A
Number of independent MPP entries / strings per MPP entry1/1
Exit (AC)
Assigned power (for 230V, 50Hz)2000 W
Apparent power AC max.2000 VA
AC nominal voltage220 V / 230 V / 240 V
RANGE of rated ac voltage180 V to 280 V
AC/beach network frequency 50 Hz, 60 Hz / 5 Hz to 5 Hz
Assigned network frequency / Assigned network voltage 50 Hz / 230 V
Maximum output current9 A
Power factor for assigned power1
Adjustable phase-shift factor 0.8 inductive to 0.8 capacitive
Injection phases / connection phases 01/01/19
Performance
Maximum return / European return 97,2 % / 96,4 %
Protective devices
D.C. side disconnection device
Ground defect monitoring/network monitoring ●/●
DC polarity reversal protection / AC short-circuit resistance/galvanic separation●/●/-
Fault current monitoring unit, sensitive to all currents
Protective class (according to CIS 62103) surge category (according to CIS 60664-1)I/III
Back-current protection Useless
General features
Dimensions (L/H/P)460 / 357 / 122 mm (18.1 / 14.1 / 4.8 inches)
Weight 9.2 kg (20.3 lbs)
Operating temperature range'40C to '60'C 'C' ('40' to '140'
Typical sound emissions<25 dB
Self-consumption (night)2.0 W
Topology No transformer
Cooling systemConvection
Protection Index (according to CIS 60529)IP65
Climate class (according to CIS 60721-1-3-4)4K4H
Maximum allowable value for relative air humidity (without condensation) 100,00%
Equipment
DC Connection / AC ConnectionSUNCLIX / connector
Display via smartphone, tablet, laptop
Interfaces: WLAN / Ethernet●/●
Communication protocolsModbus (SMA, Sunspec), Webconnect
Guarantee 5/10/15/20 years● / ○ / ○ / ○
Certifications and certifications (other on request)AS4777, C10/11, CE, CEI0-21, DIN EN 62109-1/IEC 62109-1, DIN EN
62109-2/IEC 62109-2, EN50438, G83/2, IEC61727, IEC62116, NBR16149,
NEN-EN50438, NRS097-2-1, VDE-AR-N4105, VDE 0126-1-1, VFR2014
SMA Smart Connected Availability Country AU, AT, BE, CH, DE, ES, EN, IT, LU, NL, UK
Type designation SB2.0-1VL-40



Specifications

Weight9,2 Kg
Monophasé / TriphaséMonophasé
Width460 mm
Height357 mm
Thickness122 mm
Inverter power2000VA
