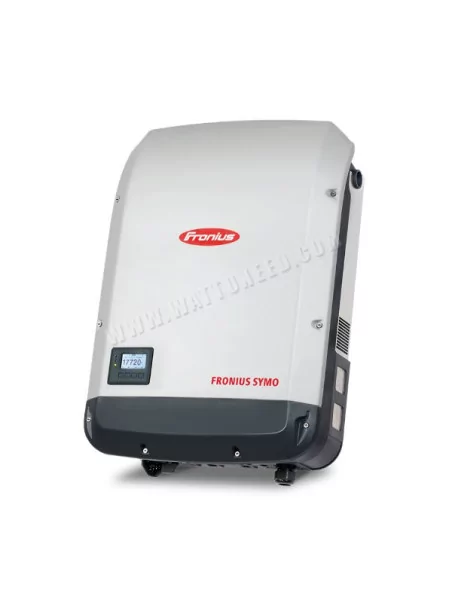

Fronius Symo 10.0-3-M-OS (2MPPT) Tri

Fronius

3 254,26 € tax incl.

Thanks to the Design SuperFlex, Fronius Symo adapts perfectly to all orientations of roofs, even if significant asymmetries.

Fronius Symo Oversize is one of the most interactive inverters of the market because of the connection of series to the Internet through WLAN or Ethernet as well as easy integration of third-party components.

As well, the meter interface allows dynamic management of the injection and a clear visualization of consumption. In addition to these benefits, it is possible to oversize facilities up to 25 KWP Thanks to the OS Symo 10 kW.



To know the delivery time, you can contact us by chat, email or phone.

More details

More info

Fronius SYMO 10.0-3-M-OS

Thanks to the Design SuperFlex, Fronius Symo adapts perfectly to all orientations of roofs, even if significant asymmetries. Fronius Symo Oversize is one of the most interactive inverters of the market because of the connection of series to the Internet through WLAN or Ethernet as well as easy integration of third-party components. As well, the meter interface allows dynamic management of the injection and a clear visualization of consumption. In addition to these benefits, it is possible to oversize facilities up to 25 KWP Thanks to the OS Symo 10 kW.



Brand: Fronius

Model: Symo 10.0 - 3-M-OS

Power: 10 kW to 25 kW max.

Dimensions WxHxD: 725 x 510 x 225 mm

Weight: 34.8 kg

Warranty: 5 years


Technology



Simple fastening systemSimple fastening system



The generation of inverters SnapINverter includes a simple and standardised mounting system, which makes installation and maintenance easier than ever. A special feature of the design of the device lies in the fact that login area is separate from the power supply Bay, both installed separately. Remarkably slight login area and its wiring are first attached to the wall, followed by the entire scene of power. The innovative articulated system makes installation and maintenance extremely easy to use. The UPS is simply placed in the wall bracket, then secure.

This means that it is not necessary to remove the inverter for the maintenance, but only the set power level. All wiring is in place.


Integrated Wifi interfaceIntegrated Wifi interface



Fronius is the first manufacturer of inverters to provide a set of data communication with fully integrated data record, WLAN, Ethernet, energy management, Web server and a range of interfaces.

The inverter is connected to the Internet via a network cable or a LAN (WLAN) wireless - without additional wiring - and you offers a perfect overview of the operation of the photovoltaic installation. The connection to third-party components is provided through interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON). Open interfaces can also be used in parallel on Fronius Solar.web.


Design superflex

Design superflex



Fronius SuperFlex Design is an ingenious combination of attributes of technical performance that make your PV system not only extremely simple design, but also incredibly flexible. The SuperFlex design key performance factors are high two MPP followers, as well as a tension system and a wide range of input DC voltages. Each CC entry, and therefore each follower MPP, is able to manage all of the nominal output of the inverter. That the inverter is faced with different orientations of roof, shading a or two strings or to the use of residual modules, a Fronius inverter with integrated SuperFlex technology will satisfy all the scenarios of planning a system PV operating using a single model of inverter.


Manager of dynamic peakManager of dynamic peak



Dynamic Peak Manager is a new MPP tracking algorithm that dynamically adapts its behavior when searching for the optimal operating point. Its particularity is that Dynamic Peak Manager checks automatically and regularly the entire characteristic curve and research the point of maximum power overall (GMPP) overall, even in partial shade


Ready for Smart GridReady for Smart Grid



Fronius inverters are ready for the Smart Grid of the future. The inverters are perfectly equipped to meet the technical requirements of the networks in the future. A series of smart features, called advanced network features is built into the devices. They include a number of control functions for optimal nutrition of the reactive power and the effective power. These functions are designed to allow stable operation of the network, even when the density of the PV system is very high, and to avoid unwanted interruptions of the power supply and the associated if performance losses the network settings exceed the thresholds. Fronius inverters contribute to ensure the performance of a PV system. In addition, where power limits are imposed, Fronius inverters can provide a supply control dynamic with consideration of self-consumption. Simply connect the meter and set the limit of power!


Reset feed-inReset feed-in



Today, a growing number of network operators in various countries stipulate that a limit of PV power supply is a prerequisite for the connection of a network system. Thanks to the dynamic power reduction, Fronius offers a solution for optimal management of the injection. The inverter feeds first domestic energy consumers, then reduced the output of the system maximum of energy use allowed by the network operator. With the injection, Fronius inverters zero is also a possibility with this feature, which means that no PV energy is injected into the network. The relevant requirements of the network operator can be met simply by enabling a setting on the Web interface of the inverter.


Simple, fast and effective mounting

Simple, fast and effective mounting


Manage your production with SolarWeb



Manage your production with SolarWeb


Management of the shading with the DynamicPeakManager

Management of the shading with the DynamicPeakManager

Shading fireplace: 1-2% of additional gain per year for 1 h of shading in the morning and in the evening

Shading of a frame: 2-4% of additional gain per year for 1 h of shading in the morning and in the evening

Energy consumption of the "DynamicPeakManager": ~ 0.05% annual gain



General commissioning Fronius inverters




Technology SnapINverter




Technical feature



Technical feature

Specifications

Monophasé / TriphaséTriphasé
Nombre de MPPT2 MPPT
Inverter power10000VA
