ZeverSolar Eversol TL1500 and TL3000

  • ZeverSolar Eversol TL1500 and TL3000
ZeverSolar Eversol TL1500 and TL3000 View full size

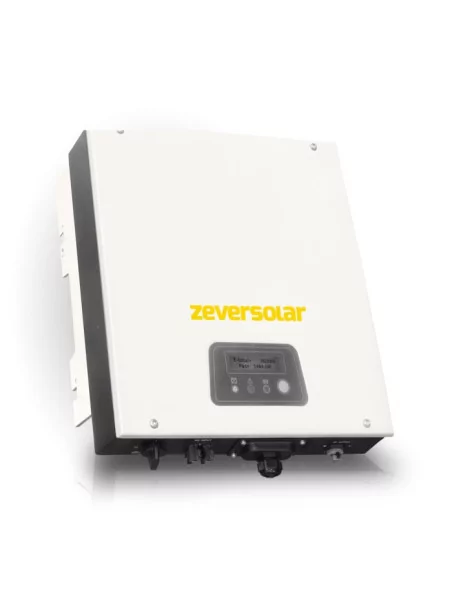

Single-phase inverters Eversol ZeverSolar TL- 1500 and TL-3000.
Without transformer, these inverters are particularly suitable for partially shaded places. Due to their high voltage range, they enable production throughout the day.

Please select your model : EverSol TL-1500 or TL3000.



More info

More details

766,00 €

Options

Add to cart

By buying this product you can collect up to 118 loyalty points. Your cart will total 118 points that can be converted into a voucher of 35,40 €.


More info

" Permet une production du matin jusque tard le soir "


eversol tl 1500 - 3000

Description

Without transformer, these inverters have an efficiency of 97% and are particularly suitable for partially shaded places.


The Eversol inverters have a large voltage range. This allows them to produce from early in the early morning to late in the evening with the last rays of the sun.

  • Increased performances thanks to its integrated MPPT tracker
  • Simple to install and low maintenance
  • IP65 protection class









Characteritics

EversolTL1500TL3000
Rated active power1500W3000W
General data
Dimensions (mm)  352 x 415 x 128mm352 x 415 x 145mm
Weight (kg)11.514
Interface
RS485 / Ethernet / WIFIyes / - / -
Environnement
Relative humidity (non-condensing)0%-100%
Operating temperature range-25 ℃ ... + 60 ℃
Max. Operating altitude2000 m
InstallationWall mounting bracket - Indoor&Outdoor










Technical Data

EVERSOLTL1500TL3000
INPUT DC
Recommended max. PV array power2520W4480W
DC Convertible power1800W3200W
Max. Input Voltage500V
MPP Voltage range/rated input voltage90-450V / 360V
Min. Start voltage80V
Min. Feed-in power10W
Max. Input current per MPPT12A18A
Number of MPPTs1
Number of independent MPP inputs12
OUTPUT AC
Rated active power1500W3000W
Max. Apparent AC power1650W3190W
Nominal AC voltage/range220,230,240V / 180-280V
AC power frequency/range50 / + - 5Hz50,60 / + - 5Hz
Rated power frequency/rated grid voltage50Hz / 230V
Max. Output current9 A 16A
EFFICIENCY
Max. Efficiency97%
MPPT Efficiency99.5%







Efficiency curves

Courbe rendementcourbes rendement



Specifications

Power1500 VA à 3000 VA
Monophasé / TriphaséMonophasé
Nombre de MPPT1 MPPT
Inverter power3000VA, 1500VA
