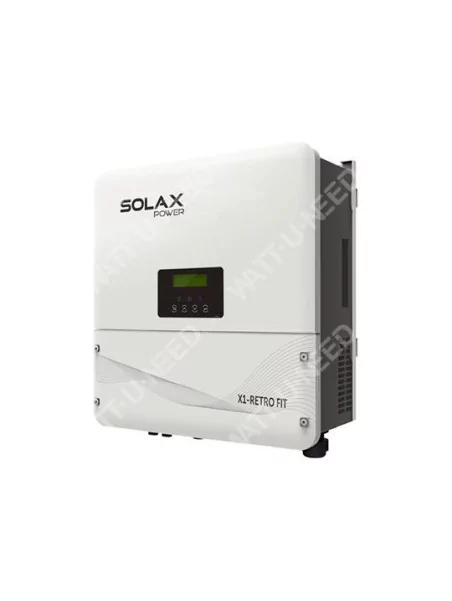

Inverter Solax X1 Retro Fit 5.0 kW X1-FIT-5.0-W View full size

Inverter Solax X1 Retro Fit 5.0 kW X1-FIT-5.0-W

Solax

1 804,10 € tax incl.

If your home experiences a power outage, the X1 Retro Fit returns the energy stored at home, so you never stay in the dark, even during a power outage.

More details

More info

SolaX single phase X1 RETRO FIT 5.0 kW - HIGH VOLTAGE X1-MADE-5.0-W

Solax X1 Retro FIT

SolaX Power is pleased to announce the release of its new X1 Retro Fit charger. Produce energy from your solar panels during the day. Once the bottom charge is satisfied, the SolaX X1 Retro Fit smart charger will direct the excess energy to your battery for later use. This allows you to make the best use of the energy you produce. If your home experiences a power outage, the X1 Retro Fit returns the energy stored at home, so you never stay in the dark, even during a power outage. Compatible with all inverter manufacturers, the X1 Retro Fit charger is the perfect upgrade to your system.



Add to existing PV systems

The SolaX X1 Retro-Fit can be installed next to any string inverter on the market today, allowing you to switch to solar battery storage without changing your current installation. You also get the added benefit of a backup power supply, allowing you to stay powered during a power outage.



Never lose power

With the SolaX X1 Retro-Fit, you can make sure you never find yourself without electricity, even during a power outage. A backup power supply or "EPS" switch (only available on "E" models) allows the X1 Retro-fit to run completely off-grid, meaning that all the energy you've stored on your batteries will now be used in the event of a power outage.



Install indoors or outdoors

The X1 Retro-Fit is rated IP65, which means it can be installed indoors or outdoors, giving you the option to choose where to install the system.


Characteristics

AC OUTPUT
Rated AC Power (VA)4999
Max AC power (VA)4999
Rated electrical network voltage (AC voltage range) (V)220/230/240 (180 – 270)
Frequency/Rated Range of the Power Grid (Hz)50/60
Rated AC current (A)21,7
Current AC max. (A)21,7
Displacement power factor0.8 in the lead to 0.8 in the tail
THDi, rated power(%)<2
AC INPUT
Max apparent power in AC [VA]4999
Ac current [A]21,7
Nominal network voltage(AC voltage range) [V]220/230/240 (180 – 270)
Nominal network frequency/frequency range [Hz]50/60
BATTERY
Battery voltage range [V]85 – 400
Recommended battery voltage [V]300
Max continuous charging/discharging current.20
Communication interfacesCAN / RS485
Reverse connection protectionYes
OFF-GRID OUTPUT (WITH BATTERY)
Apparent power MAX. continuous [VA]600
Rated Voltage [V],Frequency [Hz]230, 50/60
MAX direct current.26
Peak Apparent Power [VA]8000
Failover time [ms]<500
THDv linear load [%]<2
Switching deviceExternal
EFFICIENCY
Battery charging efficiency (GRID to BAT)95,60
Max efficiency Battery discharge efficiency (BAT to AC)97,00
ENERGY CONSUMPTION
Standby (Night) [W]<15 for hot standby, <3 for cold standby
SECURITY AND PROTECTION
Overvoltage and undervoltage protectionYes
Monitoring of ground fault protectionYes
Network ProtectionYes
STANDARD
SecurityIEC61407
EMCEN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3
CertificationVDE 0126-1-1 A1:2012 / VDE-AR-N 4105 /G99 / G98 / AS4777 / EN50549 / IEC 0-21 / VDE 2510 / etc.
ENVIRONMENTAL LIMIT
Degree of protection (according to IEC60529)IP65
Operating temperature range [°C]-20 ~ +60 (downgrading to +45)
Maximum altitude of use [m]<2000
Humidity [%]0~100 (condensation)
Storage temperature [°C]- 20 ~+60
Typical noise emission [dB]40
DIMENSIONS AND WEIGHT
Dimensions [mm]476 x 464 x 180
Weight [kg]23
Cooling conceptNatural
TopologyNon-isolated
Communication interfacesEthernet
Meter
Pocket WiFi (optional)
Pocket LAN (optional)
Pocket GPRS (optional)
DRM
USB
ISO alarm
CT
LCDYes
Standard Warranty [year]5

Specifications

MPPT/PWMMPPT
Weight23 kg
Monophasé / TriphaséMonophasé
Width464 mm
Height476 mm
Thickness180 mm
