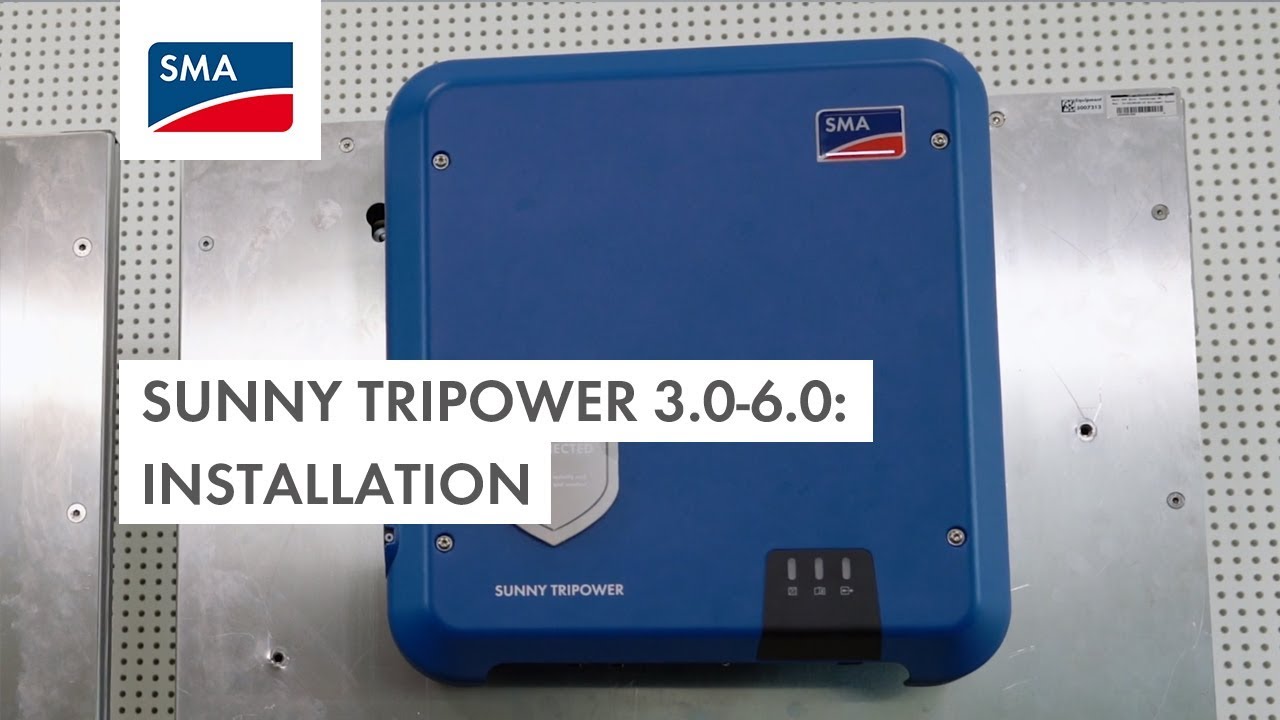

SMA Sunny Tripower STP 5.0 TL INT BLUE

SMA

1 677,11 € tax incl.

Three-phase inverter SMA Sunny Tripower - model: 5.0TL
This inverter is optimal for traditional residential photovoltaic installations for the much more powerful facilities.



Time to be confirmed before placing an order.







More details

More info

Description



Economic

  • Maximum efficiency of 98%
  • Management of the shading with Opti-Trac Global Peak
  • Active management of the temperature by OptiCool

Flexible

  • Up to 1000 V DC input voltage
  • Built-in networking features
  • Reactive power injection
  • Precise dimensioning of the installation through Optiflex modules

Interactive

  • SMA Webconnect
  • Integrated Ethernet with Sunny Portal communication
  • Communication Bluetooth®
  • Easy adjustment of the locale
  • Series multifunction relay

Simple

  • Three-phase injection
  • Connecting the cables without tool
  • DC SUNCLIX connection system
  • Integrated ESS DC switch-disconnector
  • Simple wall mounting

Optitrac de SMA

Optitrac



OptiTrac Global Peak is an additional function of the MPP tracker for operation in partially shaded PV facilities.
This specializing in operations management ensures that the modules are constantly operated the most of power, even in the presence of several maximum output (in the case of partially shaded PV systems), without measurable performance loss (loss < 0.2%). In other words, even if the shading panels properly.



 Features

Technical characteristicsSunny Tripower 3.0Sunny Tripower 4.0Sunny Tripower 5.0Sunny Tripower 6.0
(DC) input6000 Wc8000 Wc9000 Wc9000 Wc
Maximum load of the photovoltaic generator850 V
Input voltage max.140 v to 800 V175 v to 800 V215 v to 800 V260 v to 800 V
MPP voltage range580 V
Rated input voltage125 V / 150 V
Input min voltage / startup input voltage input maximum input A / input B12A / 12 A
Short-circuit current max. input A / input B18 A / 18A
Number of entries independent MPP / strings by entry MPP output (AC)2 / A:1; B:1
(For 230 V, 50 Hz) rated power3000 W4000 W5000 W6000 W
Apparent power AC max.3000 GO4000'S5000 GOES6000 GOES
Rated voltage AC3/N/PE; 220 V / 380 V 3/N/PE. 230 V / 400 V 3/N/PE. 240 V / 415 V
AC voltage range 180 v to 280 V
AC mains frequency / range50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Rated network frequency / voltage of system assigned50 Hz / 230 V
Output current max.3 x 4.5 A3 x 5.8 A3 x 7.6 A3 x 9.1 has
Power at rated power factor / factor of dephasing adjustable injection Phases / stages of connection1 / 0,8 inductive to 0.8 capacitive
Performance
Maximum performance / European performance98.2% / 96.5%98.2% / 97.1%98.2% / 97.4%98.2% / 97.6%
Protection devices
Disconnection device side entry
The ground fault monitoring / network monitoring●/●
DC polarity protection / resistance to AC circuits / galvanic separation●/● / -.
The fault current monitoring unit, sensitive to all current protection (according to IEC 62103) class / category of overvoltage (according to IEC 60664-1)
(According to IEC 62103) protection class / category of overvoltage (according to IEC 60664-1)I / III
General characteristics
Dimensions (L, H, P)435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inch)
Weight17 kg (37.4 lb)
Operating temperature range −25 ° C to + 60 ° C (13 ° F to + 140 ° F)
Emissions, noise, typical30 dB (A)
Consumption (night)5.0 W
Topology / cooling systemTransformerless / Convection
Protection (according to IEC 60529)IP65
Climate class (according to IEC 60721-3-4)4K4H
Maximum allowed value for the relative humidity (without condensation) equipment100.00%
Equipment
Connection DC / AC connectionSUNCLIX / plug AC
Display via smartphone, Tablet, computer laptop
Interfaces: WLAN / Ethernet / RS485●/●/●
Communication protocolsWebconnect, SMA (SMA, Sunspec), Modbus Data, TS4 - R
Management of shading: OptiTrac Global Peak / TS4 - R○/●
Warranty: 5 / 10 / 15○/●/○
Certifications and approvals (others on request)ACE 4777, C10/11, THIS CIS 0-21, DIN 62109-1/IEC 62109-1, DIN 62109-2/IEC 62109-2, 50438, G59/3, G83/2, NEN-EN 50438, OVE / ÖNORM E 8001-4-712, PPDS, PPC, 1699, IF 4777 RD, TR 3.2.1 UTE C15-712, VDE-AR-N 4105, VDE 0126-1-1, VFR 2014
Certifications and approvals (in project)DEWA 2016, 62116, IEC 61727, IE-EN 50438, NBR 16149, NRS 097-2-1
Availability of SMA Smart Connected countryAT THE, AT, BE, CH, A, ARE, EN, IT, LU, NL, UK
The type designationSTP3.0 - 3AV-40STP4.0 - 3AV-40STP5.0 - 3AV-40STP6.0 - 3AV-40

Specifications

Maximum PV input voltage1000 V
Monophasé / TriphaséTriphasé
Nombre de MPPT2 MPPT
Inverter power5000VA
