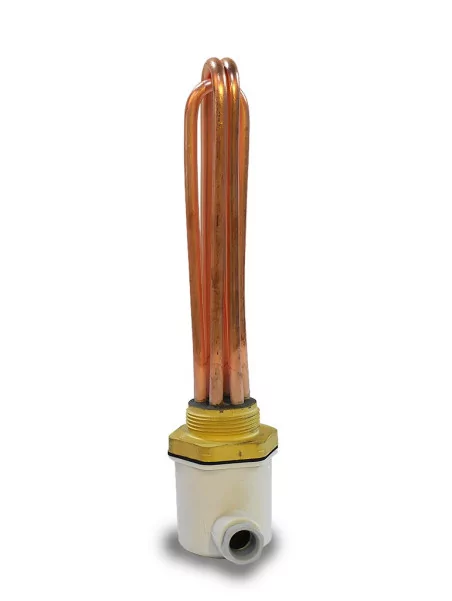

DHW buffer tank resistance kit BURNiT

BURNiT

52,03 € tax incl.

Options

Spare part for DHW buffer tank. Includes a resistance an a double immersion thermostat

Thread diameter: 1 '1/2

Available in 1.5 - 2 - 3 - 4.5 - 6 - 7.5 (1, 2 or 3x) kW

Please select your model from the options below.

Available on order

More details

More info

Spare part for DHW buffer tank.

Available in 1.5 - 2 - 3 - 4.5 - 6 - 7.5 (1, 2 or 3x) kW

Warranty : 1 year

Thread diameter: 1 '1/2





Encased, liquid-filled type, double thermostat, provided with a temperature adjuster and a safety limiter with manual reset.





Conformity to the standards :

This product compiles with:

  • EN 60730-1 and subsequent revisions
  • EN 60730-2-9



Conformity to the guidelines

This product complies with :

  • BT 73/23/EEC
  • EMC 89/336/EEC and later updating of 93/68/EEC
  • CA02.03781 Serie TLSC/A



Technical data :



Temperature range - Adjuster0° - 90°C
Temperature range - Limiter90° - 110°C
Tolerance - Adjuster±5k
Tolerance - Limiter-15k; -6k
Temperature differential - Adjuster6±2k; 4±1k
Temperature differential - Limiter25±8k; 15±8k
Manual reset
Degree of protectionIP 40
Insulation classI
Impulse voltage2,5 kV
Grounding wayBy screw
Mounting wayBy screw
Temperature rate of change< 1K/min
Maximum head temperature80°C
Maximum sensing bulb temperature125°C
Storage temperature-15°C à 55°C
Maximum pressure10 bar
Time constant<1'
Contact ratingC-1 Adjuster : 10(2,5)A/250V~; C-2 Adjuster : 6(2,5)A/250V~
Contact ratingC-1 Limiter: 0,5A/250V~; C-2 limiter : 10(2,5)A/250V~
OutputCutoff or switching contacts
Switch action1B
Pollution degree2
Fairlead typeM20x1,5
