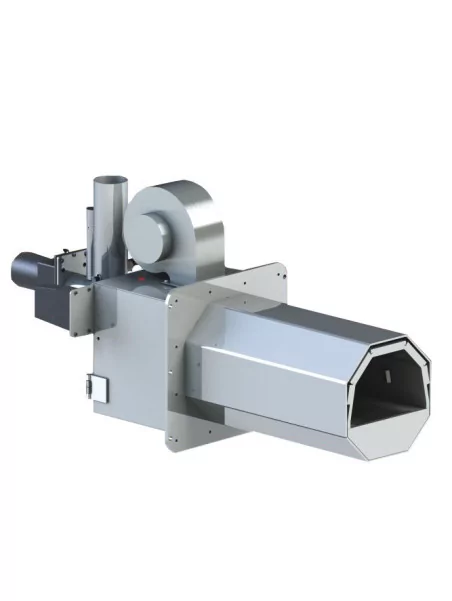

Pellet burner BURNiT Pell Mega 300 / 500kW View full size

Pellet burner BURNiT Pell Mega 300 / 500kW

BURNiT

9 926,40 € tax incl.

Options

The powerful burner Pell Mega is designed for connecting to boilers and enshure an efficient heating of industrial and public buildings -school, hospital, office buildings, factory,  and greenhouses.

Made in Europe

Available on order

More details

More info

Pell Mega BURNiT



The powerful burner Pell Mega is designed for connecting to boilers and enshure an efficient heating of industrial and public buildings -school, hospital, office buildings, factory,  and greenhouses.
Pell Mega is equipped with microprocessor controller; auger; high performance ignition system with ultra fast boot; convenient cleaning of burner grate. Efficiency over 96%.
Optional equipment  for connecting to drier  or bread oven.

Warranty : 1 year



Available sizes, KW :

300, 500



Product Features :



  • Built-in microprocessor controller. Functions:
    - Automated ignition and pellet feed;
    - Self-cleaning function;
    - Controls operation of central heating pump;
    - Controls operation of DHW (domestic hot water) pump;
    - Option for control by room thermostat;
    - Timer;
    - Controls operation of buffer tank.
  • Photosensor monitors the power of the burner flame.
  • Temperature sensor monitors boiler temperature.
  • Temperature sensor monitors water heater temperature.
  • Two temperature sensors monitor buffer tank temperature.
  • Internal auger.
  • Dry contactless resistance heater assuring ignition of fuel.
  • Cleaning of the combustion chamber - manual.
  • Air feed fan, step-regulated  (от 0% to 100 %).





Safety devices :



  • Temperature safety valve with sensor on screw mechanism. Temperature safety valve is connected to a water tank.

  • Thermostatic protection (80°С).

  • Fuse 10А;

  • In case of power interruption, all parameter settings are stored in the memory of the controller. Upon the subsequent restart of the burner, the controller resumes the execution of the program from the point when the power interruption occurred.

  • STB - emergency thermostat (with probe inserted into the socket of the boiler). When boiler temperature is increasing above 100°C, the STB –thermostat stop the operation of feed screw.









Elements of the Pell Mega

1. Electric control box with controller
2. Feeding chute
3. Burner housing
4. Combustion chamber corps
5. Combustion chamber
6. Movable burner grate
7. Temperature safety valve - back fire protection

Technical characteristics :



Pell Mega Chart











  Pell Mega 300Pell Mega 500
Nominal outputkW300500
Burner average power consumption : firing-up modeW~980~1540
Burner average power consumption : operate modeW~419~550
Electric power supllyV/Hz230 AC / 50 Hz230 AC / 50 Hz
Overall dimensions : Height Hmm555770
Width L / Depth Dmm1250 / 4201370 / 520
Minimal recommended size of boiler combustion chamber : Height / Width / Depthmm350 / 390 / 450350 / 450 / 550
Burner operating noise level : BurnerdB40-4550-60
Burner operating noise level :AugerdB1010
Required chimney draughtPa3030
Recommended fuel Wood pellets, ø 6÷8mm /EN ISO 17225-2:2014/
Temperature safety valve Yes
Photo-sensor Yes
Boiler mounting kit (optional) Yes
Heat-output adjustment Yes
Control of central heating pump / DHW pump Yes
Combustion efficiency / emited heat%99 / 9699 / 96
Weightkg90110
Combustion chamber : DiameterD, ø mmø 290ø 400
LengthE, mm550600
Feeder chute : DiameterG, ø mmø 84ø 84
Movable burner gatePOui
Motor of inner augerMOui
Electric control box with controllerUOui
Pellet auger Eco-XL 300/500 DiameterM, ø mmø 84ø 84
Lengthmm2000 / 4000 / 60002000 / 4000 / 6000
Weightkg7 / 9 / 117 / 9 / 11
Flexible connection (hose) : diameterN, ø mmø 90ø 90
Length mm 800800

For product measurements, they should be read as follows:

Cold water inletA, mmR1¼ "/ 450
Y, mmmG½ "/ 232

A is shown in the previous diagram. "R1¼" and "G½" are the measure in inches of the opening. "R" is male and "G" is female. The measurements in inches indicate the distance between the floor and the opening.
