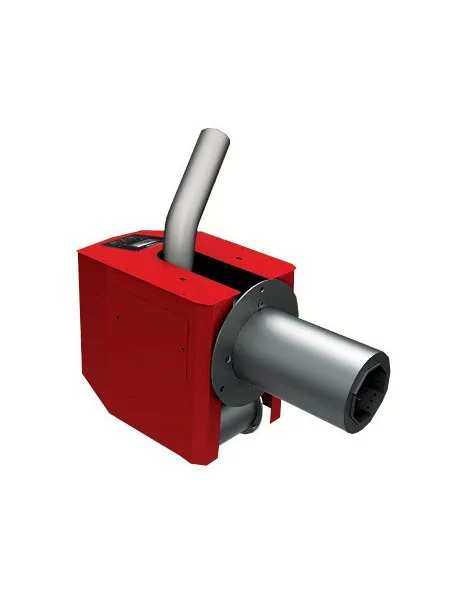

Pellet burner BURNiT Pell View full size

Pellet burner BURNiT Pell

BURNiT

1 698,40 € tax incl.

Options

The BURNiT Pell is a pellet burner for heating boilers. It burns wood-pellets with diameter 6-8 mm and ensures an efficient, low-emission combustion.

Made in EuropeAvailable on order

More details

More info

Pellet burner BURNiT Pell

The BURNiT Pell is a pellet burner for heating boilers. It burns wood-pellets with diameter 6-8 mm and ensures an efficient, low-emission combustion.
Produced of high-grade stainless steel, it withstands temperatures up to 1150°С.
The built-in controller, automatic cleaning system and internal auger manage the burner operation for optimum efficiency.
The burner has to be fitted to boiler.



Warranty : 1 year



Available sizes :

25 kW, 30 kW, 40 kW, 70 kW, 90 kW, 150 kW



Compatibility pellet burner Pell and wood boiler WBS
 WBS 20 - 25 - 30kWWBS 40 à 110kW
Pell 25 kWYesNo
Pell 40 - 70kWNo

Yes







Product Features :

  • Built-in controller:
    Automated ignition and pellet feed;
    Self-cleaning function, activation of 1 to 6 times every 24 hours;
    Controls the operation of central heating pump / buffer tank;
    Controls the operation of  domestic hot water (DHW);

  • Temperature sensor to monitor boiler temperature.

  • Temperature sensor to monitor water heater temperature.

  • Two temperature sensors to monitor buffer tank temperature.

  • An option for chimney fan control.

  • Photo sensor -  monitors the power of the burner flame.

  • Internal auger.

  • The feeder chute allows 360° rotation for its best convenient positioning when connecting the pellet auger to the hopper.

  • Dry contactless resistance heater assuring ignition of fuel.

  • Cleaning system using compressed air.

  • Air feed fan, step-regulated  (0% ÷100 %).





Safety devices :



  • Elbow-shape feeder chute prevents backfire entry from burner into pellet hopper;

  • Thermostatic protection (80°С);

  • Fuse 10А;

  • In case of power interruption, all parameter settings are stored in the memory of the controller.













Pellet burner BURNiT Pell
1. Pellet burner
2. Flexible connection
3. Electric motor
4. Automatic pellet-feeding auger
5. Control unit
6. Feeder chute
7. Casing
8. Combustion chamber housing
9. Combustion chamber
10. Automatic cleaning system








Technical characteristics :



Technic scheme Pellet burner BURNiT Pell





  Pell 25Pell 30Pell 40Pell 70Pell 90Pell 150
Nominal heat outputkW5÷2510÷3010÷4015÷7030÷9050÷150
Burner average power consumption : firing-up modeW400400400400400400
Operate mode / self-cleaning modeW60÷70 / 130060÷70 / 130060÷70 / 130070÷110 / 130070÷110 / 130070÷110 / 1300
Electric power supplymm230 AC/50 Hz
Overall dimensiosn : Height Hmm575575575575575650
Width L / Depth Dmm615 / 245615 / 245450 / 550450 / 550500 / 600500 / 800
Min. recommended size of boiler combustion chamber : Heightmm250350350350500500
Min. recommended size of boiler combustion chamber :Width / Depthmm250 / 390390 / 550450 / 550450 / 600500 / 600500 / 800
Burner operating noise level : burner / augerdB40-45 / 1040-45 / 1040-45 / 1040-45 / 1040-45 / 1040-45 / 10
Burner operating noise level : cleaning systemdB65-6765-6765-6765-6765-6765-67
Required chimney draughtPa/mbar25 / 0.2525 / 0.2527 / 0.2730 / 0.3032 / 0.3240 / 0.40
Recommended fuel Wood-pellets, ø 6÷8 mm /EN 14961-2:2011/
Air feed fan, step regulated 0% ÷ 100%0% ÷ 100%0% ÷ 100%0% ÷ 100%0% ÷ 100%0% ÷ 100%
Photo-sensor Yes
Boiler mounting kit (optional) Yes
Heat-output adjustment Yes
Pump control Controls the operation of central heating pump / domestic hot water pump
Combustion efficiency / emited heat%99/9699/9699/9699/9699/9699/96
Weightkg172123262832
Burner body : length / widthA / B mm390 / 245390 / 245390 / 245390 / 245390 / 245390 / 330
Burner body : heightC, mm360360360360360410
Combustion chamber : diameterD, ø mmø 140ø 140ø 170ø 170ø 170ø 210
Combustion chamber :lengthE, mm220220300340340340
Feeder chute : diameterG, ø mmø 60ø 60ø 60ø 60ø 60ø 60
Feeder chute : lengthI, mm250250250250250250
Automatic cleaning systemPYes
Built-in controllerUYes
Pelet auger : diameterM, ø mmø 75
Pelet auger : lengthmm1500 / 2000 / 3000
Pelet auger : weightkg5.5 / 7 / 8
Flexible connection (hose) : diameterN, ø mmø 60ø 60ø 60ø 60ø 60ø 60
Flexible connection (hose) : lengthN, mm700700700700700700

For product measurements, they should be read as follows:

Cold water inletA, mmR1¼ "/ 450
Y, mmmG½ "/ 232

A is shown in the previous diagram. "R1¼" and "G½" are the measure in inches of the opening. "R" is male and "G" is female. The measurements in inches indicate the distance between the floor and the opening.
