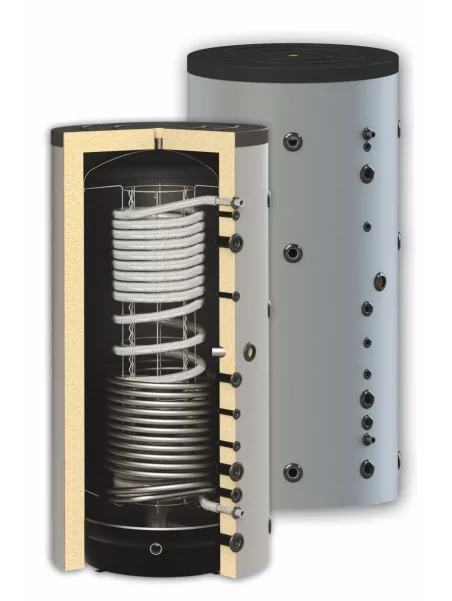

Water heater combi 500-1500L HYG B - with coil
More info
Combi tank HYG BR - with one coil
To produce and accumulate sanitary hot water and hot water for space-heating system.
Coil-in-Tank construction- Flexible stainless-steel coil for sanitary hot water + Buffer tank powering space-heating system.
Sanitary water heats up instantaneously as it flows through the large surface stainless coil. Thus water is delivered hot while still fresh and clean of depositions. Allows utilization of up to three external heat sources and an optional electric heating element.
Modifications and sizes, Liters :
500, 800, 1000, 1500L
Product features :
- Removable High efficiency insulation with thickness 100 mm and outer casing of PVC with RAL9006 color
- Multi-position mounting of temperature sensor
- Complex corrosion protection of DHW (domestic hot water) tank realized by means of titanium enamel and two anode protectors
- All threads are internal
- Easy installation
- Optional kit for electric heating with nominal power 3kW; 4.5kW
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class Е - capacity from 600 to 1500 Liters.
Warranty : 3 years
1. Aesthetic PVC jacket with color RAL 9006
2. Insulation
3. Water tank of low-carbon steel
4. DHW tank made of low carbon steel coated with titanium enamel (DIN 4753-3)
5. Anode protector (DIN 4753-6)
6. Safety valve, 8 bar
Technical specification :
HYG BR | 500 | 800 | 1000 | 1500 | |
Capacity | L | 500 | 800 | 1000 | 1500 |
Capacity of Buffer tank / DHW tube | L | 480/20 | 775/25 | 975/25 | 1464/36 |
Height h -without / h, with insulation | mm | 1700 / 1750 | 1840 / 1890 | 2040 / 2090 | 2170 / 2220 |
Min. vertical clearance | mm | 1720 | 1865 | 2074 | 2262 |
Diameter D ø without / with insulation ø | mm | ø 650 / 850 | ø 790 / 990 | ø 790 / /990 | ø 1000 / 1200 |
Surface of DHW tube | m² | 5.06 | 6.11 | 6.11 | 8.93 |
Lower heat exchange coil S1 | |||||
Heat exchange surface | m² | 1.6 | 2.3 | 2.48 | 3.4 |
Coil capacity | L | 9.8 | 14 | 15.2 | 20.65 |
Coil : operating pressure / Max. temperature | bar/°C | 16/110 | 16/110 | 16/110 | 16/110 |
Buffer tank : operating pressure / Max. temperature | bar/°C | 3/95 | 3/95 | 3/95 | 3/95 |
DHW tube : operating pressure / Max. temperature | bar/°C | 6/95 | 6/95 | 6/95 | 6/95 |
Continuous outflow 10/45°C, buffer tank is charged to 65°C | L/h | 1080 | 1840 | 1840 | 2800 |
Continuous outflow 10/38°C, buffer tank is charged to 65°C | L/h | 1350 | 2300 | 2300 | 3500 |
Recommended boiler size, connected to the buffer | kW | 44 | 75 | 75 | 114 |
Single discharge capacity (up to 38°C) when the buffer is charged to 60°C | L | 375 | 580 | 790 | 1150 |
DeltaT - difference b/n buffer and DHW at flow rate 30/40/50 l/min | K | 6 / /8 /12 | 3.5 / 5 / 8 | 3.5 / 5 / 8 | 2 / 3 / 5 |
Water stratification unit | ø, mm | ø 140 | ø 140 | ø 140 | ø 140 |
Thermometer | Optional | ||||
Electric heater (optional) | kW | 3 / 4.5 / 6 / 7.5 | |||
Weight / insulation | kg | 150 / 12.3 | 170 / 16.4 | 200 / 18 | 290 / 23.2 |
Boiler heat carrier outlet | A, mm G1½" | 150 | 170 | 170 | 235 |
Boiler heat carrier outlet | B, mm G1½" | 150 | 170 | 170 | 235 |
Boiler heat carrier outlet | C, mm G1½" | 150 | 170 | 170 | 235 |
Outlet lower coil S1 | D, mm G1" | 325 | 350 | 390 | 445 |
Boiler heat carrier | E, mm G1½" | 430 | 470 | 500 | 690 |
Sensor sleeve | F, mm G½" | 540 | 590 | 620 | 800 |
Sensor sleeve | G, mm G½" | 650 | 710 | 770 | 920 |
Inlet lower coil S1 | H, mm G1" | 775 | 845 | 930 | 1045 |
Boiler heat carrier / electric heating element | I, mm G1½" | 900 | 930 | 1050 | 1280 |
Sensor sleeve | K, mm G½" | 1140 | 1160 | 1320 | 1520 |
Sensor sleeve | L, mm G1" | 1420 | 1520 | 1700 | 1790 |
Heat carrier inlet | M, mm G1½" | 1360 | 1410 | 1570 | 1720 |
Boiler heat carrier inlet | N, mm G1½" | 1450 | 1550 | 1740 | 1820 |
Boiler heat carrier inlet | O, mm G1½" | 1450 | 1550 | 1740 | 1820 |
Air vent | P, mm G1½" | 1700 | 1840 | 2040 | 2170 |
Boiler heat carrier | R, mm 3/4" | 1030 | 1050 | 1210 | 1405 |
Boiler heat carrier | S, mm G1½" | 1030 | 1050 | 1210 | 1405 |
Hot water outlet HYG | T, mm G1" | 1480 | 1590 | 1790 | 1850 |
Cold water inlet HYG | U, mm G1" | 1480 | 1590 | 1760 | 1850 |
